Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Remove the transfer control actuator. Refer to "EXPLODED VIEW "
Shift transfer assembly into AUTO as follows.

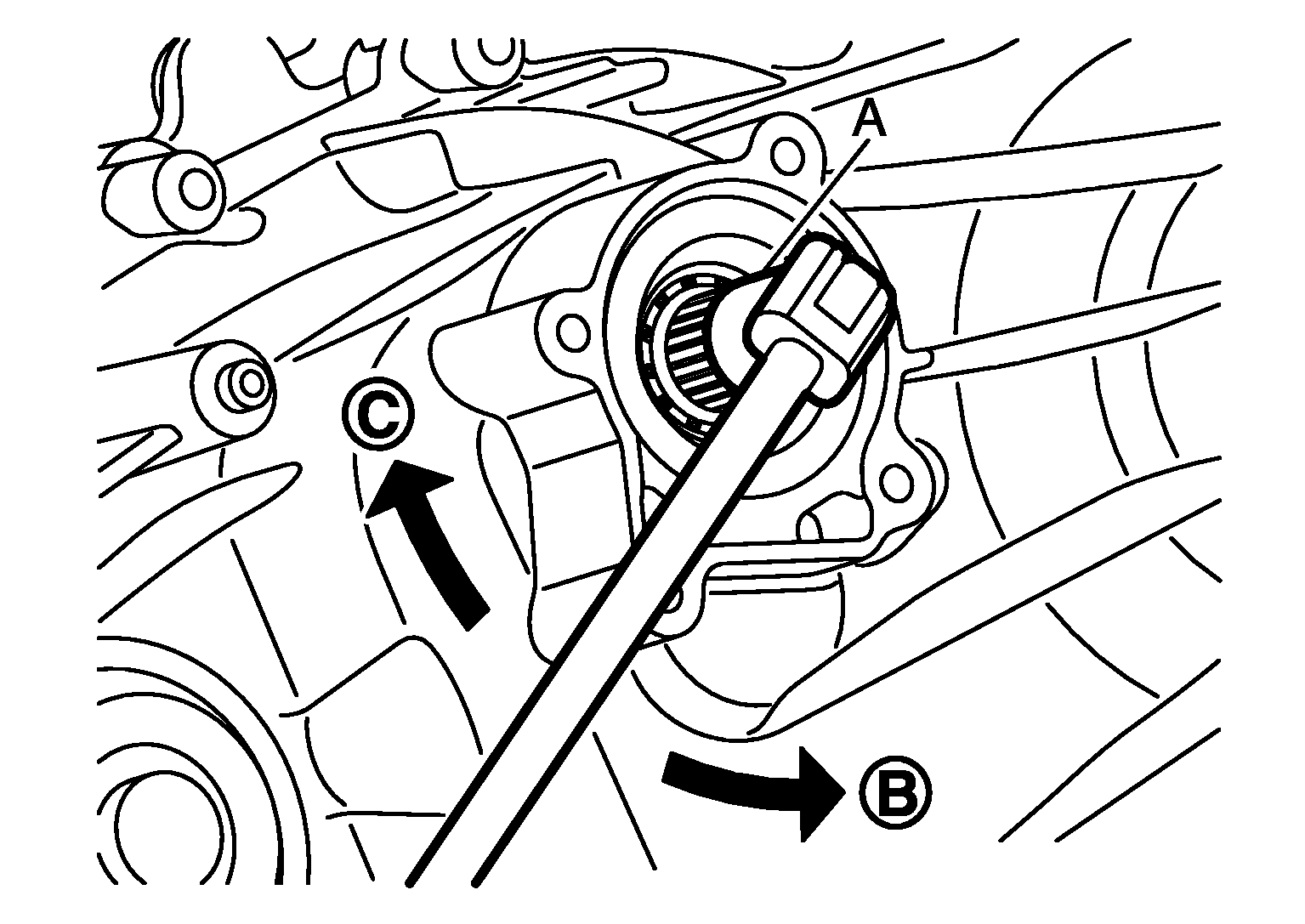

1. Install the spline socket (A) [SST: KV10119400 (-)] to transfer assembly in the figure.
2. Turn the shaft (B) direction and remove the spline socket at a position returning to (C) direction by spring power.

  Fig 1: Installing Spline Socket
  Courtesy of NISSAN MOTOR CO., U.S.A.

  CAUTION: The maximum turning force shall be 30 N.m (3.1 kg-m, 22 ft-lb).
3. Check that the surface fitting transfer rotary position sensor to transfer assembly is in the figure.

  Fig 2: Checking Transfer Rotary Position Sensor Fitting Surface
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the transfer rotary position sensor.
CAUTION:

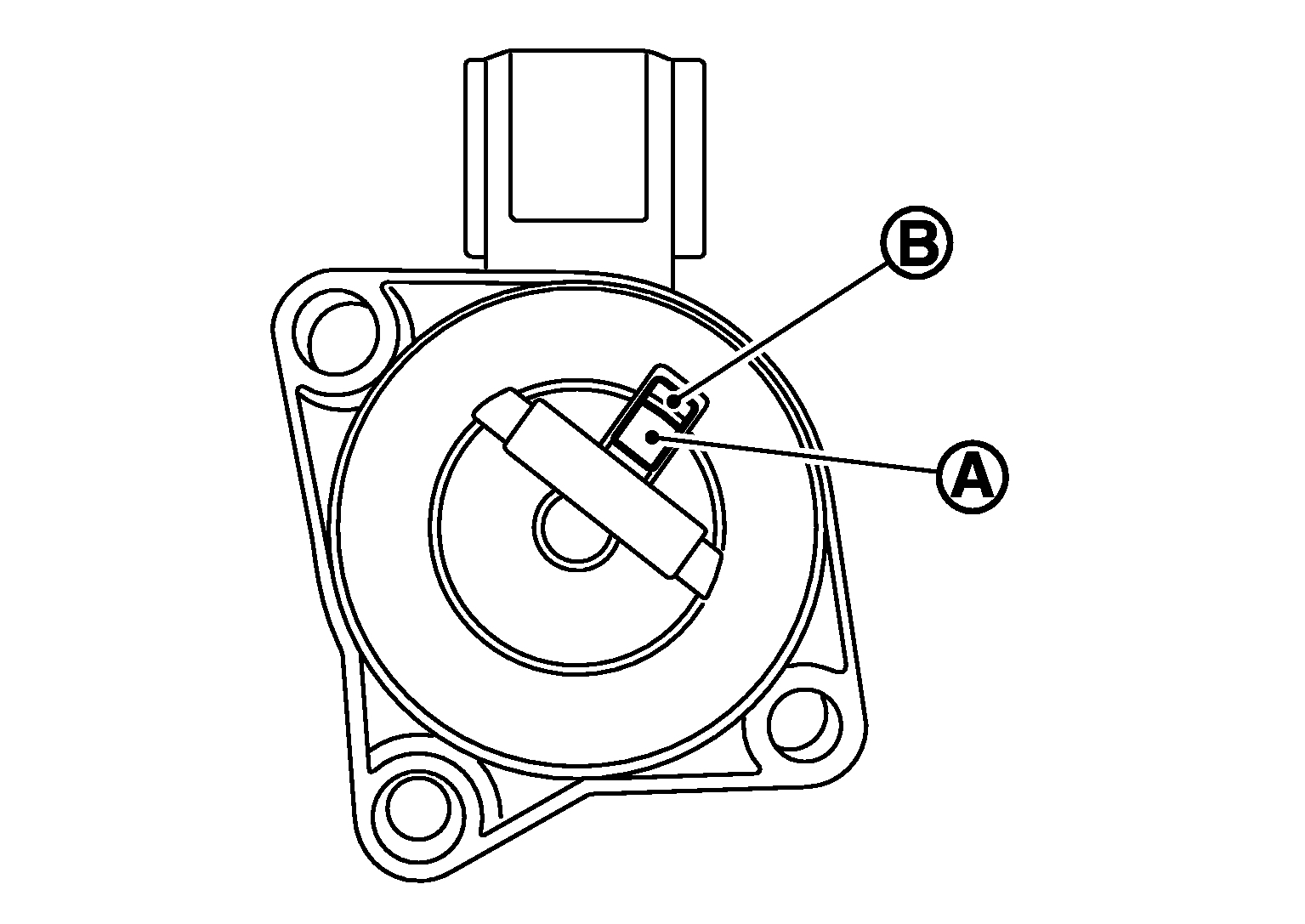

- Check that part (A) of transfer rotary position sensor is in the position (B).
- Never damage O-ring of transfer rotary position sensor.
Connect transfer rotary position sensor connector.
Install the transfer control actuator. Refer to "EXPLODED VIEW ".
Perform inspection after installation. Refer to "INSPECTION ".
When replacing the transfer rotary position sensor, perform learning of transfer rotary position sensor. Refer to "WORK PROCEDURE ".

Fig 3: Identifying Sensor Position
Courtesy of NISSAN MOTOR CO., U.S.A.
