Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install rear oil seal, with a drift (A) [SST: KV40104710 (- ] within the dimension (L) show as follows.
L : 2.8 - 3.2

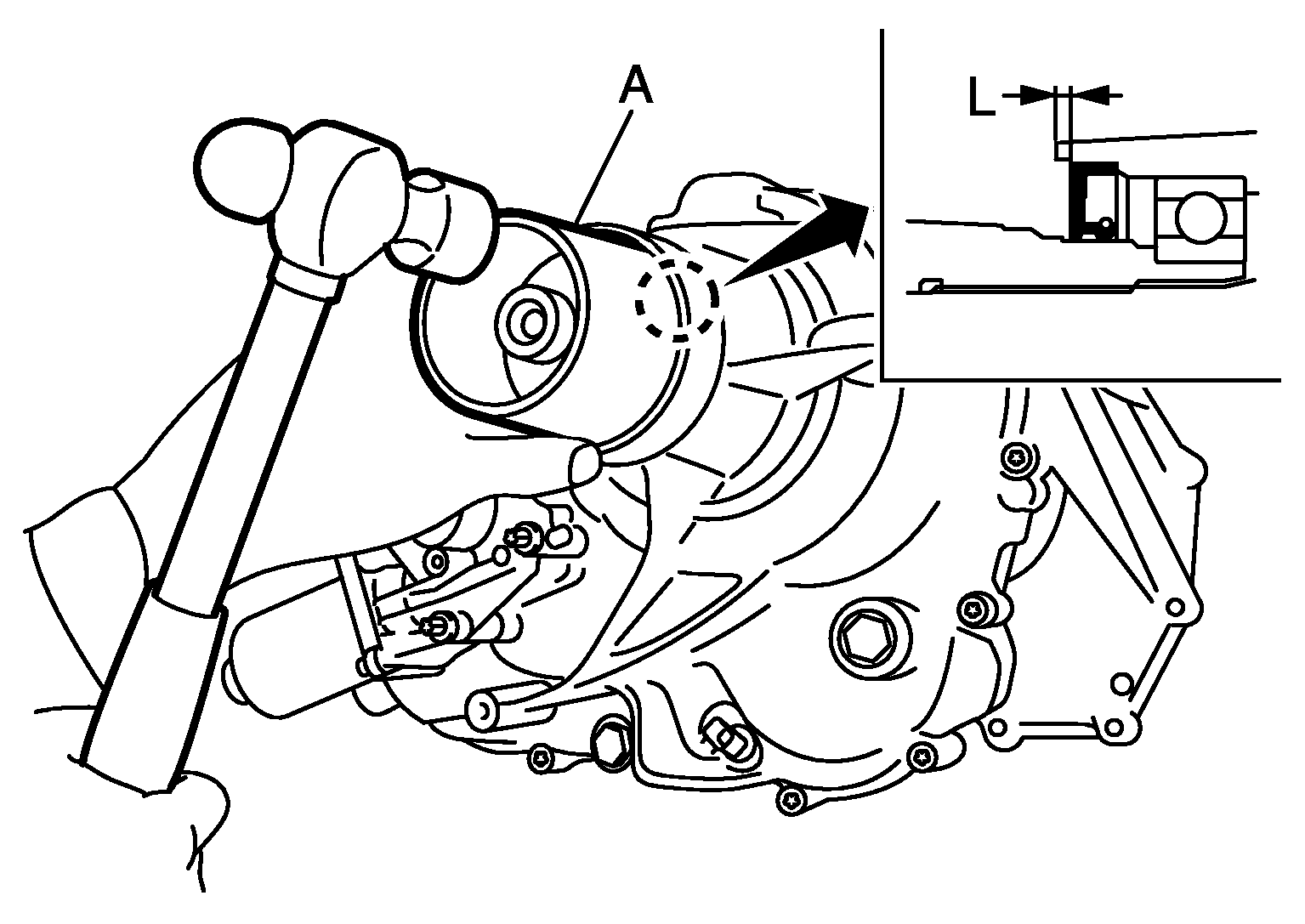

Fig 1: Installing Rear Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Never reuse front oil seal.
- Apply transfer fluid onto circumference of oil seal.
Install the dust shield to the rear companion flange.
Install the rear companion flange to main shaft.
CAUTION:
- Align the matching marks (A) of main shaft and rear companion flange.

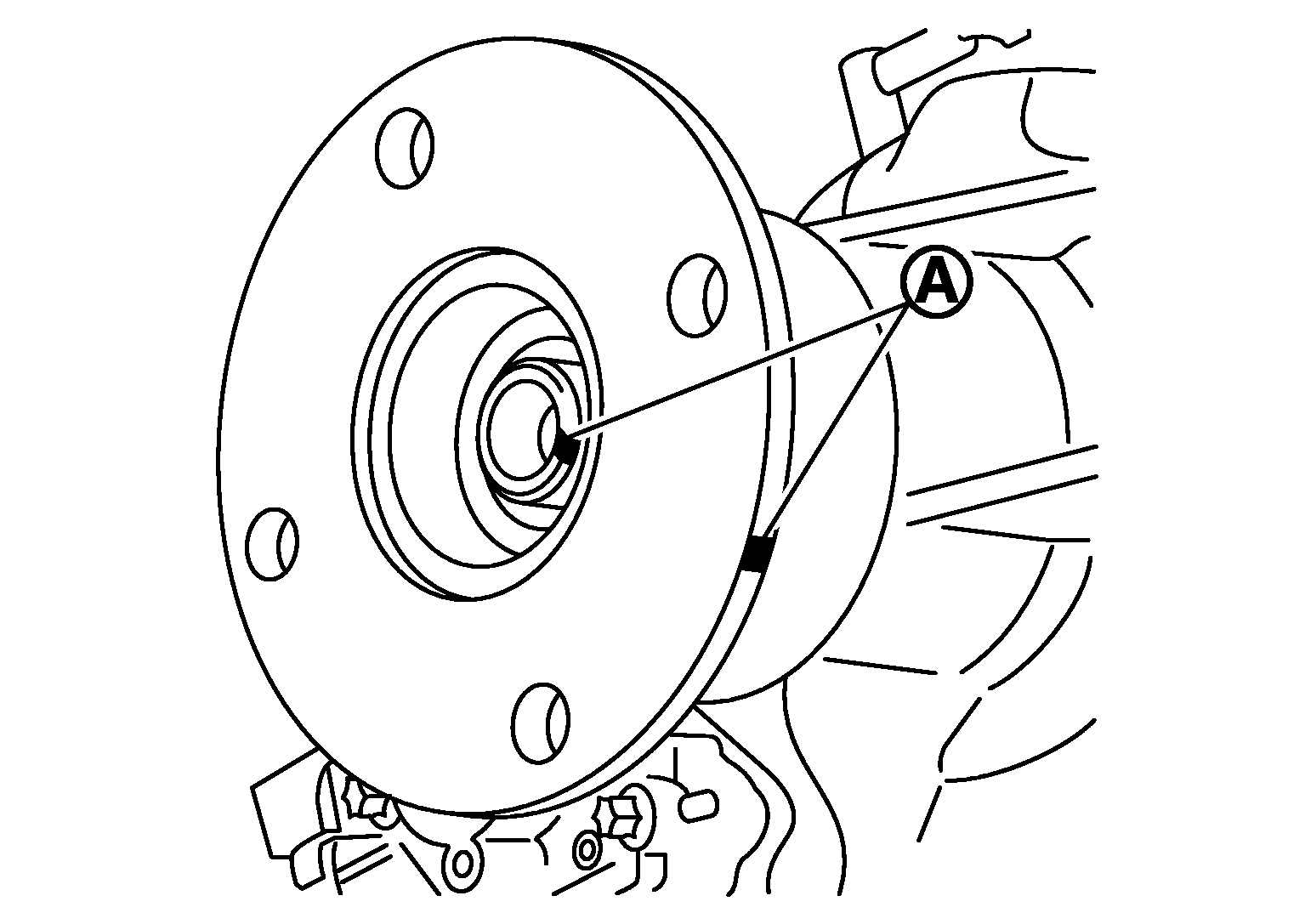

  Fig 2: Identifying Matching Marks On End Of Main Shaft And Rear Companion Flange
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install bolt (A) (M12x1.75 mm) to main shaft, then install the rear companion flange by hammering while pulling the bolt.

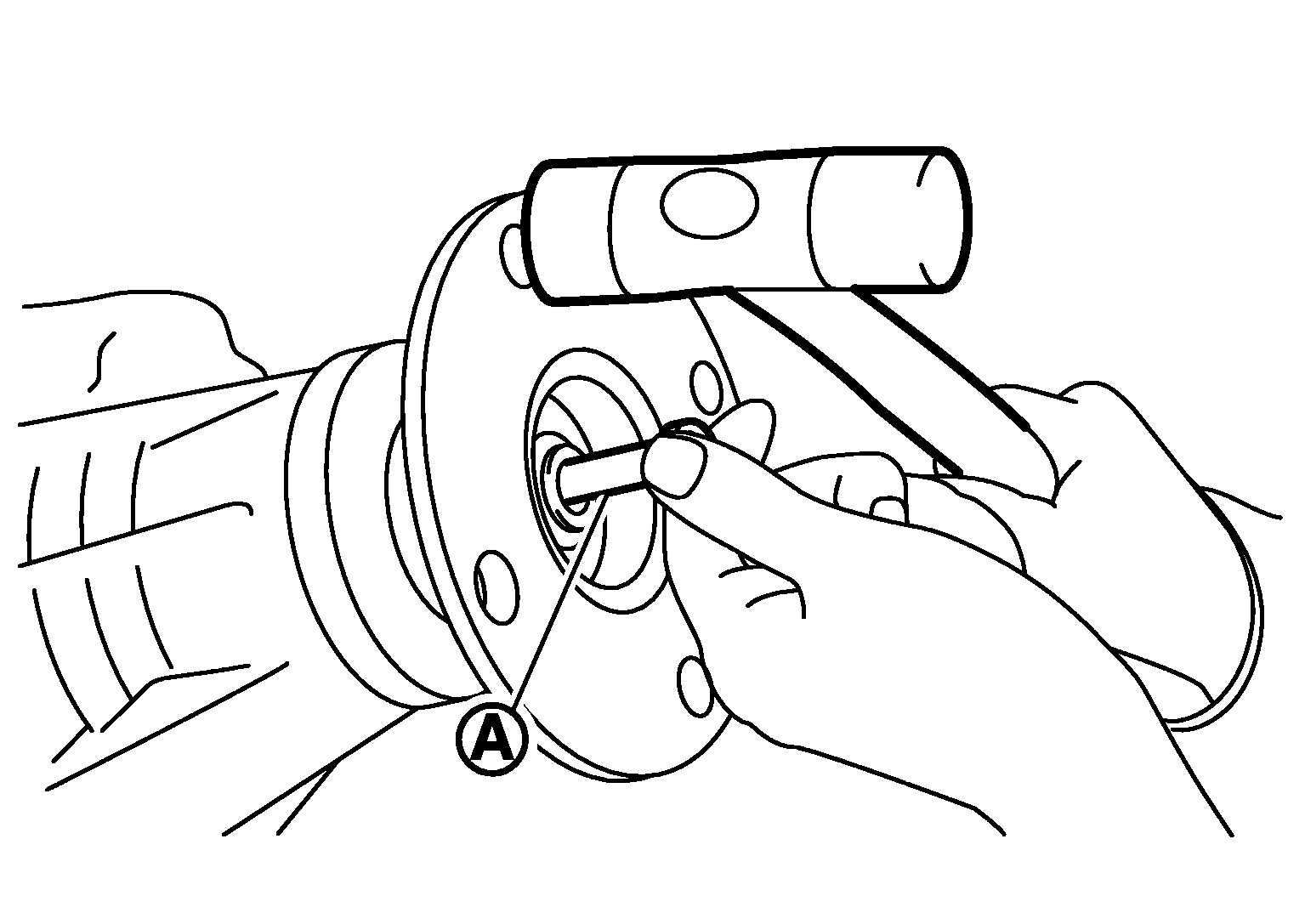

  Fig 3: Installing Bolt
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the O-ring (3) to gap between rear companion flange (1) and main shaft (2).
CAUTION:
- Never reuse the O-ring.
- Never damage the O-ring.

  Fig 4: Identifying O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Select adjusting shim. Refer to "ADJUSTMENT ".
Install adjusting shim.
Install the snap ring.
Install the rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Check fluid level and for fluid leakage. Refer to "INSPECTION ".
