Adjusting Shim

WARNING: This page is about a different variant/trim than selected.

Remove the snap ring.
Remove the adjusting shim.
Remove the O-ring.
Install the thinnest adjusting shim.
Install the snap ring to main shaft.
Install the bolt (A) (M12x1.75 mm) to main shaft, then hummer the rear companion flange while pulling the bolt.

Fig 1: Installing Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Fit a dial indicator onto the end of main shaft.
Check the clearance between rear companion flange and main shaft during pushing the bolt (A) at direction.
Use the formula below to calculate adjusting shim thickness.

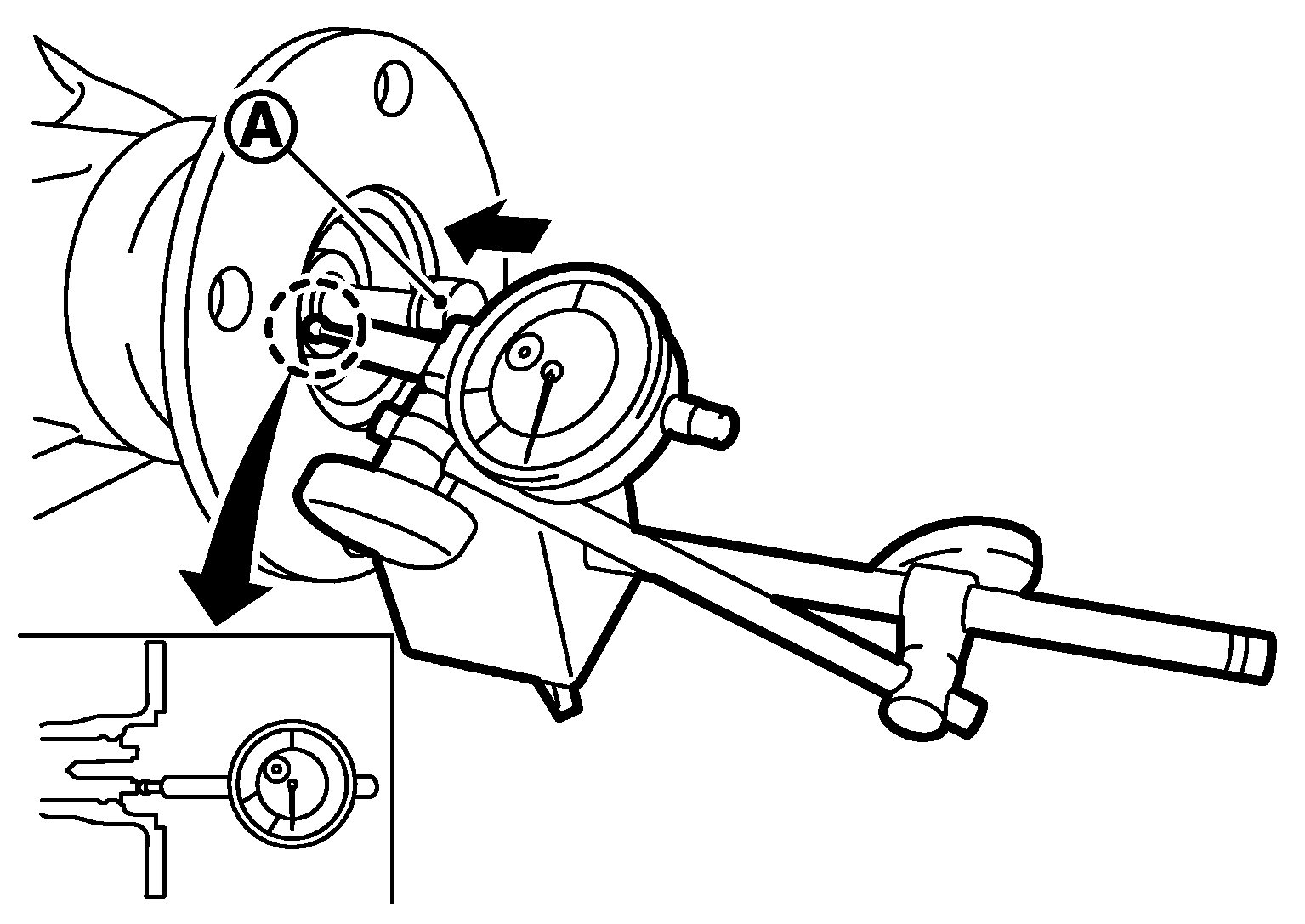

Fig 2: Checking Clearance Between Rear Companion Flange And Main Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

Shim selection equation:

T = T0 + (C - 0.1)

T: Correct shim thickness

T0: The thinnest shim thickness

C: Measured clearance between rear companion flange and main shaft

CAUTION: Adjusting shim thickness is in step of 0.1 mm. When a calculation result includes the second decimal place, it must be rounded down.

Example:

T = 2.1 + (0.34 - 0.1) = 2.34

T0: 2.1

C: 0.34

Calculated value... T = 2.34 mm

Used shim... T = 2.3 mm
Select the proper adjusting shim. For selecting adjusting shim, refer to the latest parts information.
