Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.

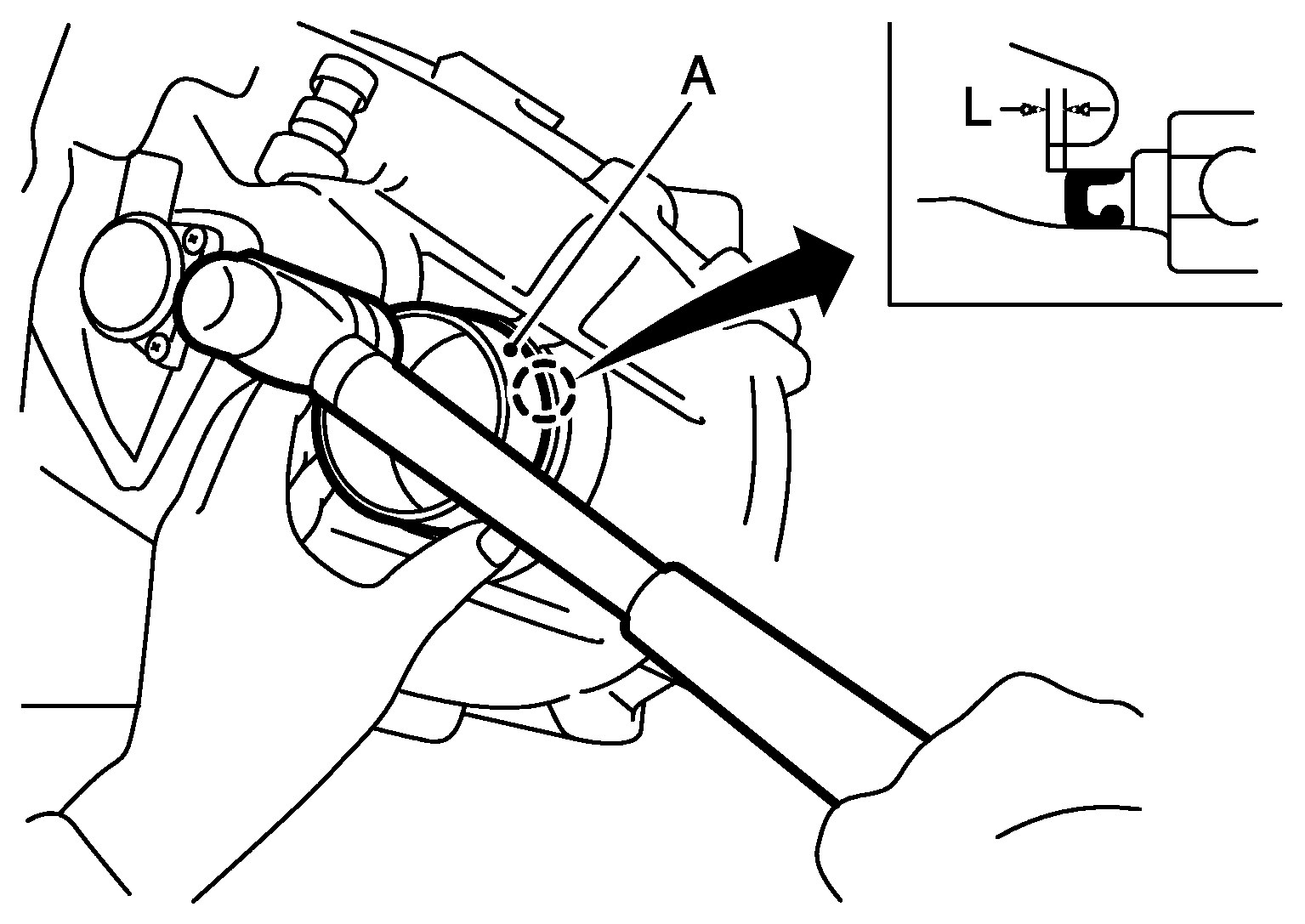

- Install front oil seal with a drift (A) (commercial service tool) within the dimension (L) shown as follows.
L : 5.3 - 5.7 mm
CAUTION:- Never reuse front oil seal.
- Apply transfer fluid onto circumference of oil seal.
- Install the dust shield to the front shaft flange.
- Install the front shaft flange.
- Install the snap ring.CAUTION: Never reuse the snap ring.
- Install the O-ring to plug.CAUTION:
- Never reuse the O-ring.
- Never damage the O-ring.
- Tighten the plug to specified torque.
- Install front propeller shaft. Refer to "REMOVAL AND INSTALLATION "".
- Fill with new transfer fluid, check fluid level and for fluid leakage. Refer to "INSPECTION ".
