Transfer Fluid: Refilling

WARNING: This page is about a different variant/trim than selected.

Remove filler plug (1). Fill up with new transfer fluid up to mounting hole for the filler plug.
Fluid grade and Viscosity : Refer to "FLUIDS AND LUBRICANTS ".

Fluid capacity : Refer to "GENERAL SPECIFICATIONS ".

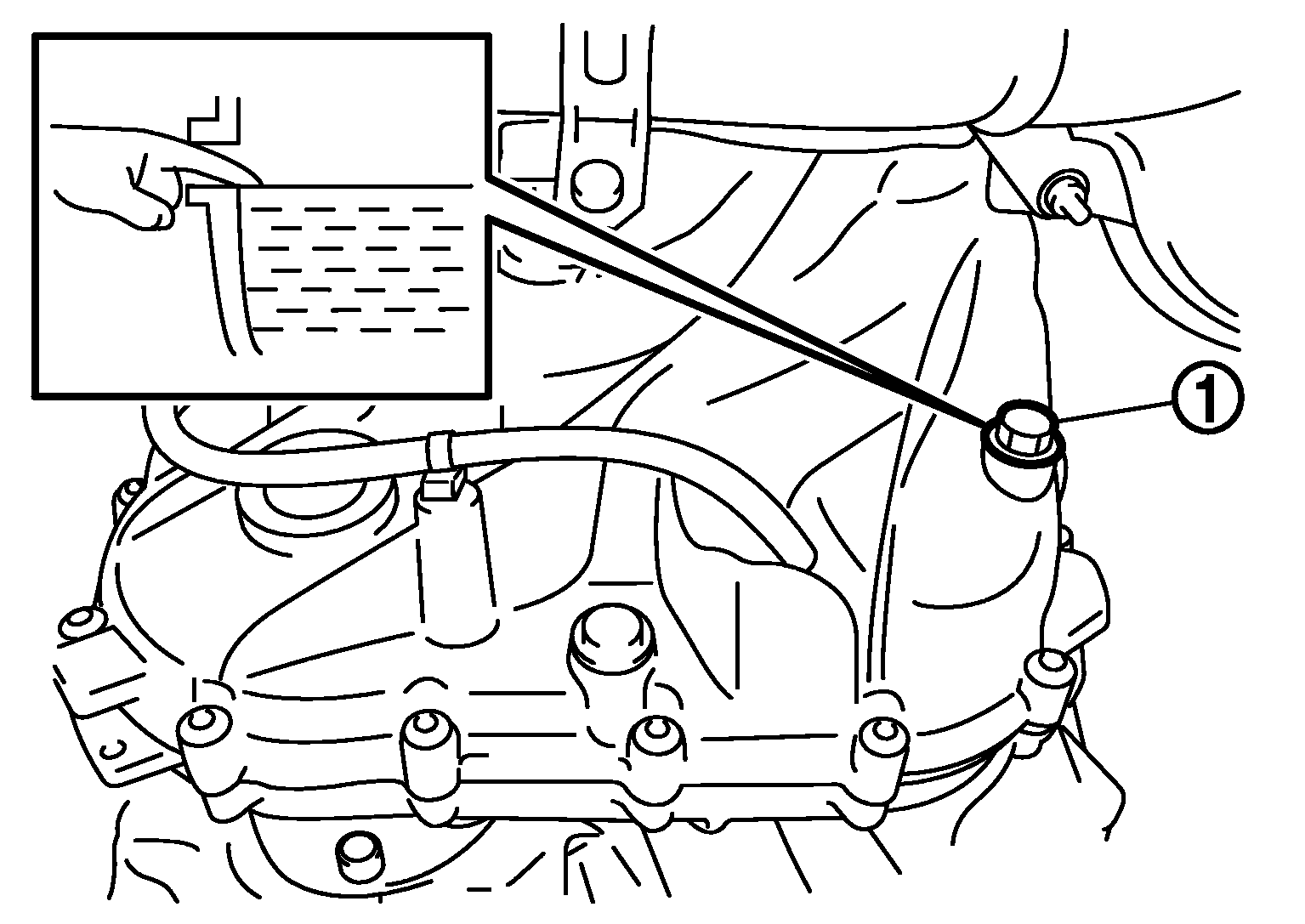

Fig 1: Identifying Filler Plug
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque.
Specified torque : 33 N.m (3.4 kg.m, 24 ft. lb.)

CAUTION: Never reuse gasket.
Perform learning of transfer fluid viscosity. Refer to "WORK PROCEDURE ".
