Wiring Diagram - IGNITION POWER SUPPLY -

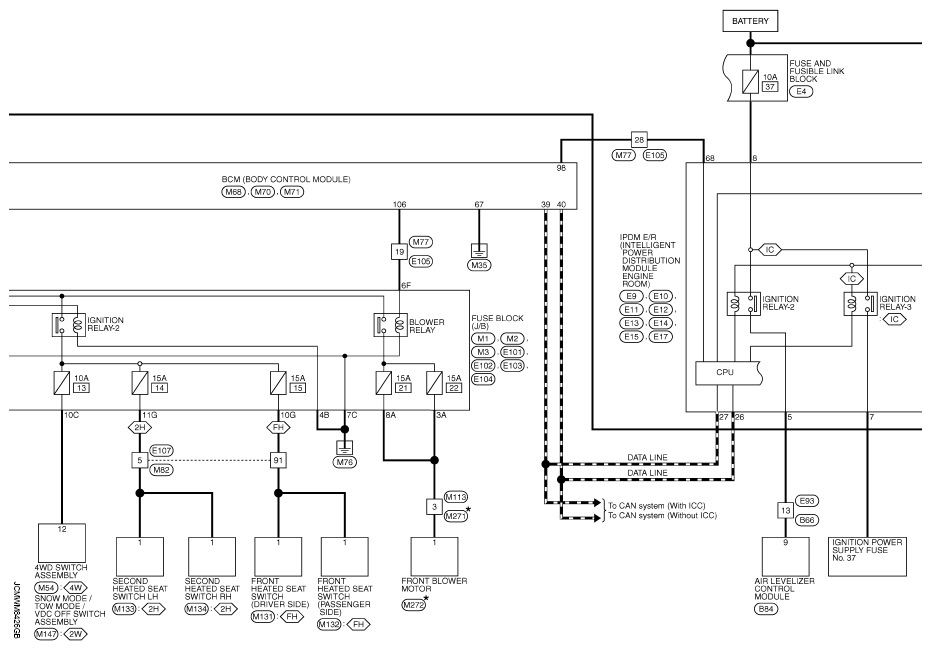

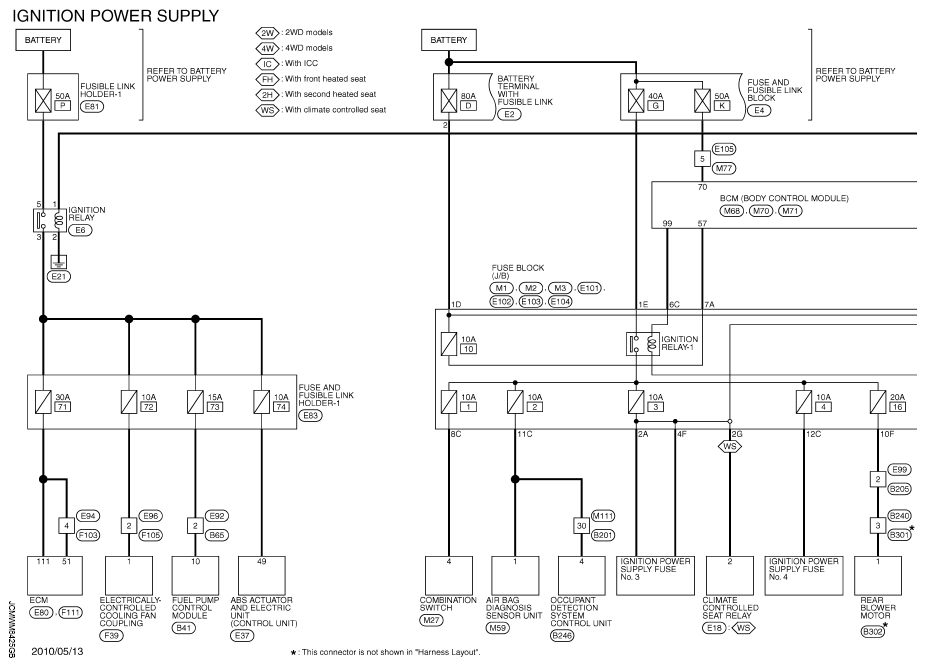

Fig 1: Ignition Power Supply - Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

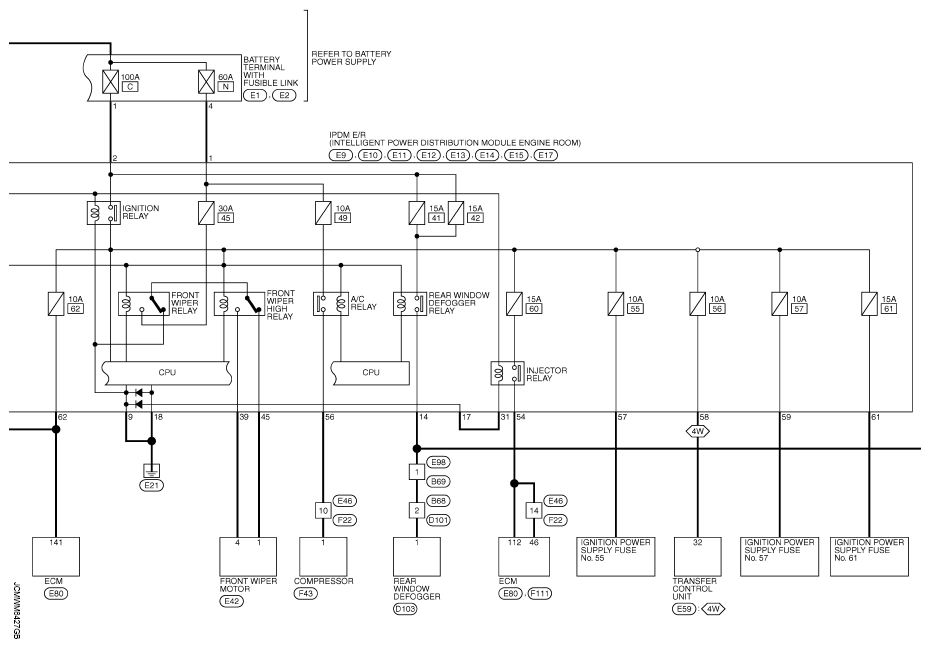

Fig 2: Ignition Power Supply - Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Ignition Power Supply - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Ignition Power Supply - Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

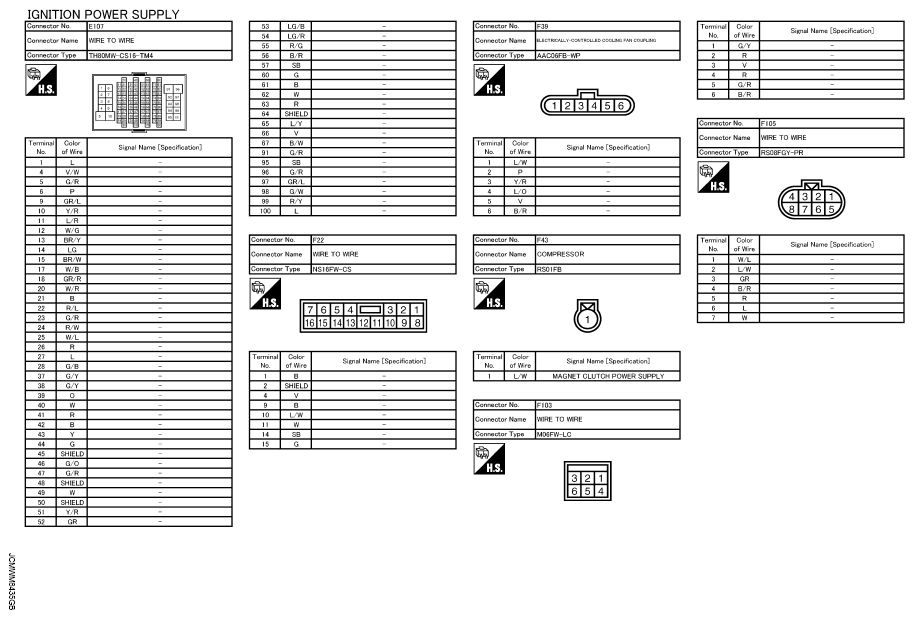

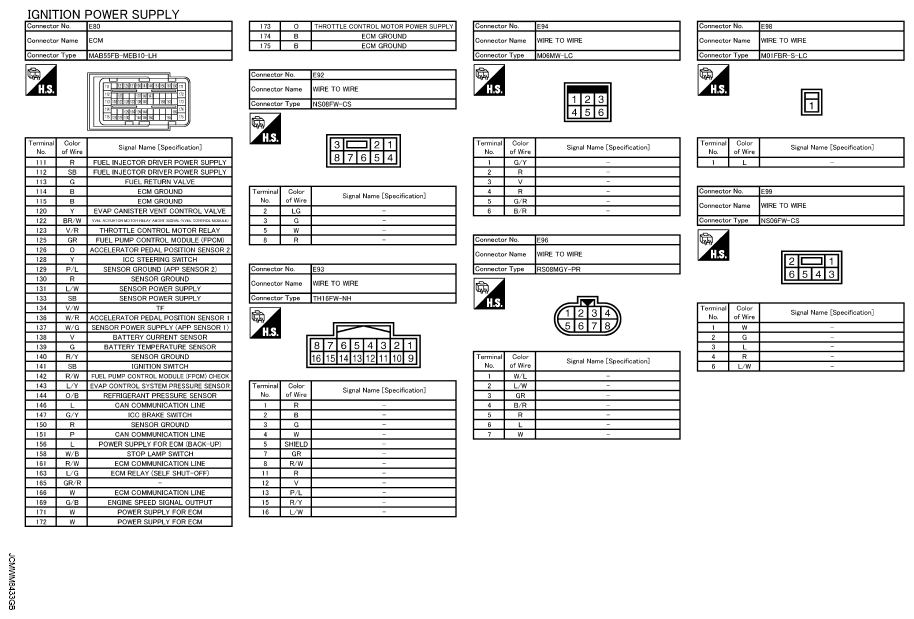

Fig 5: Identifying Ignition Power Supply Connectors (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

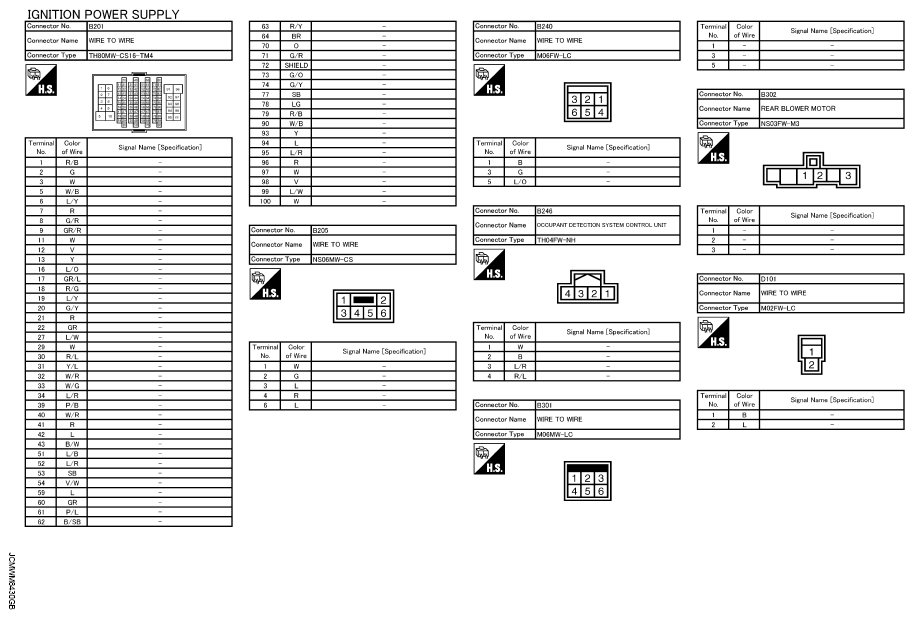

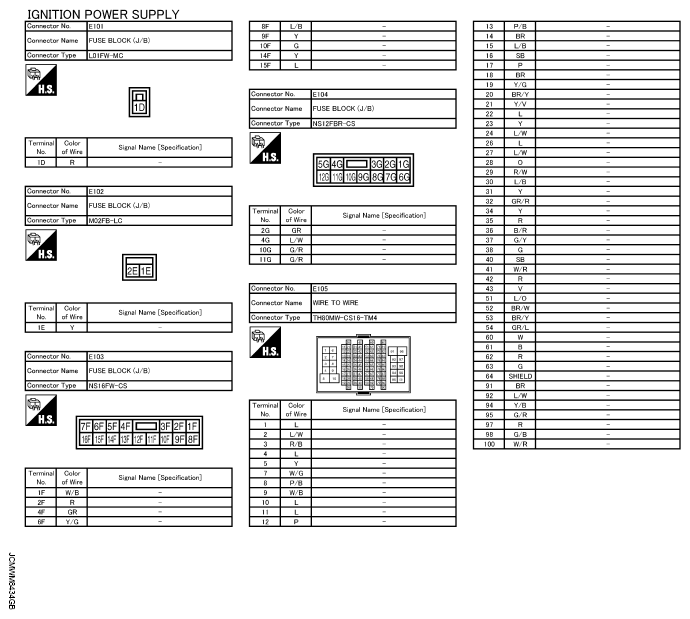

Fig 6: Identifying Ignition Power Supply Connectors (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

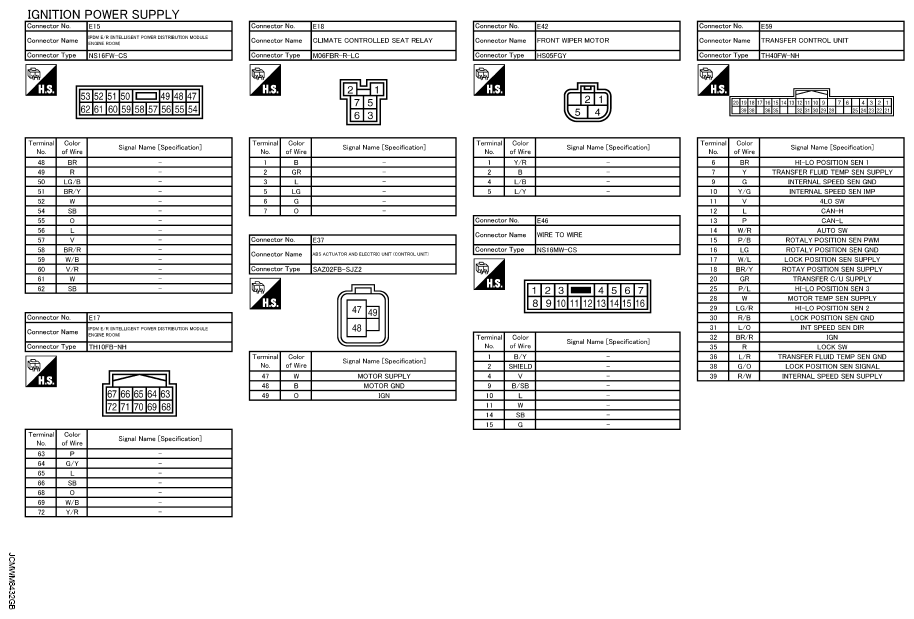

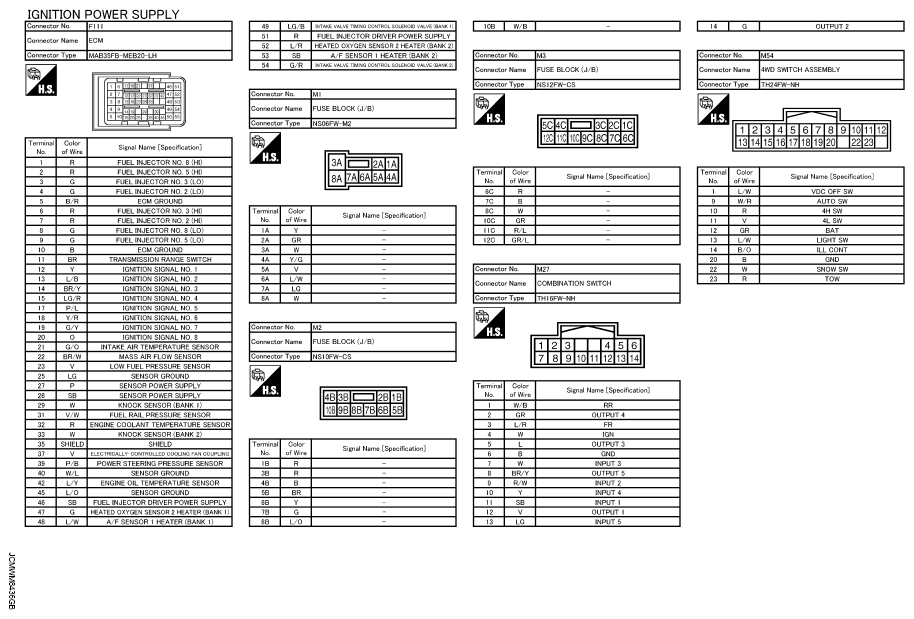

Fig 7: Identifying Ignition Power Supply Connectors (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

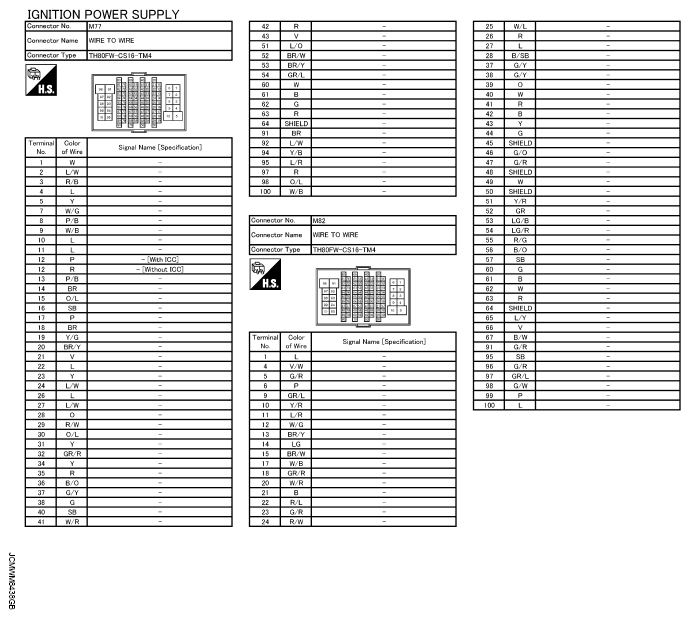

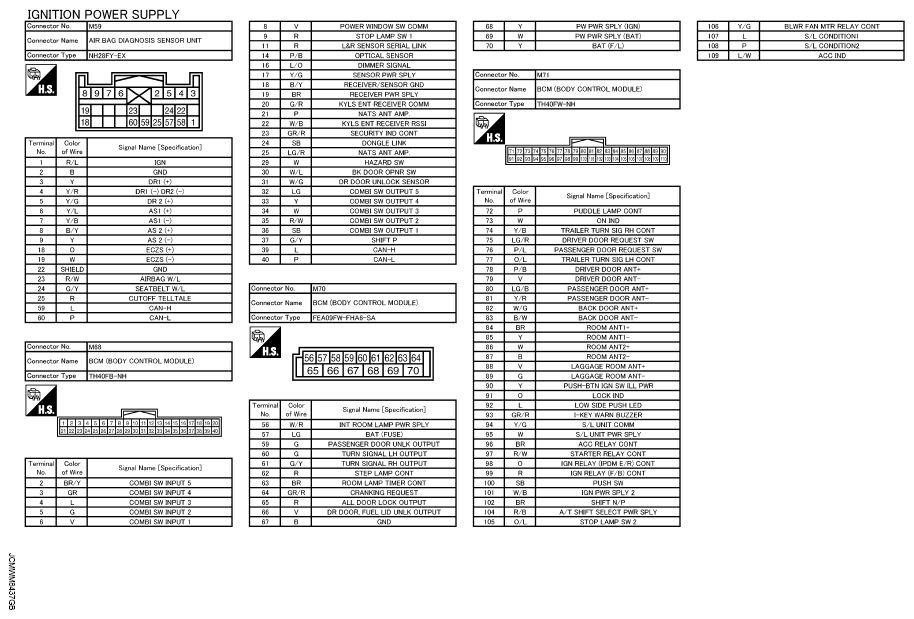

Fig 8: Identifying Ignition Power Supply Connectors (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

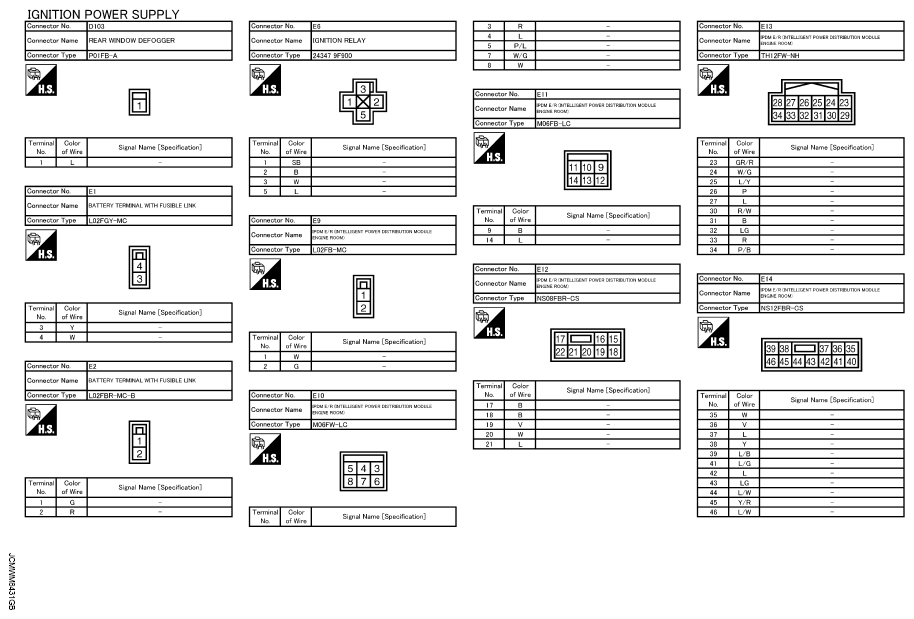

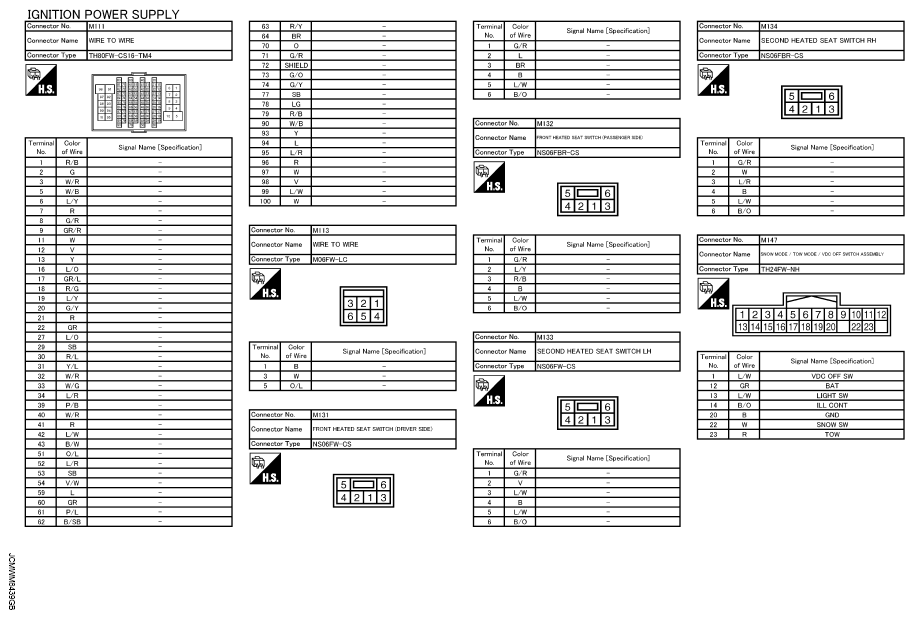

Fig 9: Identifying Ignition Power Supply Connectors (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

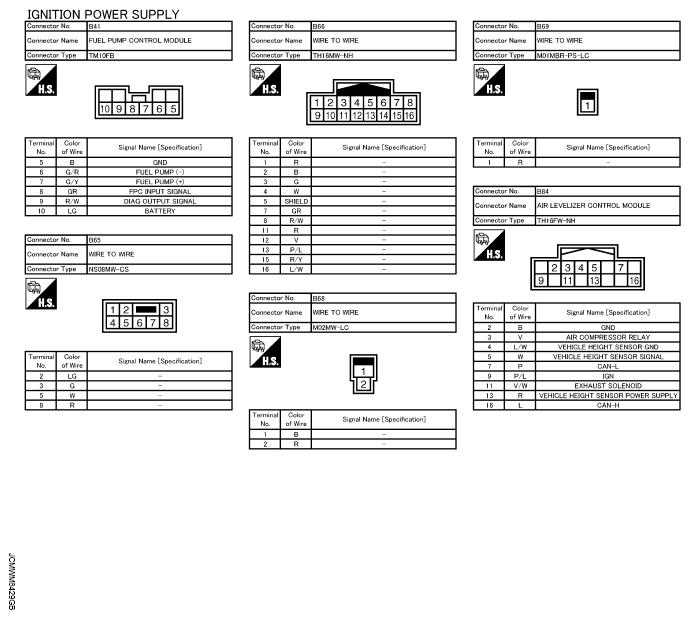

Fig 10: Identifying Ignition Power Supply Connectors (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Ignition Power Supply Connectors (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Ignition Power Supply Connectors (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Ignition Power Supply Connectors (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Ignition Power Supply Connectors (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Ignition Power Supply Connectors (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Ignition Power Supply Connectors (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
