Exploded View: Notes

REMOVAL

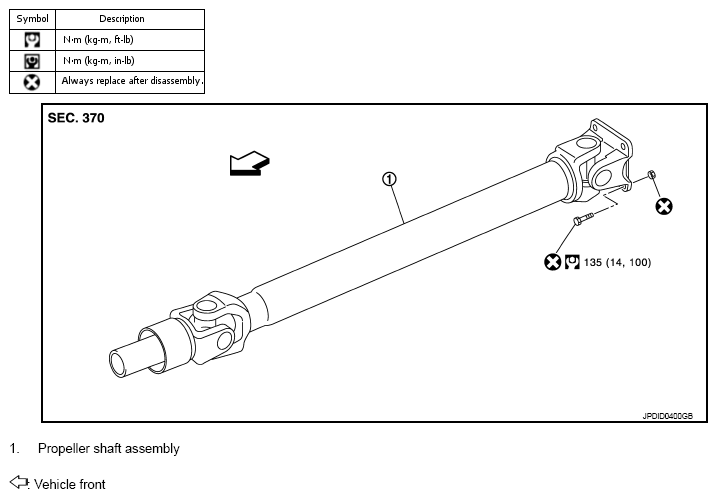

Fig 1: Rear Propeller Shaft Replacement Components With Torque Specifications

G07023614

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
