Exploded View: Disassembly

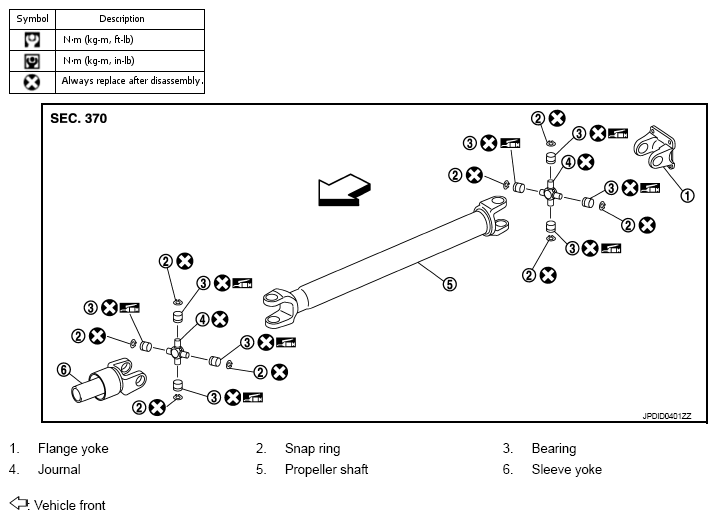

Fig 1: Disassembled View Of Rear Propeller Shaft

G07023615

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
