Disassembly and Assembly: Disassembly

  1. Put a matching mark between propeller shaft and flange yoke as shown in the figure.
    CAUTION: For matching mark, use paint. Never damage the surface.
    Fig 1: Identifying Matching Marks On Front Propeller Shaft And Flange Yoke
    G07023619Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove snap ring.
    Fig 2: Identifying Snap Ring
    G07023620Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Lightly tap bottom of yoke using a copper hammer and remove journal bearing.
    CAUTION: Never damage the yoke.

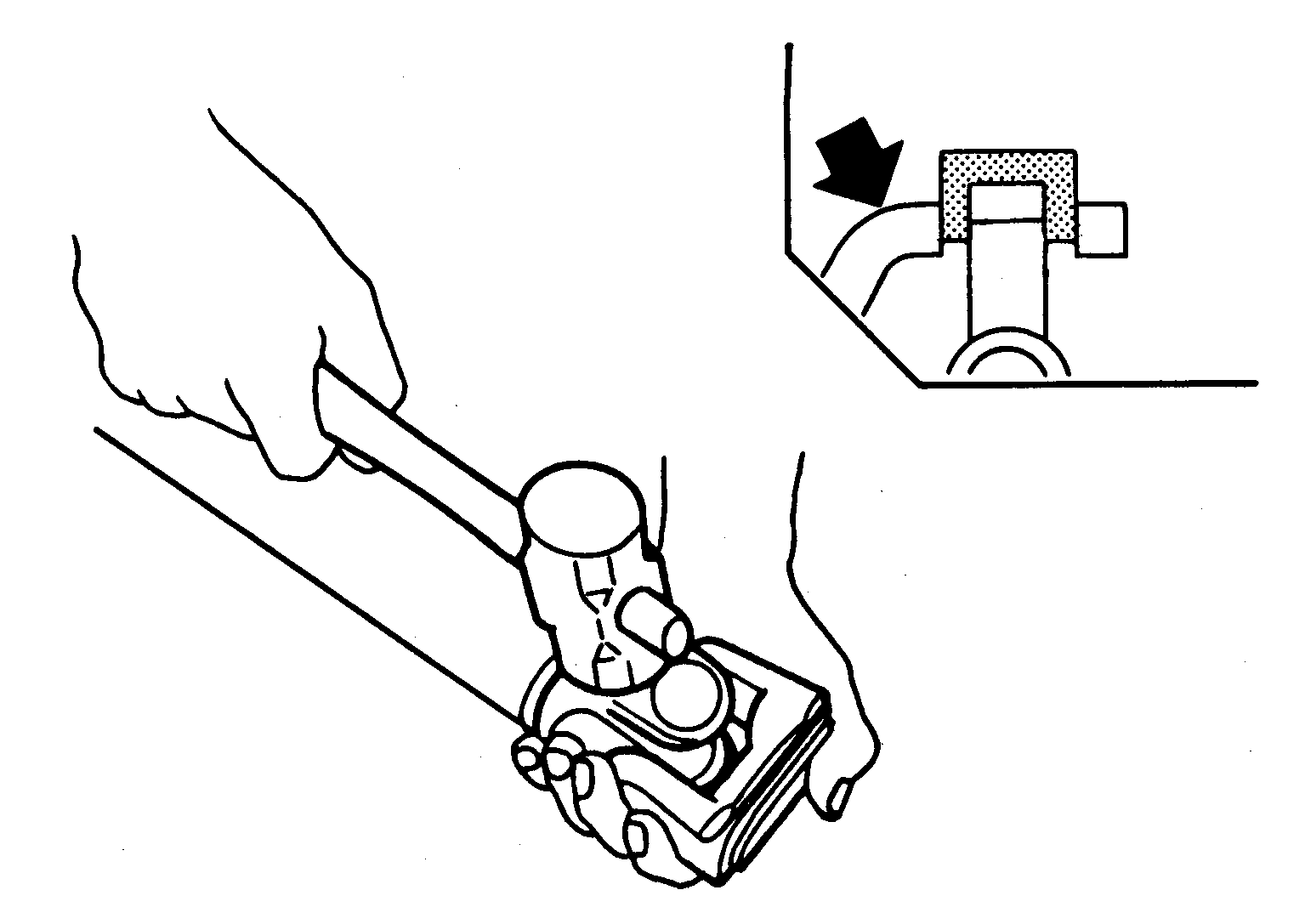

    Fig 3: Removing Journal Bearing
    G07023587Courtesy of NISSAN MOTOR CO., U.S.A.
