Removal and Installation: Removal

  1. Remove instrument lower cover.
    1. Pull disengaged pawls downward.
    2. Pull back instrument lower cover.
    3. Disconnect harness connectors.
      Fig 1: Removing Instrument Lower Cover
      G07025514Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove console finisher assembly.
    1. Put front seat to rearmost position.
    2. Pull console finisher assembly, upward to disengage from center console assembly.
    3. Disconnect harness connectors.

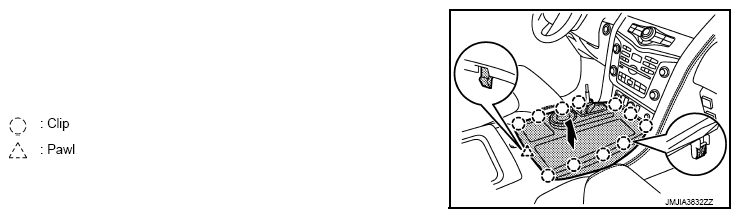

      Fig 2: Removing Console Finisher Assembly
      G07025515Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove instrument center finisher RH.
    1. Pull the instrument center finisher RH lower side, and then disengage the fixing clip.
      Fig 3: Removing Instrument Center Finisher RH
      G07025516Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Pull back instrument center finisher RH, and then disengage metal clips.
    3. Disengage instrument center finisher RH fixing pawl from instrument panel assembly.

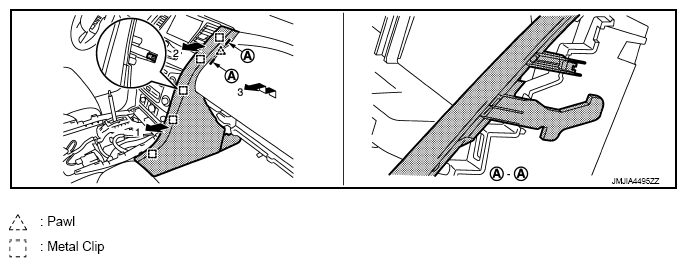

      Fig 4: Disengaging Instrument Center Finisher RH Fixing Pawl
      G07025517Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove instrument center finisher LH.
    1. Pull the instrument center finisher LH lower side, and then disengage the fixing clip.
      Fig 5: Disengaging Fixing Clip
      G07025518Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Pull back instrument center finisher LH, and then disengage metal clips.
    3. Disengage instrument center finisher LH fixing pawl from instrument panel assembly.

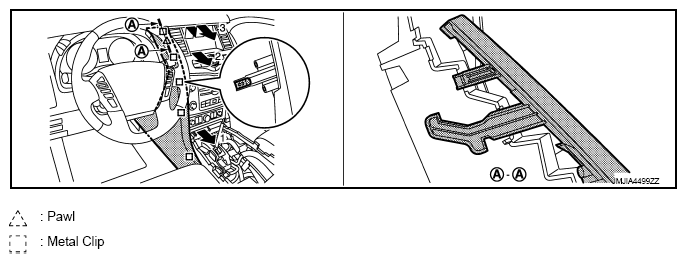

      Fig 6: Disengaging Instrument Center Finisher LH Fixing Pawl
      G07025519Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove console rear finisher.
    1. Put front seat to frontmost position.
    2. Pull back console rear finisher with remover tool (A).
    3. Disconnect harness connectors and harness clips.
      CAUTION: Apply protective tape (B) on the part to protect it from damage.

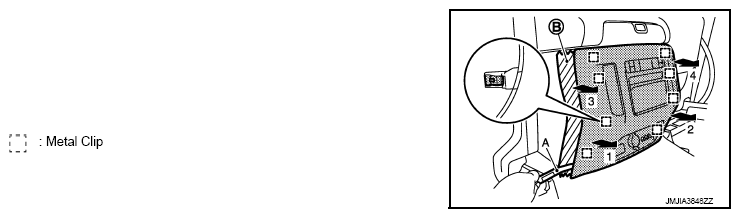

      Fig 7: Pulling Back Console Rear Finisher
      G07025520Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove center console assembly.
    1. Remove center console assembly rear side fixing screws (A).
      Fig 8: Removing Center Console Assembly Rear Side Fixing Screws
      G07025498Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Put front seat to rearmost position.
    3. Remove center console assembly front fixing screws (B).
      Fig 9: Removing Center Console Assembly Front Fixing Screws
      G07025499Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Lift up center console assembly back side, and then remove center console assembly.
