Disassembly and Assembly: Disassembly

  1. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove console mask.
    1. Open console lid.
    2. Remove console mask fixing clips with remover tool (A).
    3. Pull console mask up and back.
    4. Disconnect cool box switch connector (with Cool box).
      CAUTION: Apply protective tape (B) on the part to protect it from damage.

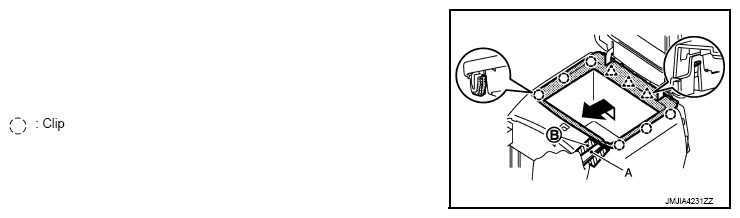

      Fig 1: Removing Console Mask Fixing Clips
      G07025523Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove console lid assembly mounting screws (A) and (B), and then remove console lid assembly.

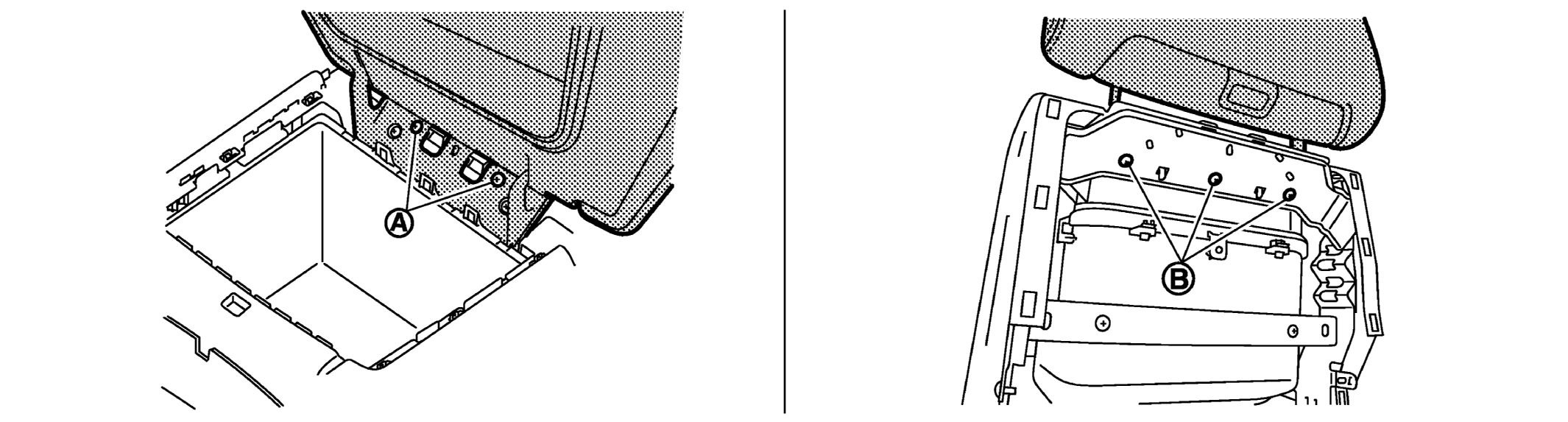

    Fig 2: Removing Console Lid Assembly Mounting Screws
    G07025524Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove console box fixing screws, and then remove console box.


  1. Remove console finisher assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove console pocket assembly fixing screws, and then remove console pocket assembly.
  3. Remove cup holder assembly fixing screws, and then remove cup holder assembly.
  4. Remove console power socket. Refer to "CONSOLE POWER SOCKET (REAR) : REMOVAL AND INSTALLATION ".
  5. Remove 4WD switch assembly (2WD: SNOW MODE/TOW MODE/VDC OFF switch assembly). Refer to "REMOVAL AND INSTALLATION ".
