Power Steering System -- G37 Coupe
>>
Removal And Installation
>>
Lower Shaft
>>
Without 4WAS
>>
WITHOUT 4WAS : Exploded View
WITHOUT 4WAS : Exploded View

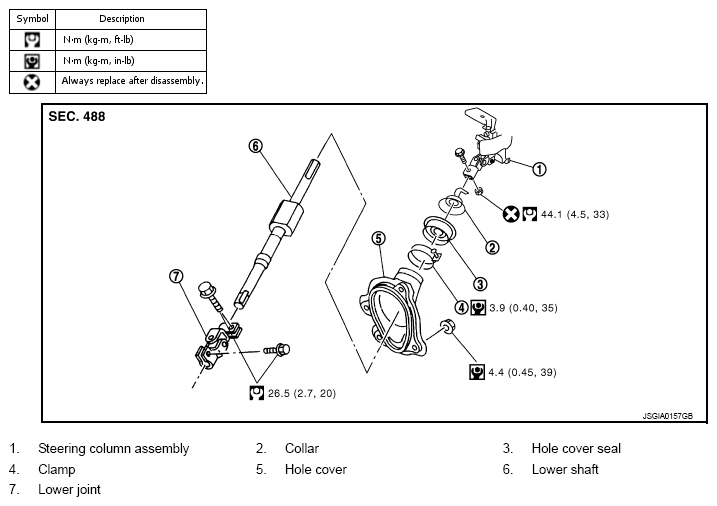

Fig 1: Exploded View Of Lower Shaft With Torque Specifications - Without 4WAS
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
