Power Steering System -- G37 Coupe
>>
Removal And Installation
>>
Hydraulic Line
>>
AWD
>>
AWD : Exploded View
AWD : Exploded View

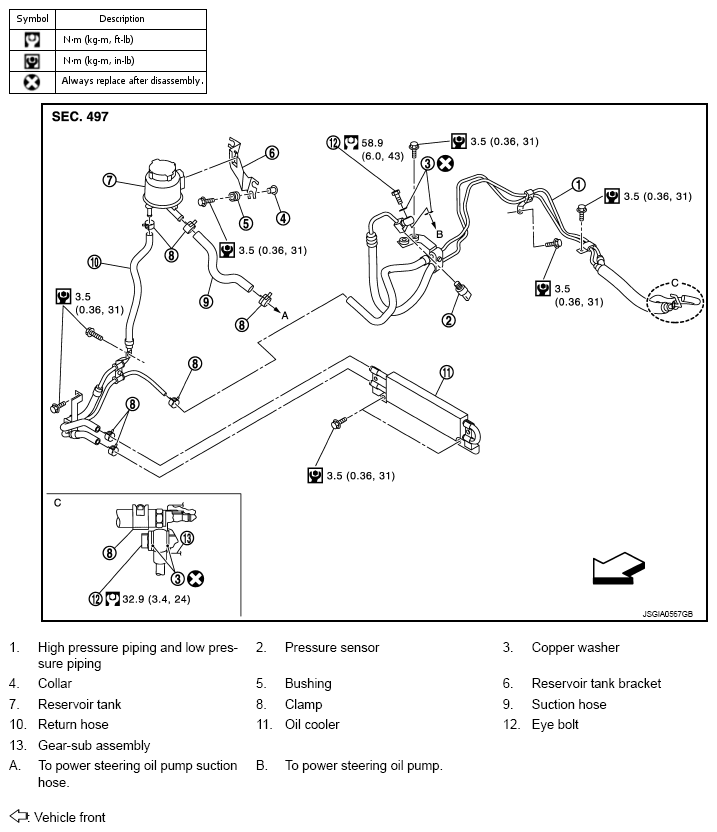

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
