Removal and Installation: Installation

Note the following items, and then install in the reverse order of removal.

CAUTION:

The spiral cable may snap during steering operation if the cable is installed in an improper position.
The neutral position is set as per the following.
Carefully turn the spiral cable clockwise to the end position. Then turn it counterclockwise (about 2 and a half turns) and stop turning at the mark (B) on which the stopper insertion holes are in the same position.
The service part is installed in the neutral position by the stopper and can be set without adjusting after the stopper is removed.
Never over turn the spiral cable or go beyond the number of turns required. (This will cause the cable to snap)
Adjust the spiral cable locating pin (A) to the steering wheel locating pin hole (C).

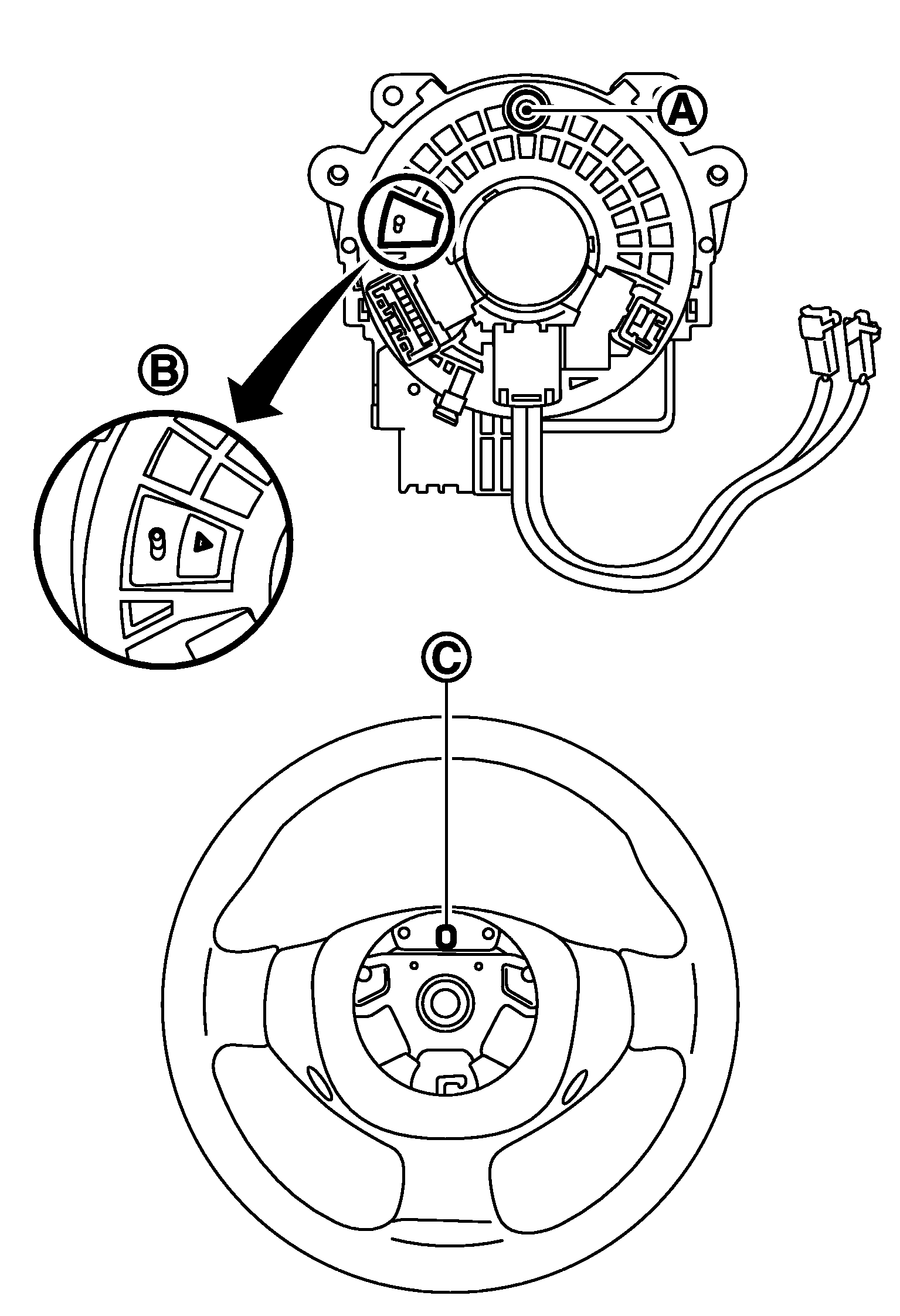

Fig 1: Identifying Spiral Cable Locating Pin And Steering Wheel Locating Pin Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. Refer to "CONSULT-III FUNCTION ".
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
