Removal and Installation: Removal

Remove the glove box assembly and instrument lower panel RH.
- A/T models: Refer to "A/T MODELS : REMOVAL AND INSTALLATION ".
- M/T models: Refer to "M/T MODELS : REMOVAL AND INSTALLATION ".
Disconnect the passenger air bag module harness connectors (A) from the passenger air bag module.

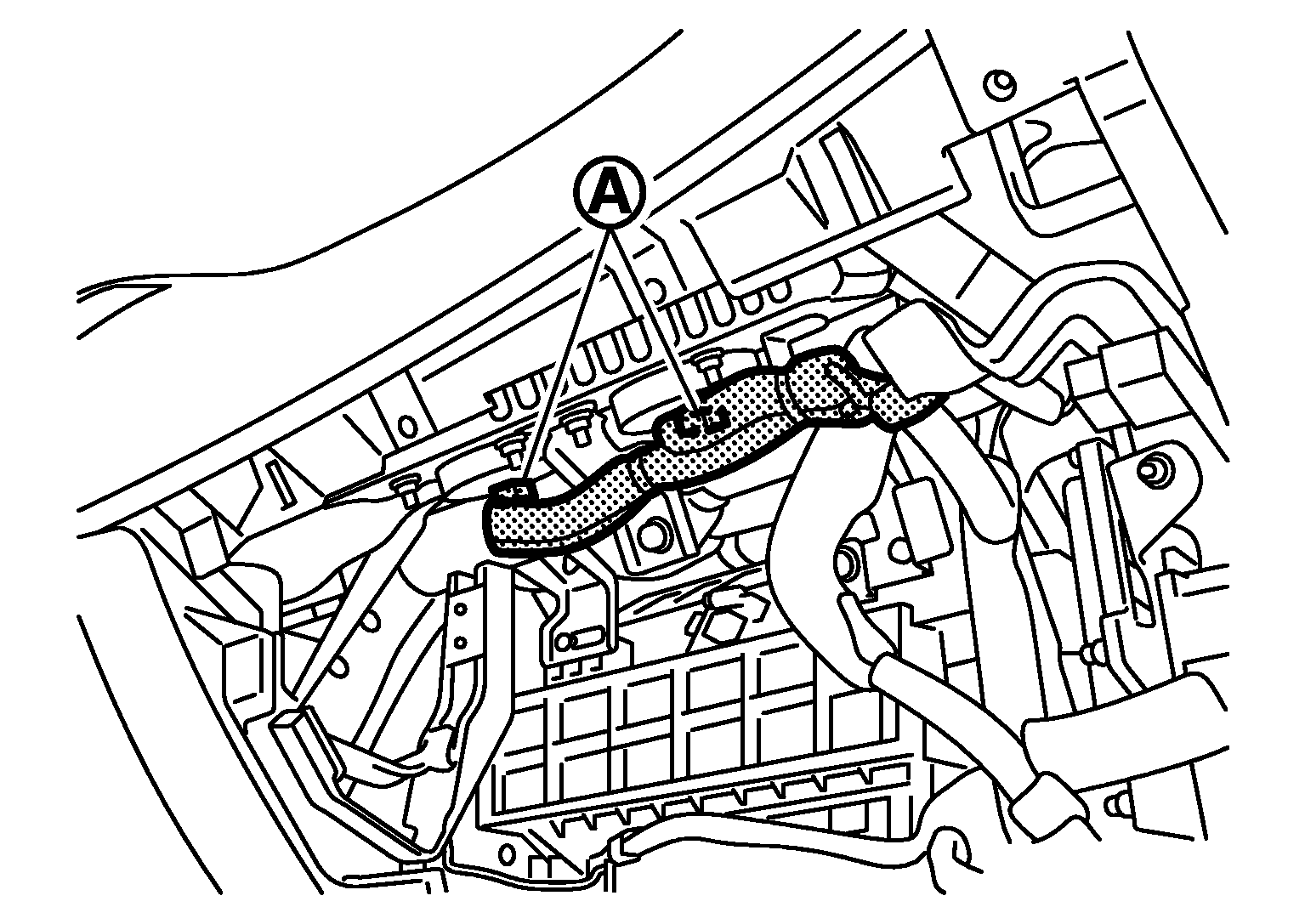

Fig 1: Locating Passenger Air Bag Module Harness Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the passenger air bag module fixing bolt and screws.
NOTE: The figure shows the installed passenger air bag module. (Under view of the module installed without glove box cover.)
Disconnect the pawls (A) and (B), and then remove the passenger air bag module.

Fig 2: Disconnecting Pawls
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always place the passenger air bag module with pad side facing upward.

Fig 3: View Of Passenger Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Never impact the passenger air bag module.
Replace the passenger air bag module if it has been dropped or sustained an impact.

Fig 4: Precaution For Handling Passenger Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
Never disassemble the passenger air bag module.
Never expose the passenger air bag module to temperatures exceeding 90°C (194°F).
Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
