Removal and Installation: Removal

Remove the side lids (LH/RH).
Remove the driver air bag module mounting TORX bolt (LH/RH) with TORX bit (A).

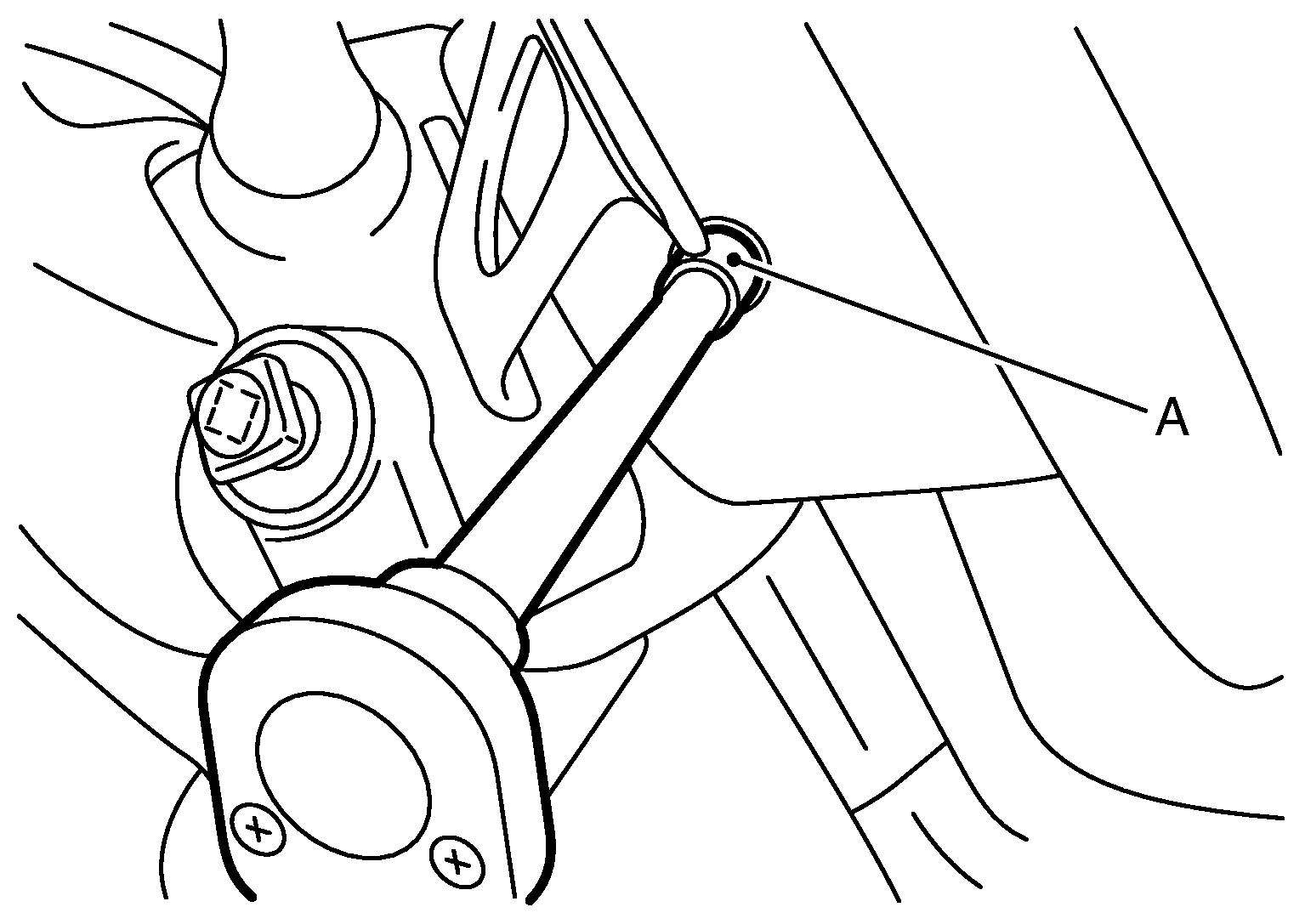

Fig 1: Removing Driver Air Bag Module Mounting Torx Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull out the driver air bag module assembly.
Disconnect the driver air bag module harness connector.
CAUTION:
- For installing/removing the driver air bag module harness connector, insert thin screwdriver wrapped in tape into notch, lift lock and remove the connector.
- Install the connector with lock raised, and push lock into the connector.
- After installing the connector, check that the lock is pushed securely into it.

  Fig 2: Disconnecting Driver Air Bag Module Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the driver air bag module.

CAUTION:

Always place the driver air bag module with pad side facing upward.

Fig 3: View Of Driver Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Never impact the driver air bag module.
Replace the driver air bag module if it has been dropped or sustained an impact.

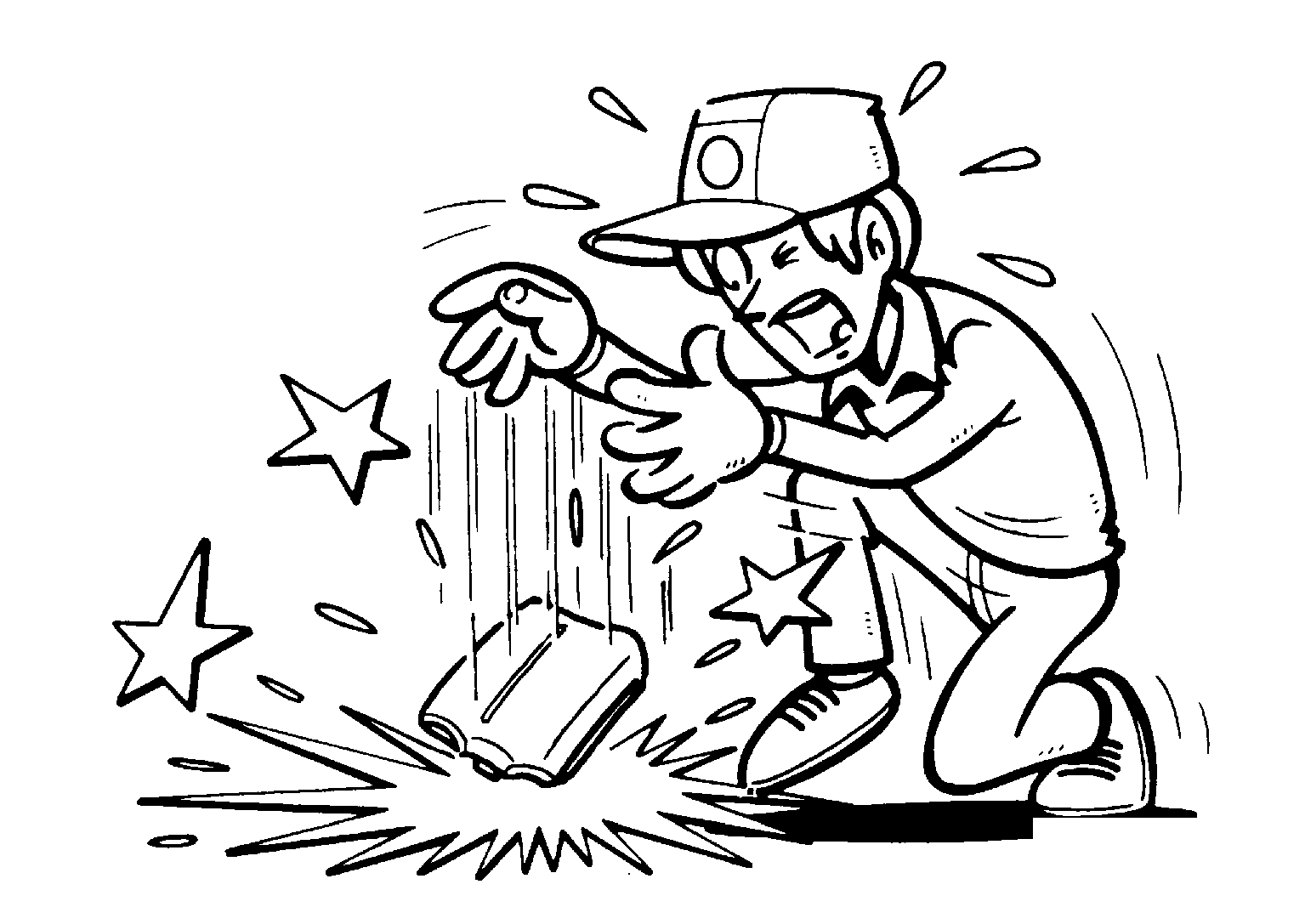

Fig 4: Precaution For Handling Driver Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Never insert any foreign objects (screwdriver, etc.) into the driver air bag module.
Never disassemble the driver air bag module.
Never expose the driver air bag module to temperatures exceeding 90°C (194°F).
Never allow oil, grease, detergent, or water to come in contact with the driver air bag module.
