SRS Airbag -- G37 Coupe
>>
Removal And Installation
>>
Crash Zone Sensor
>>
Exploded View
Exploded View

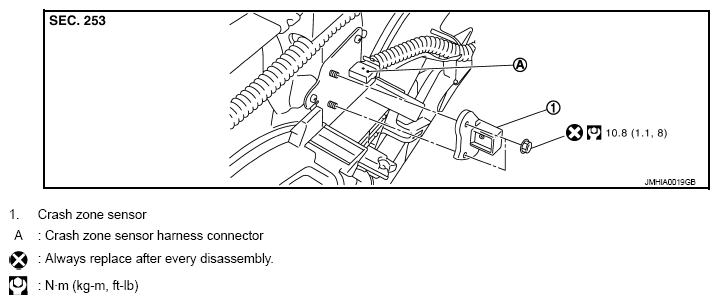

Fig 1: Exploded View Of Crash Zone Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
