Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

MOUNTING BOLTS STANDARD CHART

Bolt No.	A	B	C	D
Quantity	4	3	4	2
Bolt length "L" mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)

Transfer to transmission.

Transmission to transfer.

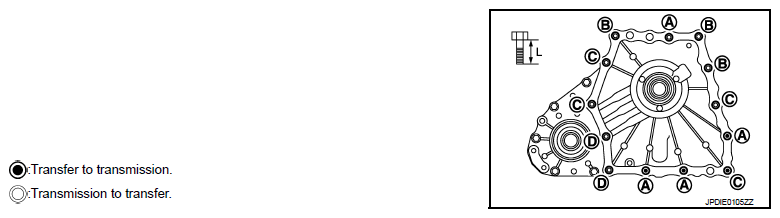

Fig 1: Locating Transfer To Transmission Bolts And Transmission To Transfer Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

When installing transfer air breather hose, make sure there are no pinched or restricted areas on the transfer air breather hose caused by bending or winding.

Set transfer air breather hose (1) of transmission side with the paint mark (A) facing upward, and insert air breather hose to air breather tube until hose end reaches the tube bend R portion.

Fig 2: Setting Transfer Air Breather Hose Of Transmission Side With Paint Mark Facing Upward
Courtesy of NISSAN MOTOR CO., U.S.A.
Be sure to insert air breather hose (1) of transfer side to air breather tube (2) until hose end reaches the tube bend R portion.

Fig 3: View Of Air Breather Hose And Air Breather Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
Be sure to fix air breather hose in (A) positions.

After the installation, check the fluid level, fluid leakage and the A/T positions. Refer to "INSPECTION ".

Fig 4: Locating Air Breather Hose Fixing Positions

Courtesy of NISSAN MOTOR CO., U.S.A.
