Gears And Chain

WARNING: This page is about a different variant/trim than selected.

Excessive wear, damage, peeling, etc. of gear and chain.

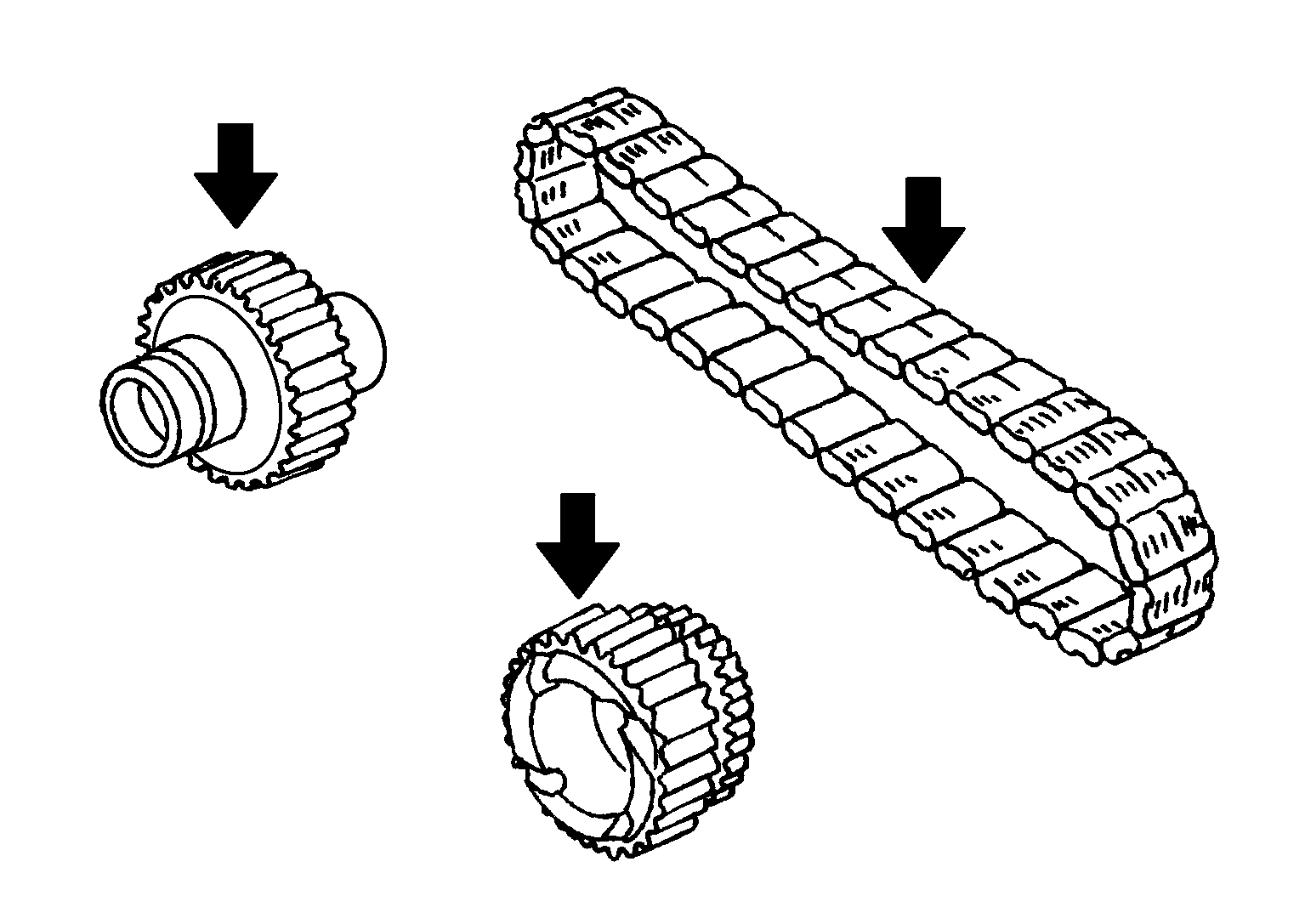

Fig 1: Inspecting Gears And Chain
G05979388Courtesy of NISSAN MOTOR CO., U.S.A.
