Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the glove box assembly. Refer to "A/T MODELS : EXPLODED VIEW ".
  2. Disconnect AWD control unit harness connector.
  3. Remove AWD control unit (1) mounting nuts.
  4. Remove AWD control unit.

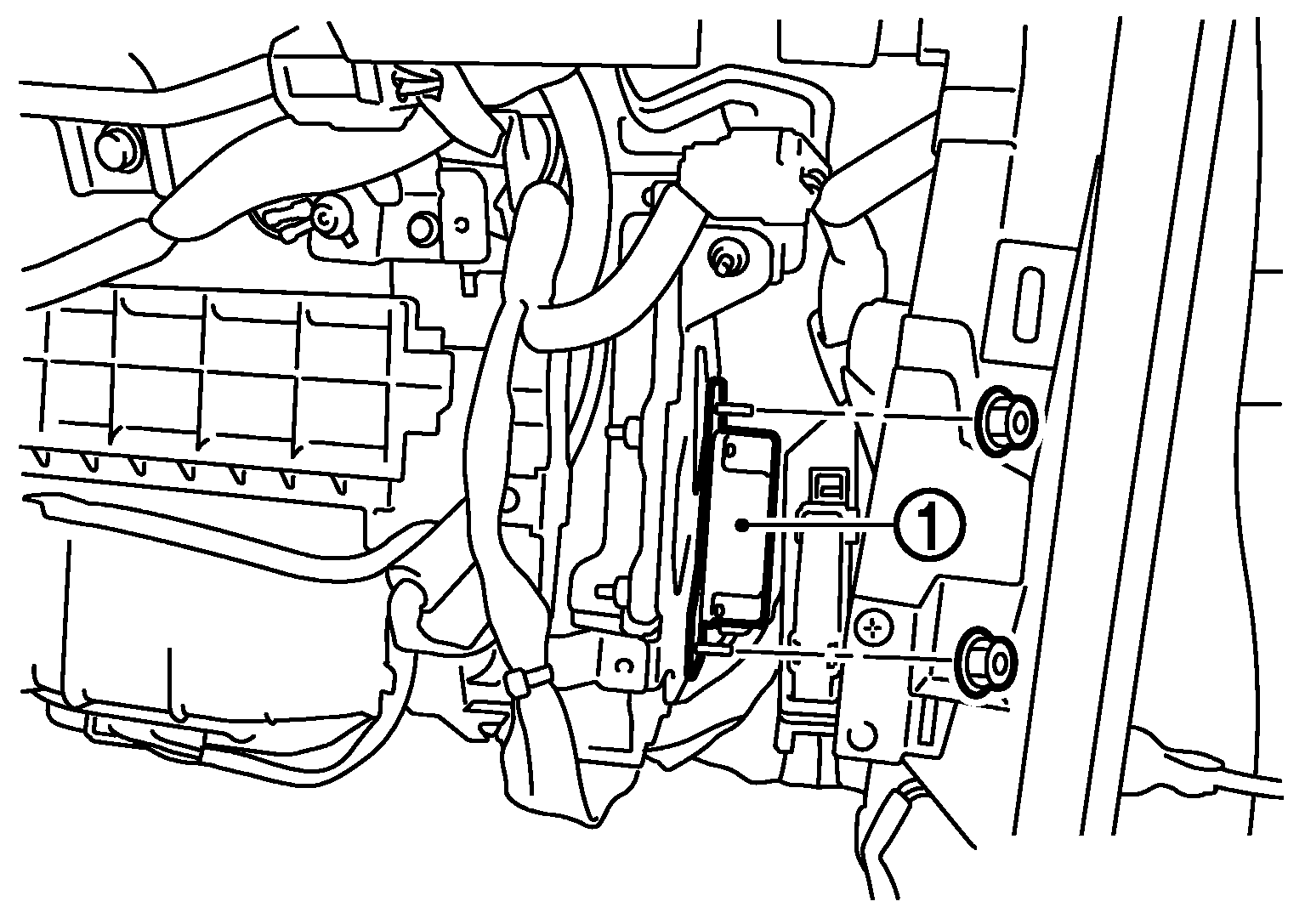

Fig 1: Locating AWD Control Unit And Mounting Nuts
G05218998Courtesy of NISSAN MOTOR CO., U.S.A.
