Wiring Diagram - AWD SYSTEM -

WARNING: This page is about a different variant/trim than selected.

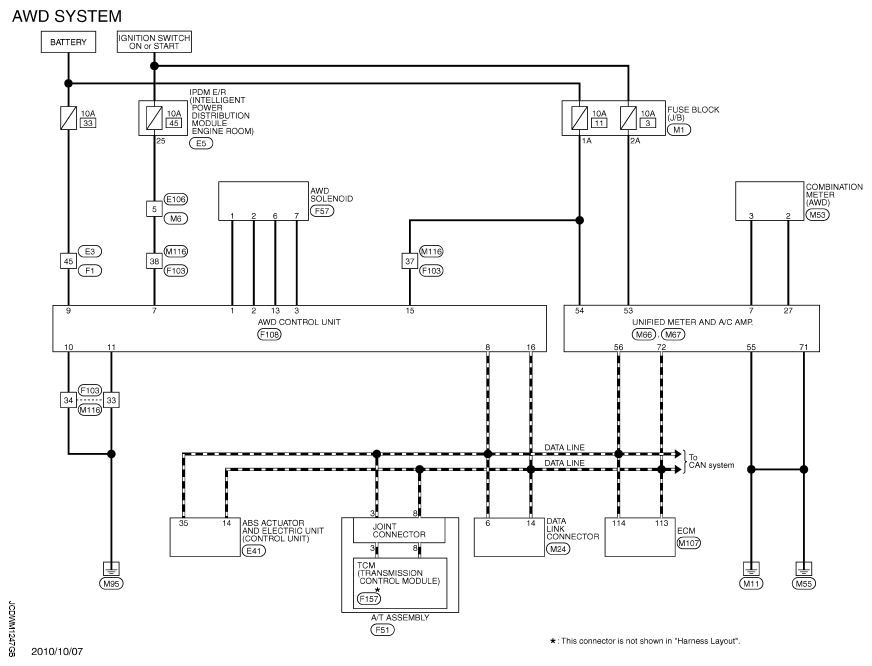

Fig 1: AWD System Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

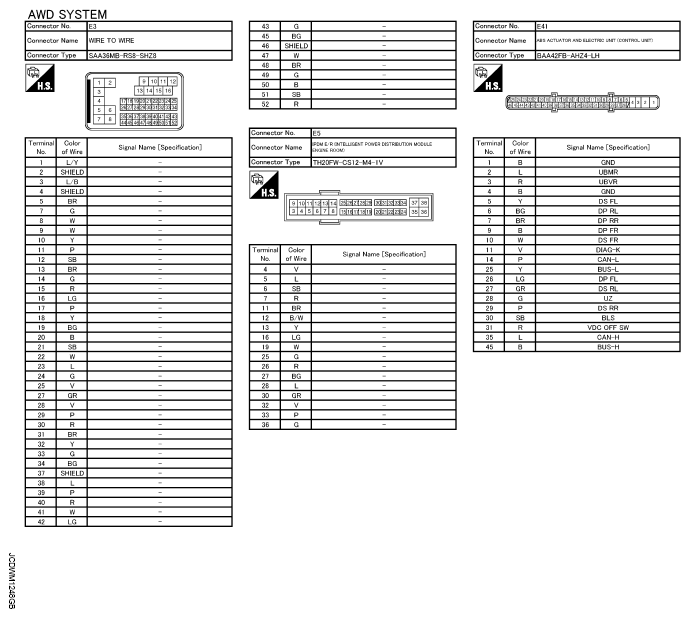

Fig 2: AWD System Connector End Views (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

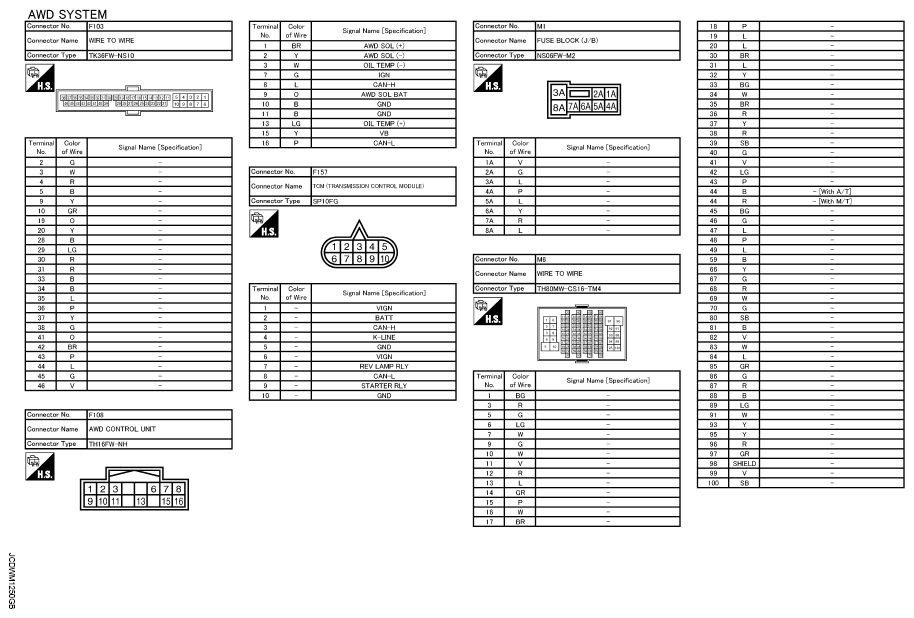

Fig 3: AWD System Connector End Views (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

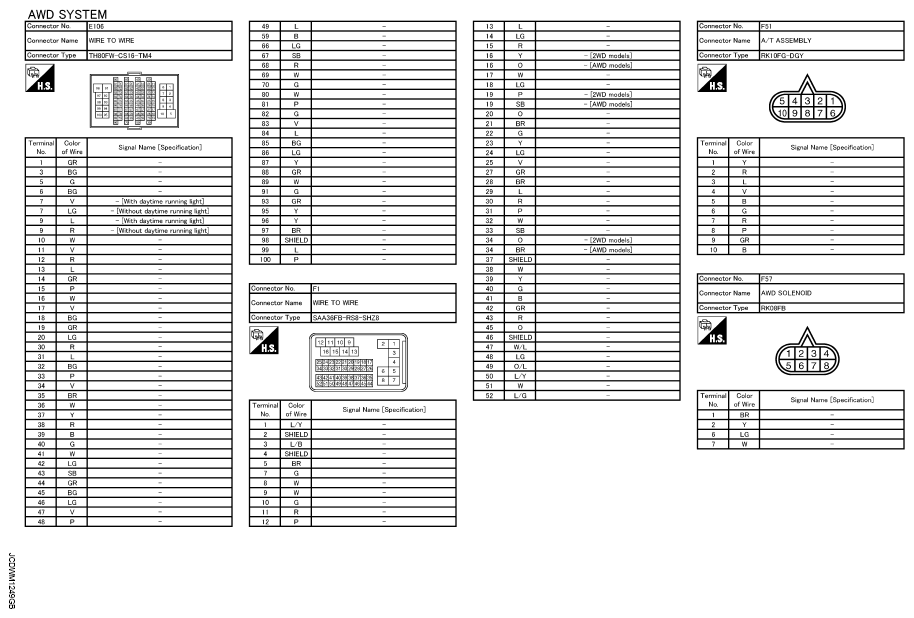

Fig 4: AWD System Connector End Views (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: AWD System Connector End Views (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

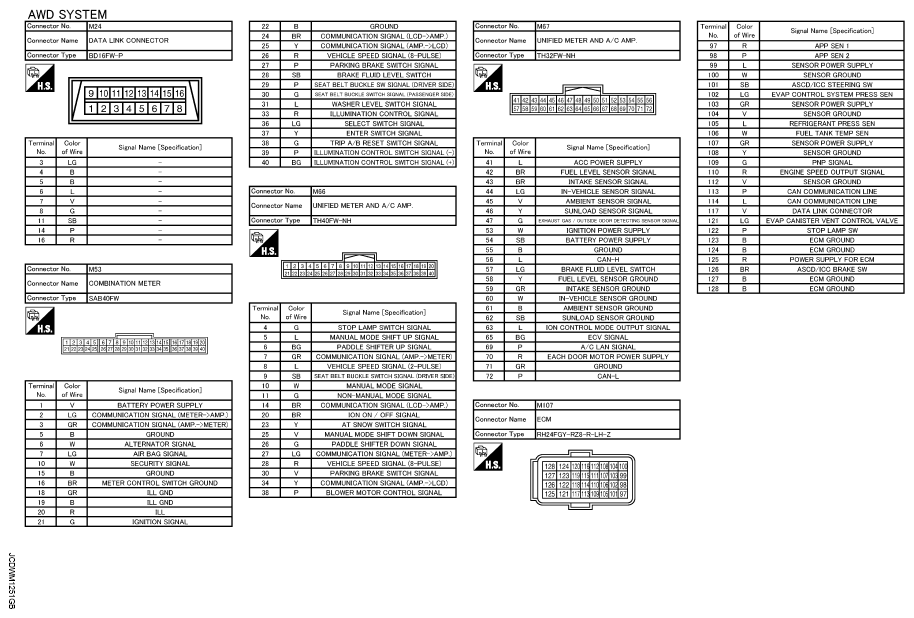

Fig 6: AWD System Connector End Views (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
