Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
Left Side
- Refer to the procedure from 1 to 12 in "REPLACEMENT ".
- Remove shock absorber from transverse link with power tool. Refer to "EXPLODED VIEW ".
- Remove fixing bolts and nuts, and then remove drive shaft from vehicle.
Right Side
- Refer to the procedure from 1 to 12 in "REPLACEMENT ".
- Remove shock absorber from transverse link with power tool. Refer to "EXPLODED VIEW ".
- Remove drive shaft from front final drive.

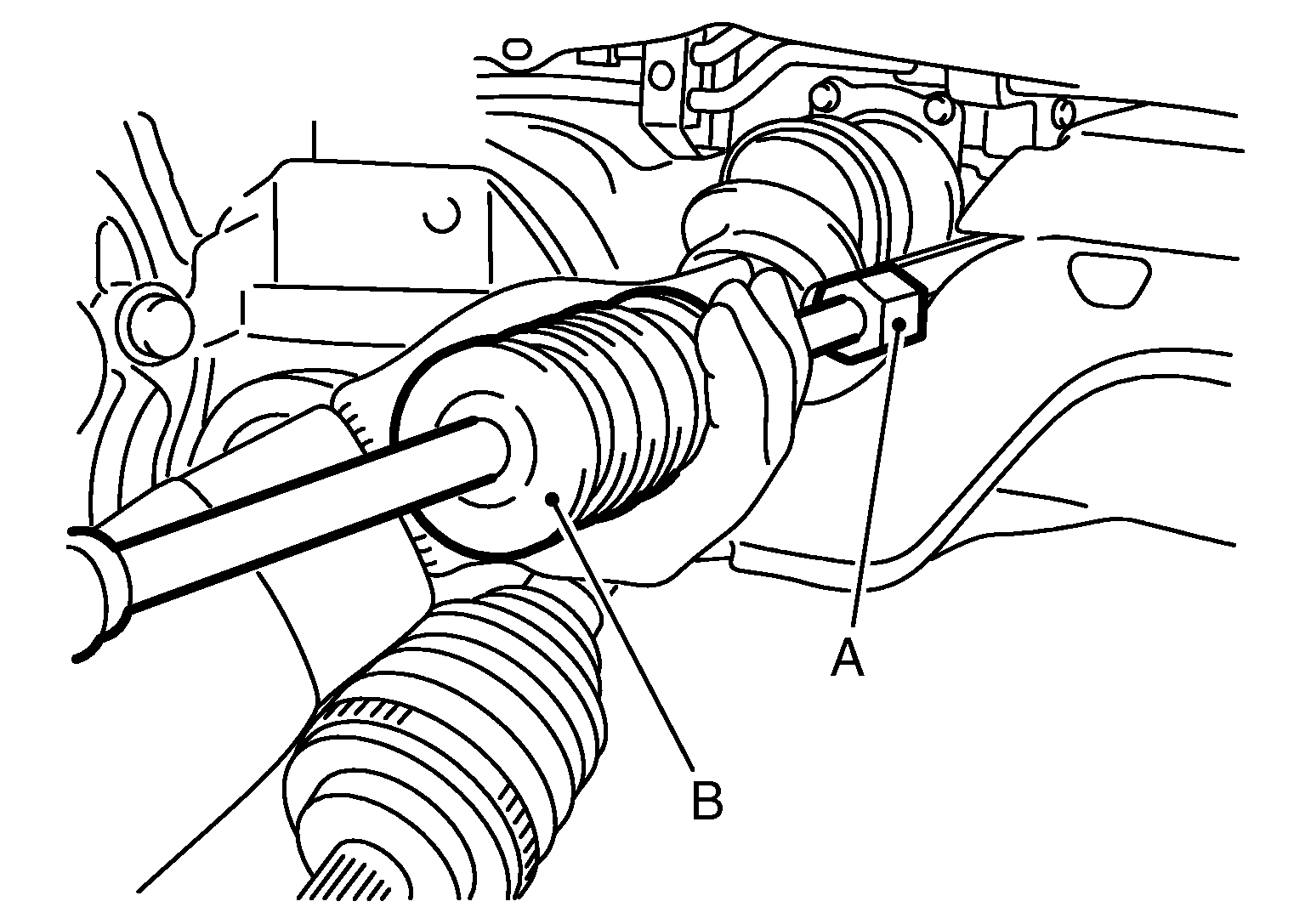

- Remove drive shaft from front final drive using the drive shaft attachment (A) [SST:KV40107500 (-)] and a sliding hammer (B) while inserting tip of the drive shaft attachment between housing and front final drive.
CAUTION:
Never place drive shaft joint at an extreme angle when removing drive shaft. Also be careful not to overextend slide joint.
