Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Left Side
Install in the reverse order of removal.
Right Side
Note the following, and install in the reverse order of removal.
CAUTION:
Always replace front final drive oil seal with new one when installing drive shaft. Refer to
"RIGHT SIDE : EXPLODED VIEW
" (Right side),
"LEFT SIDE : EXPLODED VIEW
" (Left side).

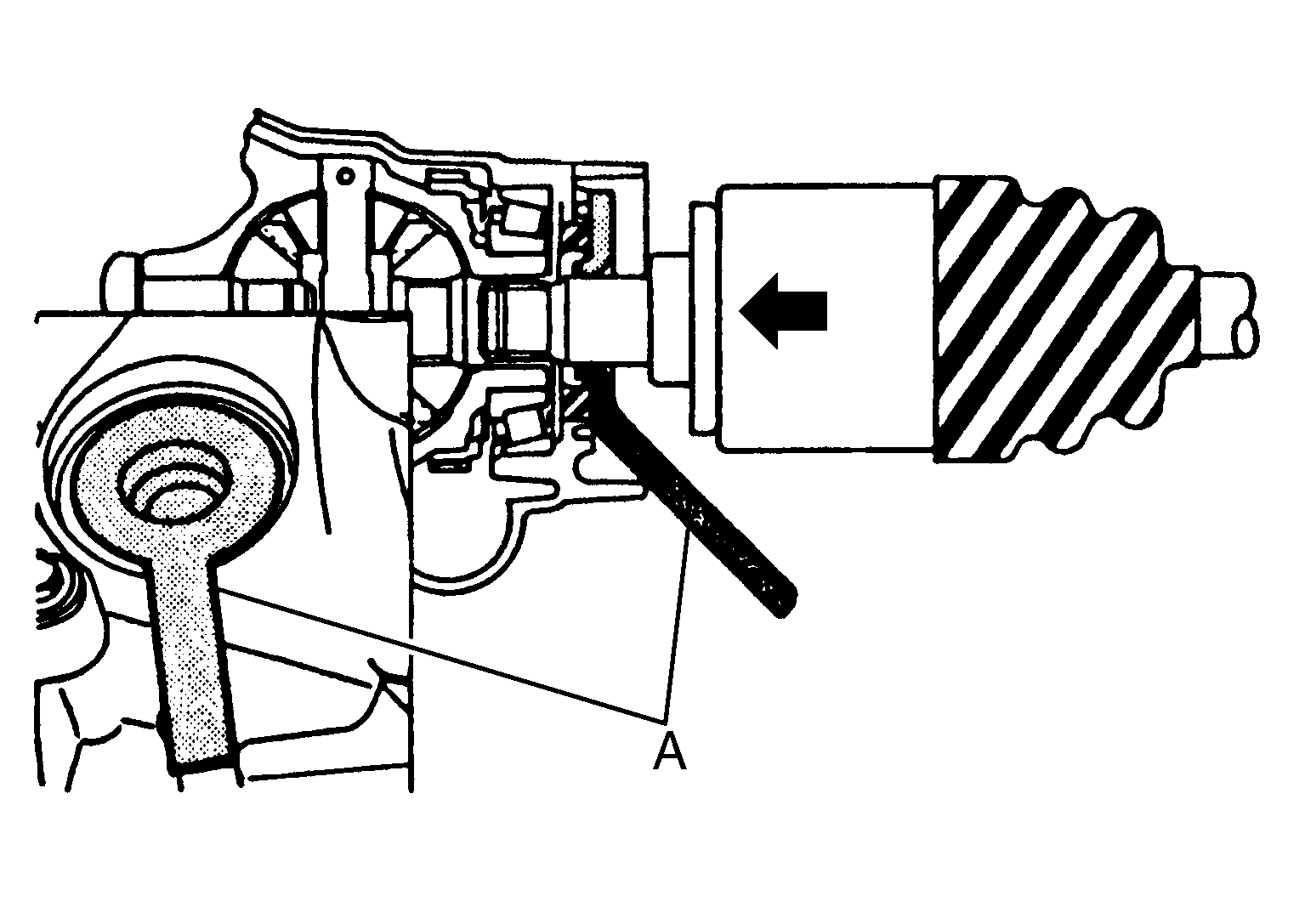

- Place the protector (A) [SST:KV38107900 (-)] onto front final drive to prevent damage to the oil seal while inserting drive shaft. Slide drive shaft sliding joint and tap with a hammer to install securely.
