Section 63 (Front Axle (AWD) -- G37 Coupe)
>>
Removal And Installation
>>
Front Drive Shaft
>>
Exploded View
>>
Removal
Exploded View: Removal
WARNING:
This page is about a different variant/trim than selected.

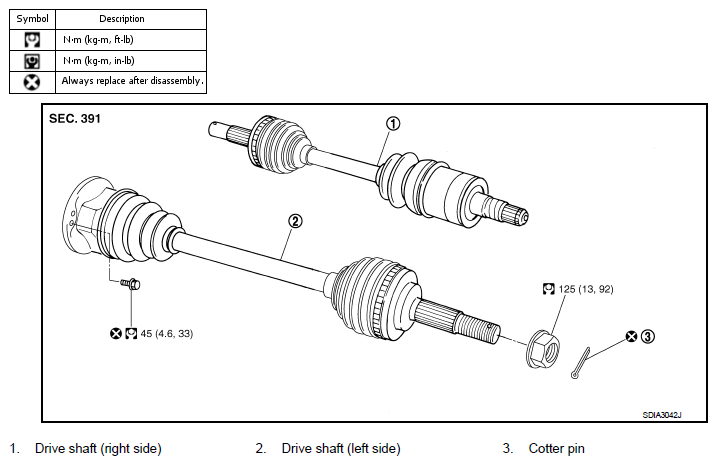

Fig 1: Exploded View Of Front Drive Shaft With Torque Specifications
