Under Drive Carrier, Front Brake Hub: Assembly

WARNING: This page is about a different variant/trim than selected.

Install snap ring (1) to front brake hub.
CAUTION: Be careful not to damage snap ring.

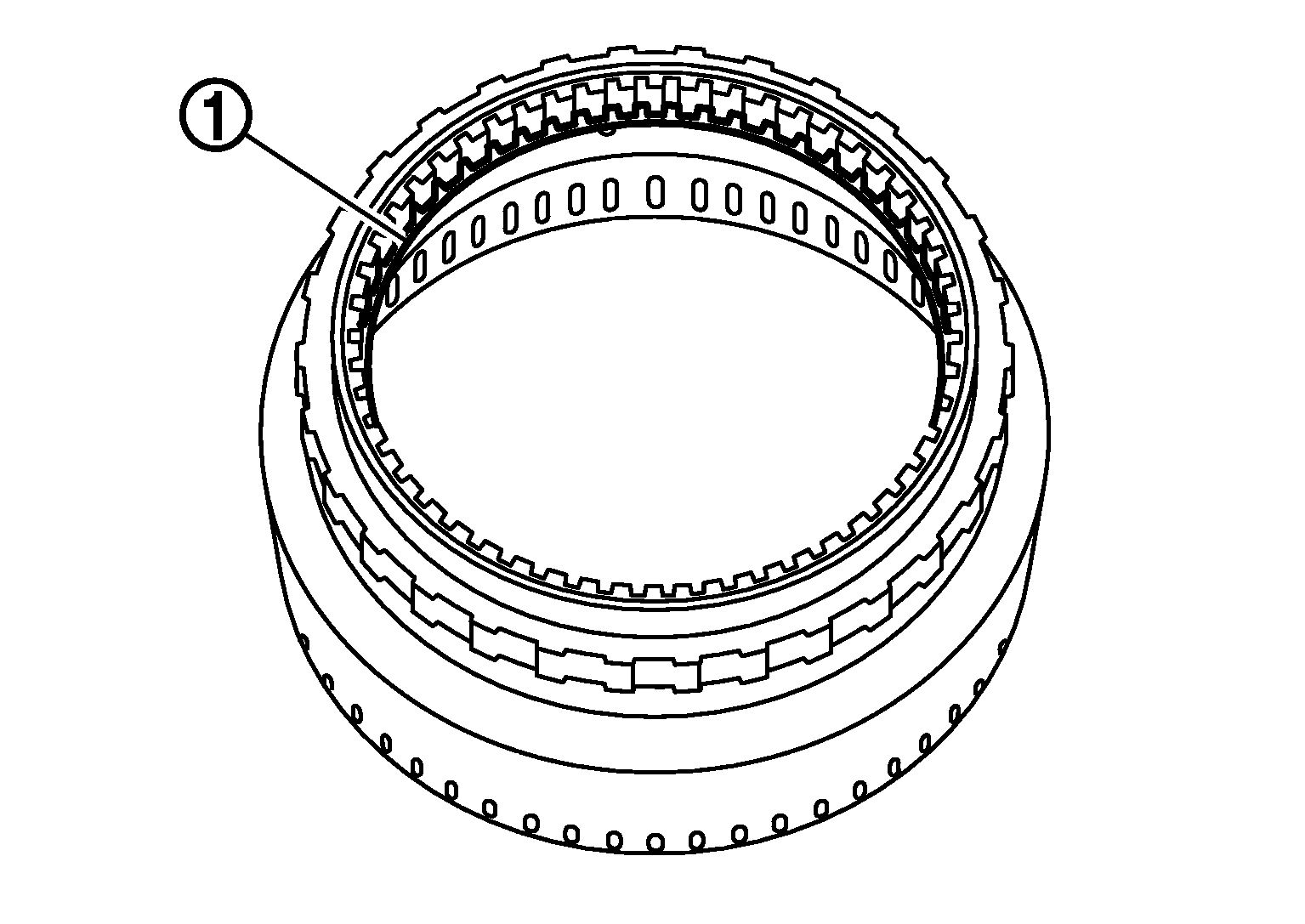

Fig 1: View Of Front Brake Hub Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install under drive carrier assembly (1) to front brake hub.

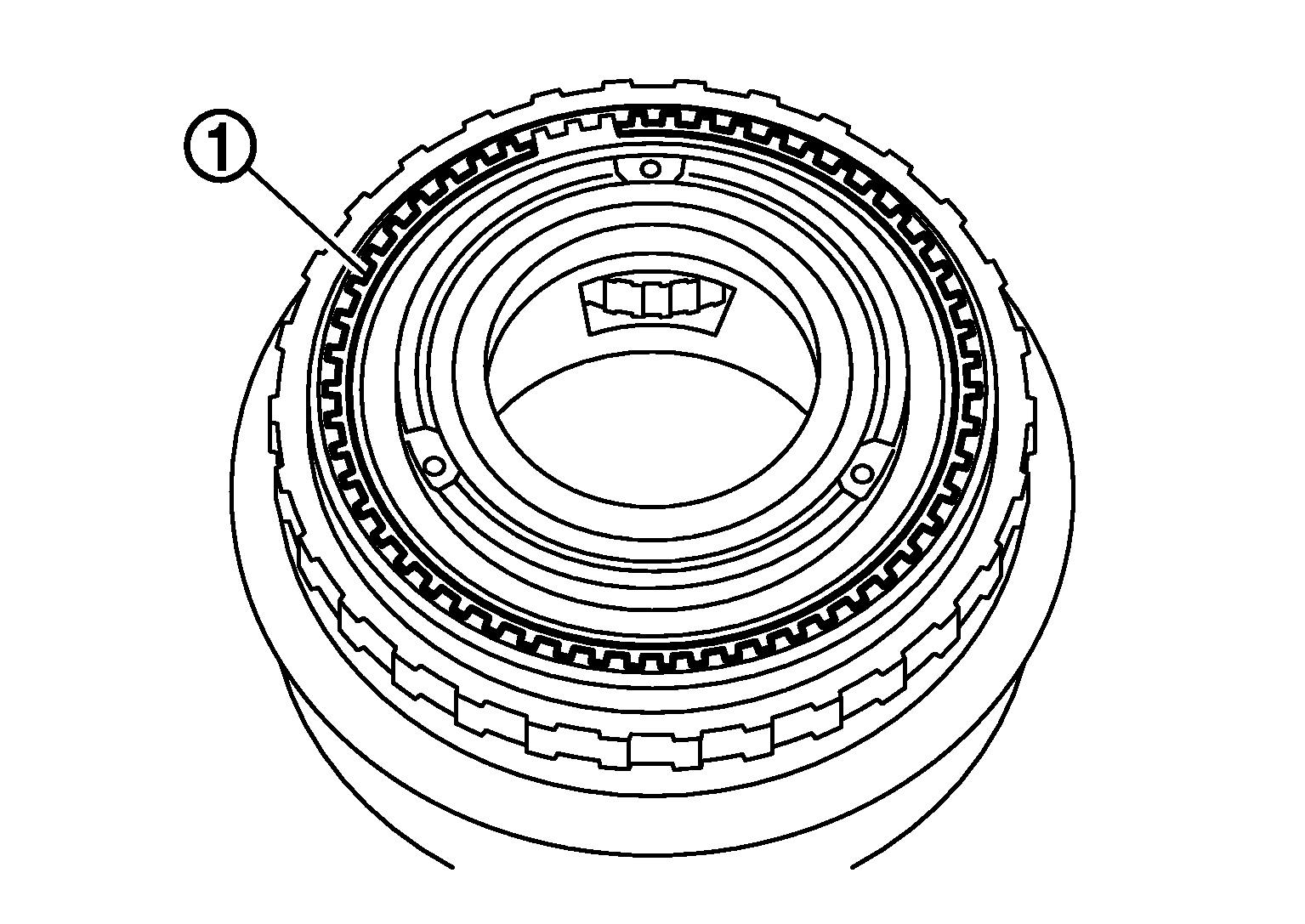

Fig 2: Installing Under Drive Carrier Assembly To Front Brake Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring (1) to front brake hub using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch front brake hub.
- Be careful not to damage snap ring.

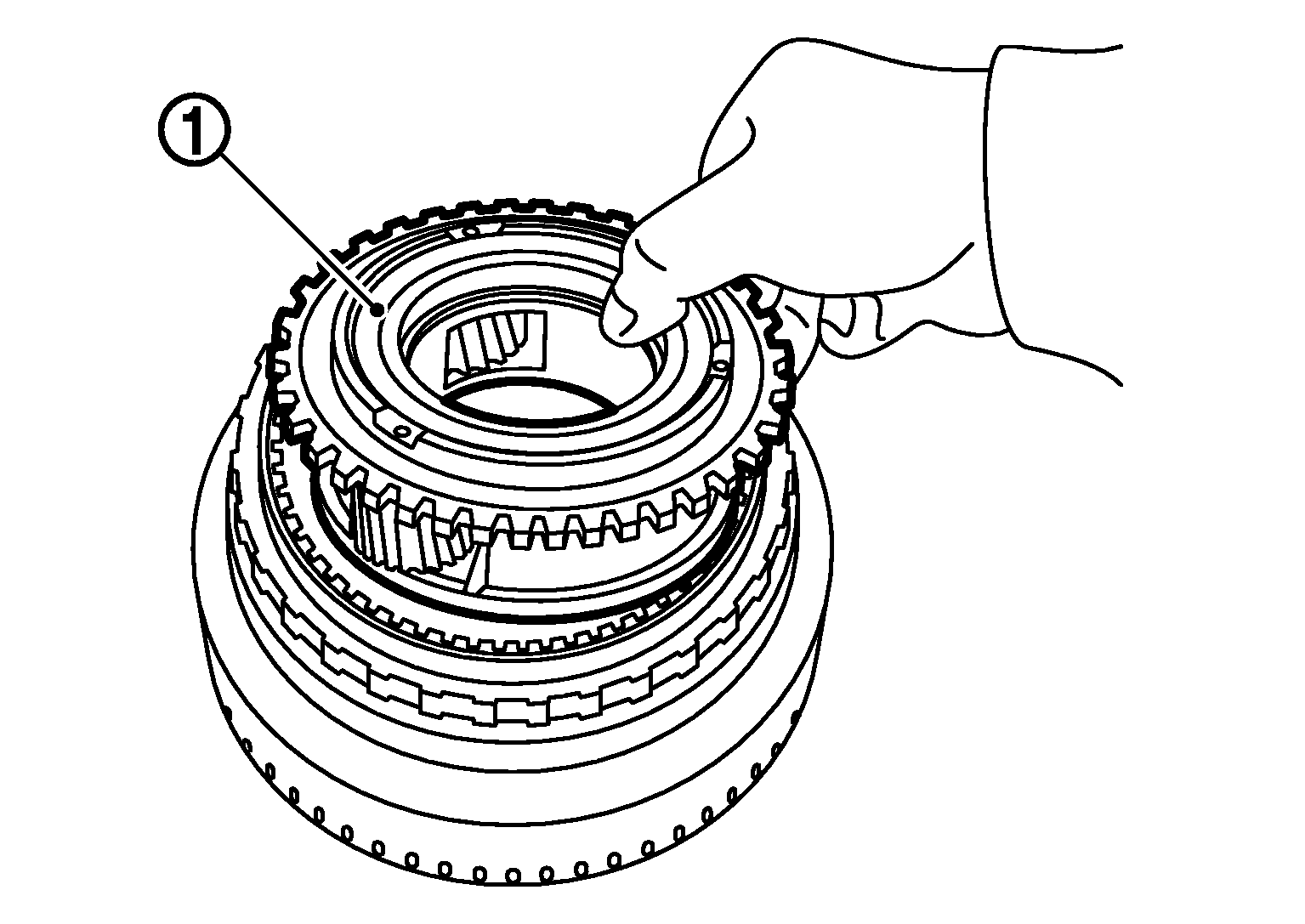

  Fig 3: Locating Front Brake Hub Snap Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
