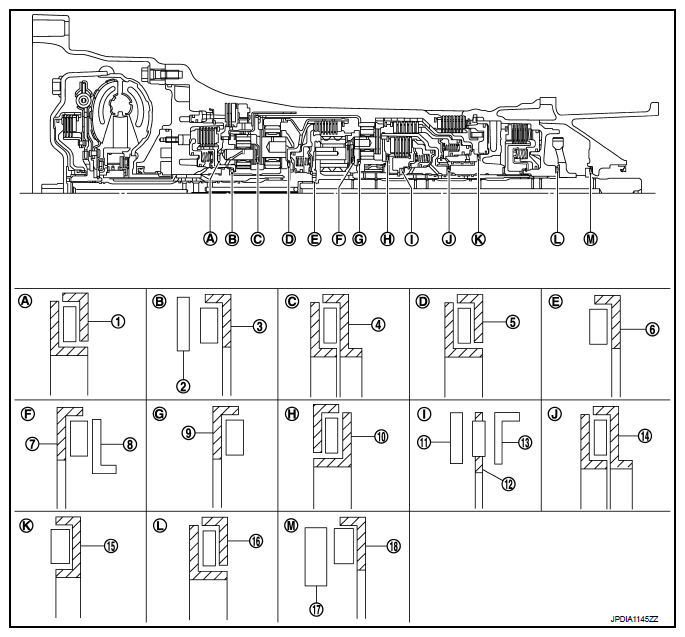

NEEDLE BEARINGS AND BEARING RACES REFERENCE CHART
| Location | Item | Outer diameter mm (in) |
|---|---|---|
| A | (1) Needle bearing | 94 (3.701) |
| B | (2) Bearing race | 58.6 (2.307) |
| (3) Needle bearing | 60 (2.362) | |
| C | (4) Needle bearing | 84.6 (3.331) |
| D | (5) Needle bearing | 77 (3.031) |
| E | (6) Needle bearing | 47 (1.850) |
| F | (7) Needle bearing | 84 (3.307) |
| (8) Bearing race | 82 (3.228) | |
| G | (9) Needle bearing | 80 (3.150) |
| H | (10) Needle bearing | 92 (3.622) |
| I | (11) Bearing race | 61.1 (2.406) |
| (12) Needle bearing | 60 (2.362) | |
| (13) Bearing race | 61.9 (2.437) | |
| J | (14) Needle bearing | 62.8 (2.472) |
| K | (15) Needle bearing | 92 (3.622) |
| L | (16) Needle bearing | 65 (2.559) |
| M | (17) Bearing race | 58 (2.283) |
| (18) Needle bearing | 58 (2.283) |
