2WD Models

WARNING: This page is about a different variant/trim than selected.

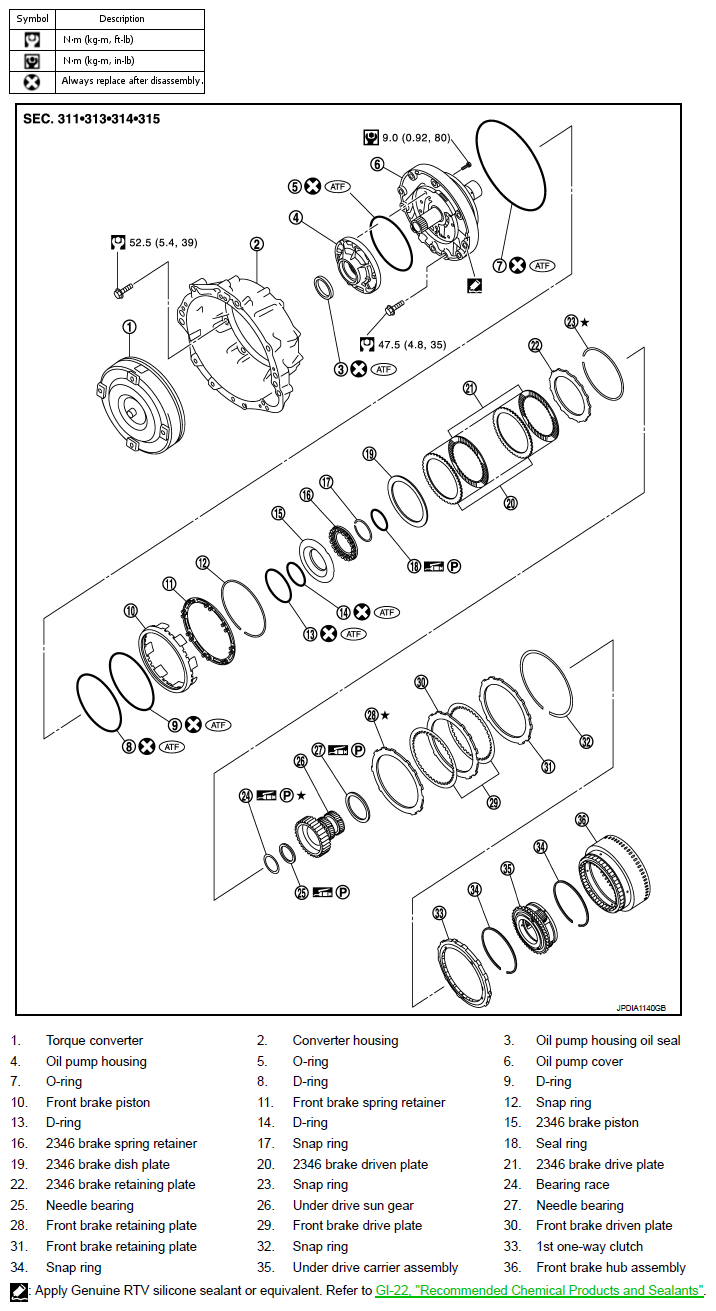

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications - 2WD Models (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

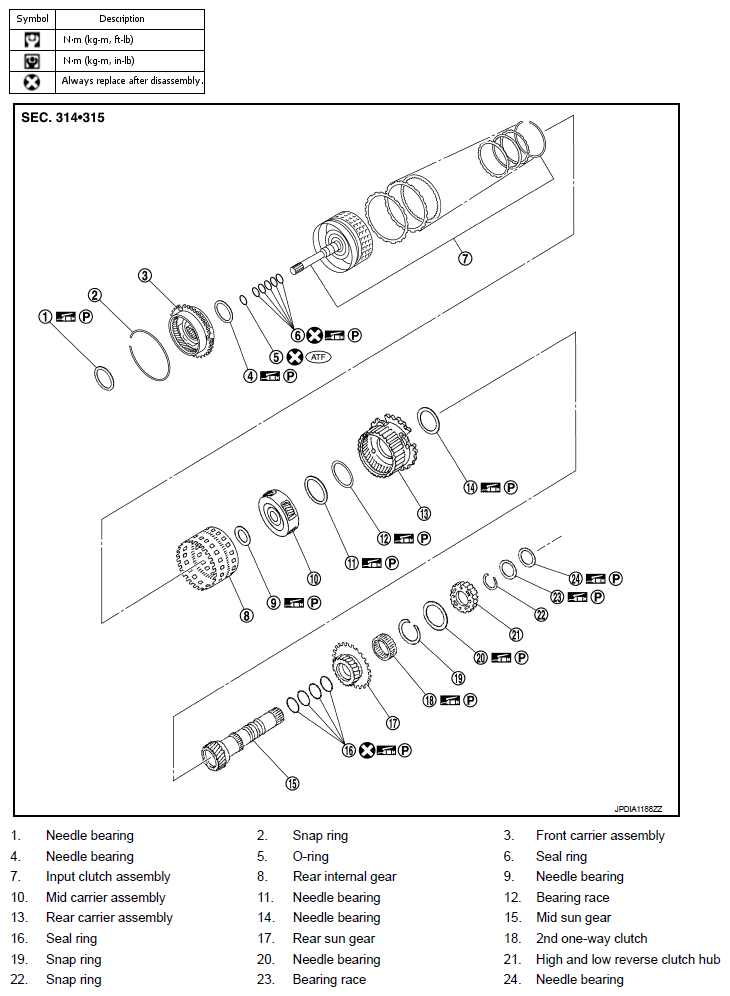

Fig 2: Exploded View Of Transmission Assembly - 2WD Models (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

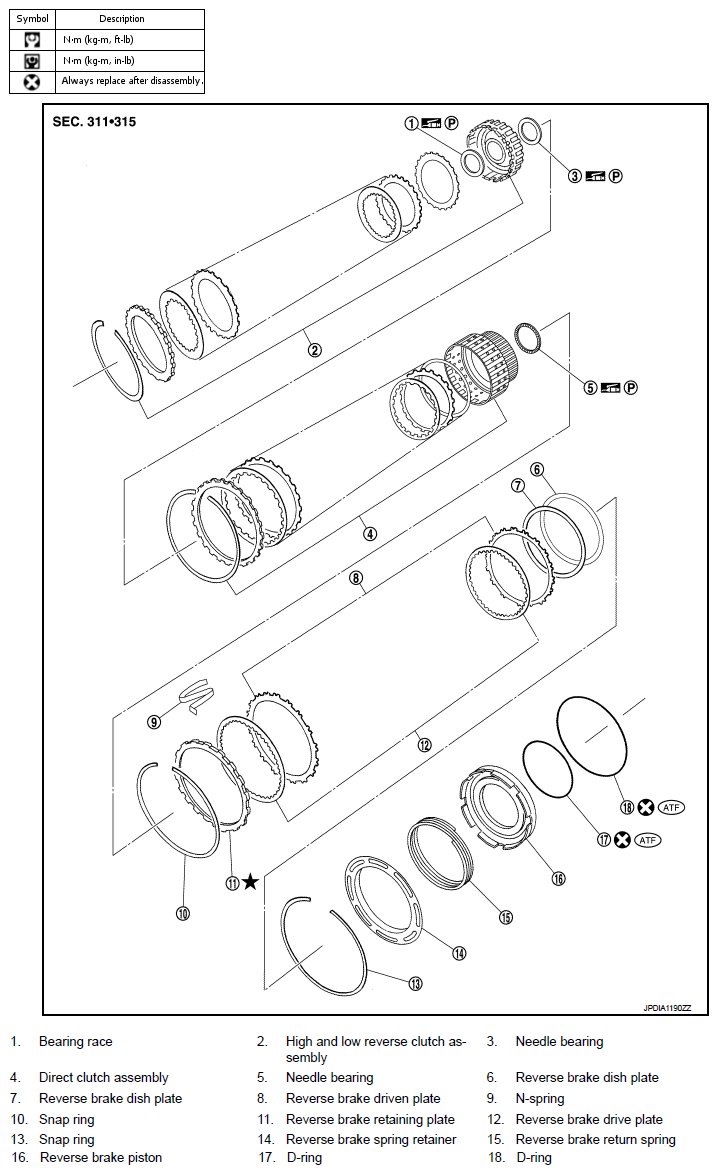

Fig 3: Exploded View Of Transmission Assembly - 2WD Models (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

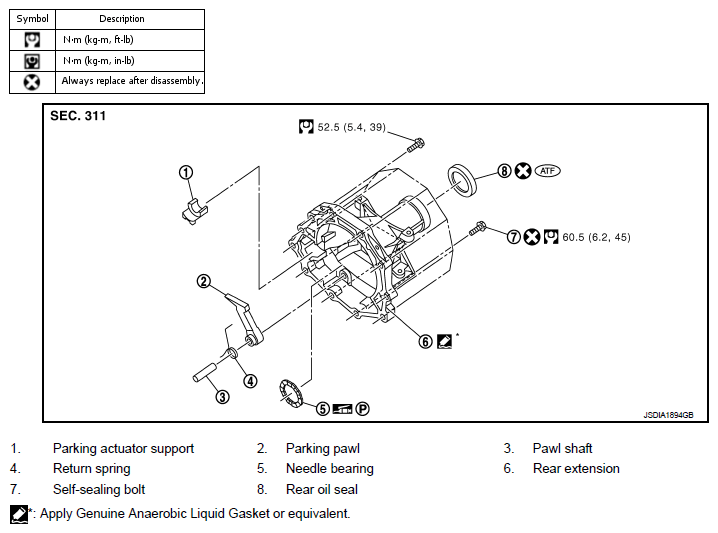

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications - 2WD Models (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

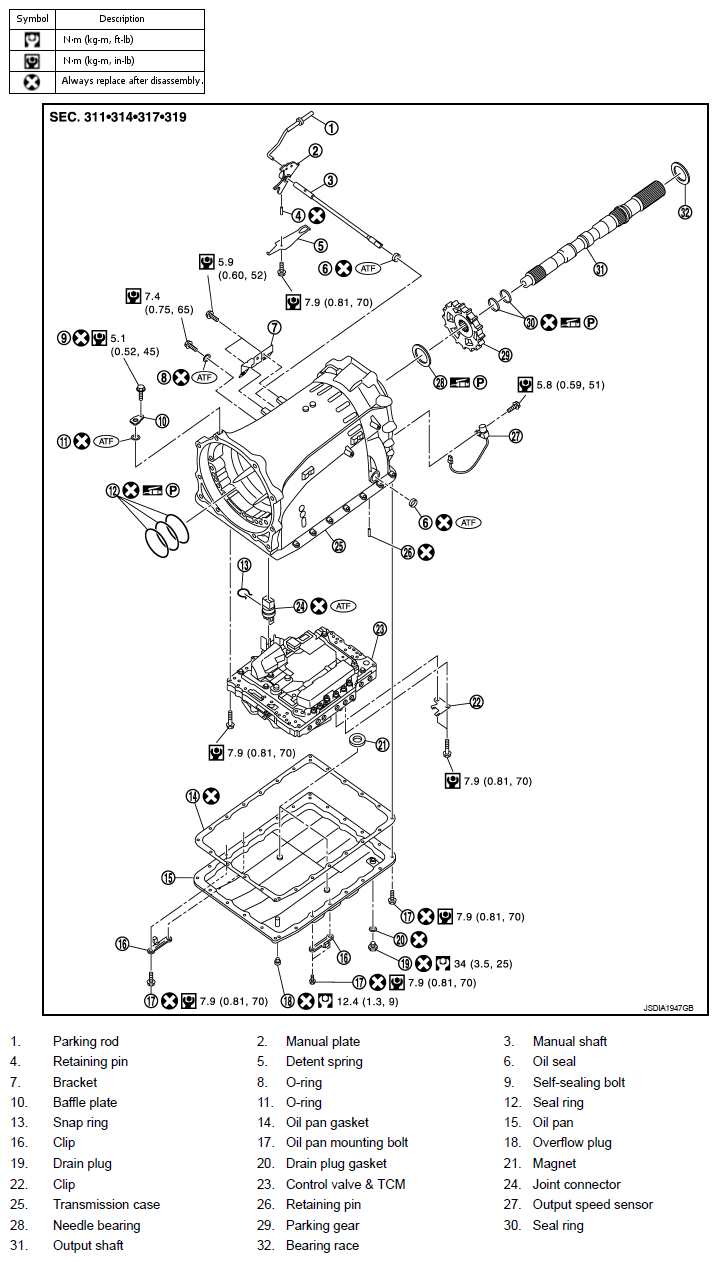

Fig 5: Exploded View Of Transmission Assembly With Torque Specifications - 2WD Models (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
