Inspection After Assembly

WARNING: This page is about a different variant/trim than selected.

2346 Brake Clearance

Set a dial indicator (A) as shown in the figure. Blow air into 2346 brake oil pressure hole (B), and measure 2346 brake clearance. If clearance is outside the specified value, adjust clearance by selecting an appropriate snap ring (1). Refer to "OIL CHANNEL ".

Air pressure : 300kPa (3.06 kg/cm² , 43.5 psi)

2346 brake clearance : Refer to "2346 BRAKE CLEARANCE ".

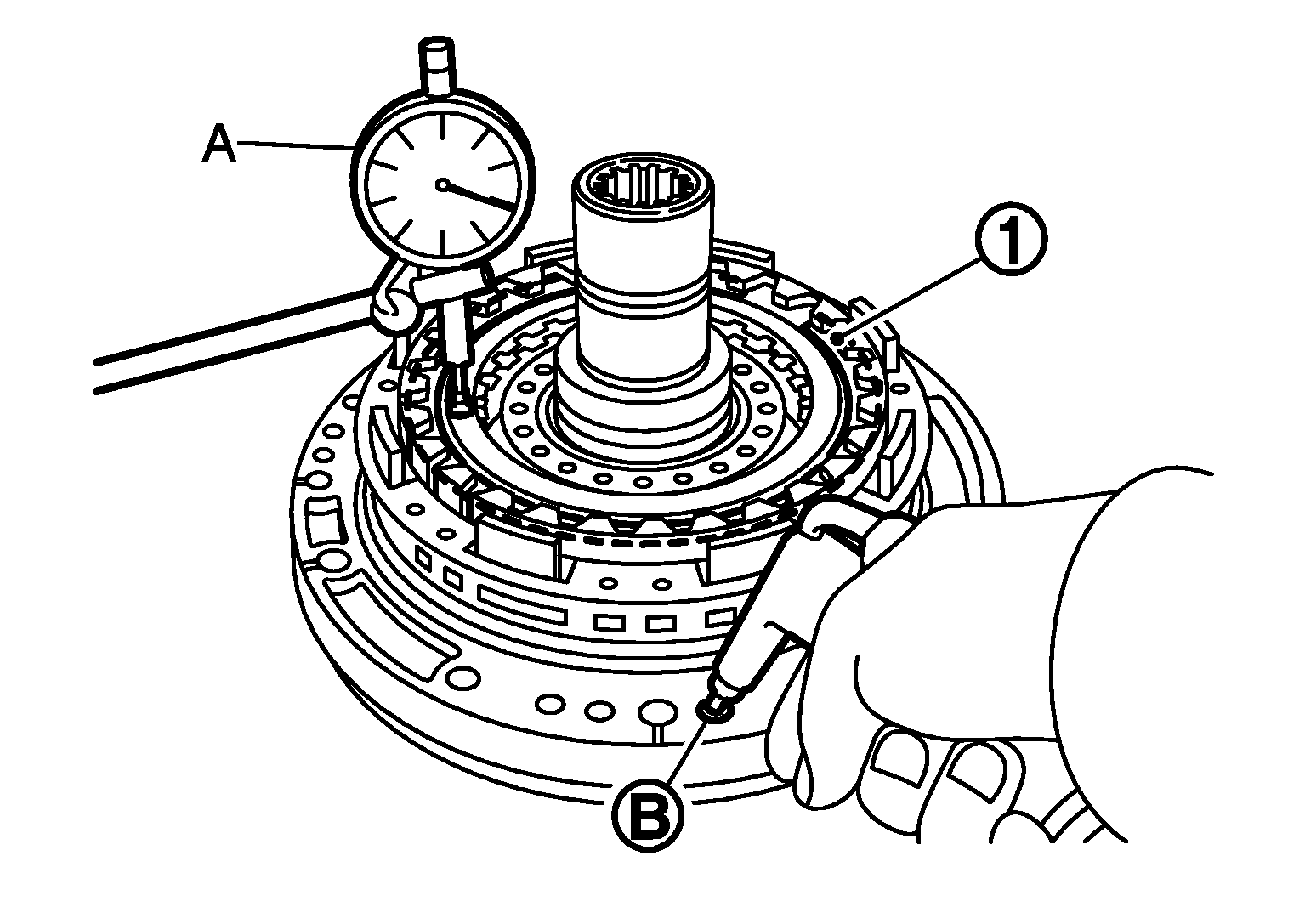

Fig 1: Measuring 2346 Brake Clearance Using Dial Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Never exceed the specified air pressure value.
