Section 61 (Automatic Transmission -- G37 Coupe)
>>
Unit Disassembly And Assembly
>>
High And Low Reverse Clutch
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

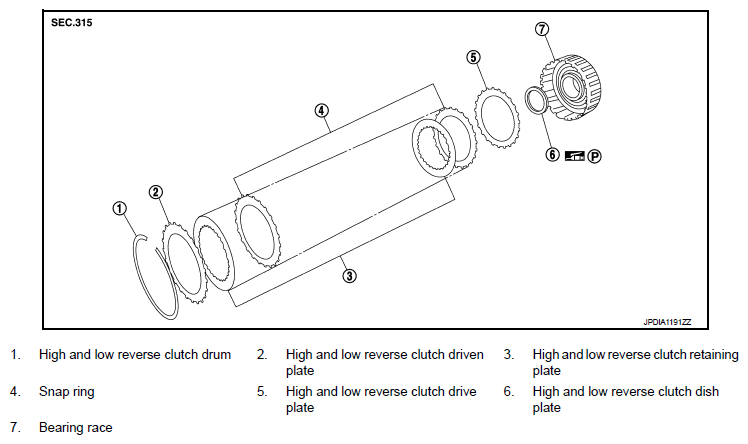

Fig 1: Exploded View Of High And Low Reverse Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
