Front Carrier, Input Clutch, Rear Internal Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Install input clutch component part (drive plates, driven plates, retaining plate, dish plate and snap ring) in input clutch drum.

Fig 1: View Of Drive Plates, Driven Plates, Retaining Plate, Dish Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Check order of plates.
Install snap ring in input clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch input clutch drum and input clutch retaining plate.
- Be careful not to damage snap ring.

  Fig 2: Installing Snap Ring To Input Clutch Drum Using Flat-Bladed Screwdriver
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing in input clutch assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 3: Installing Needle Bearing To Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring (1) and seal rings (2) in input clutch assembly.

Fig 4: Locating Input Clutch Assembly O-Ring And Seal Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

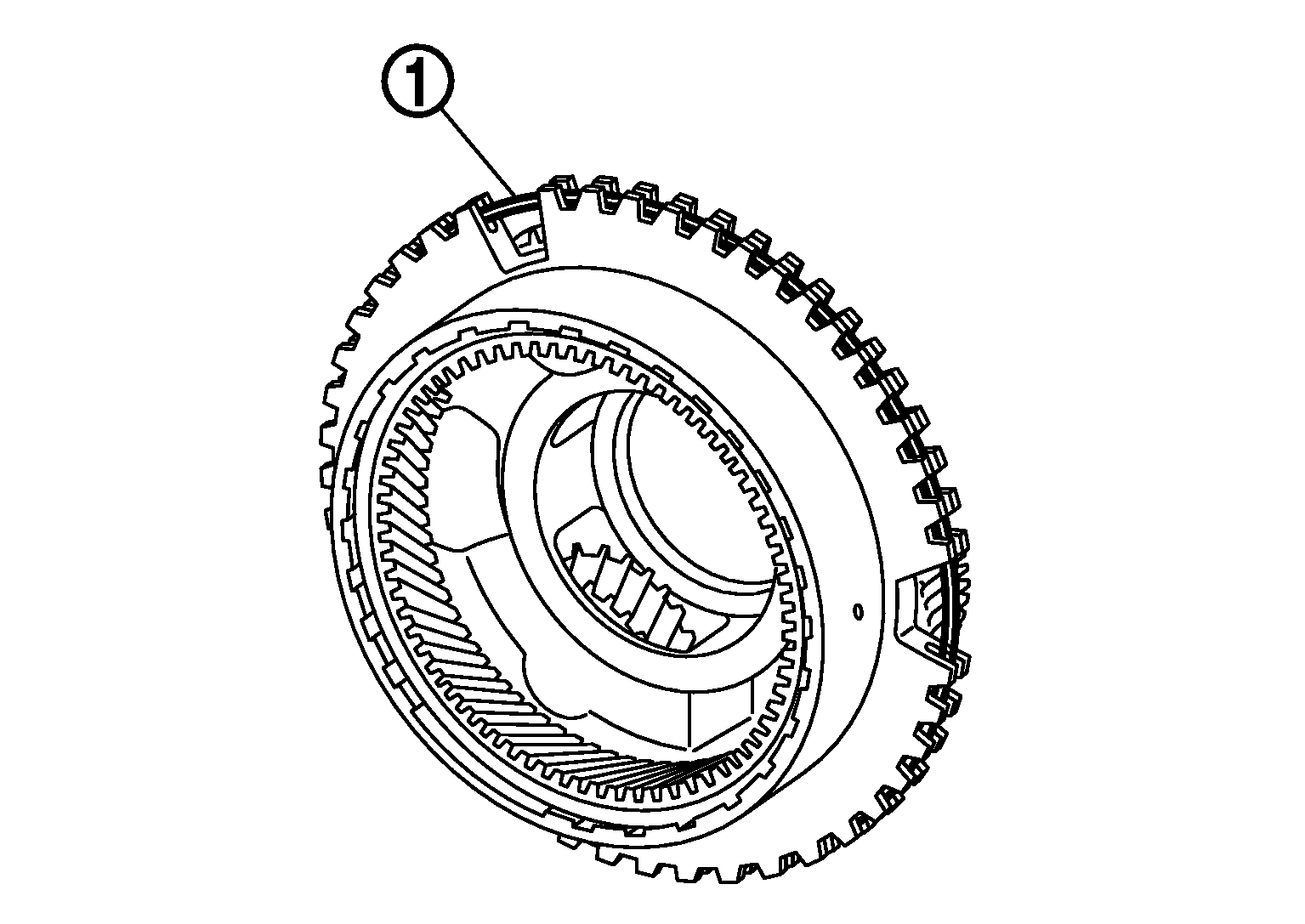

Install snap ring (1) to front carrier assembly.
CAUTION: Be careful not to expand snap ring excessively.

Fig 5: View Of Front Carrier Assembly Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

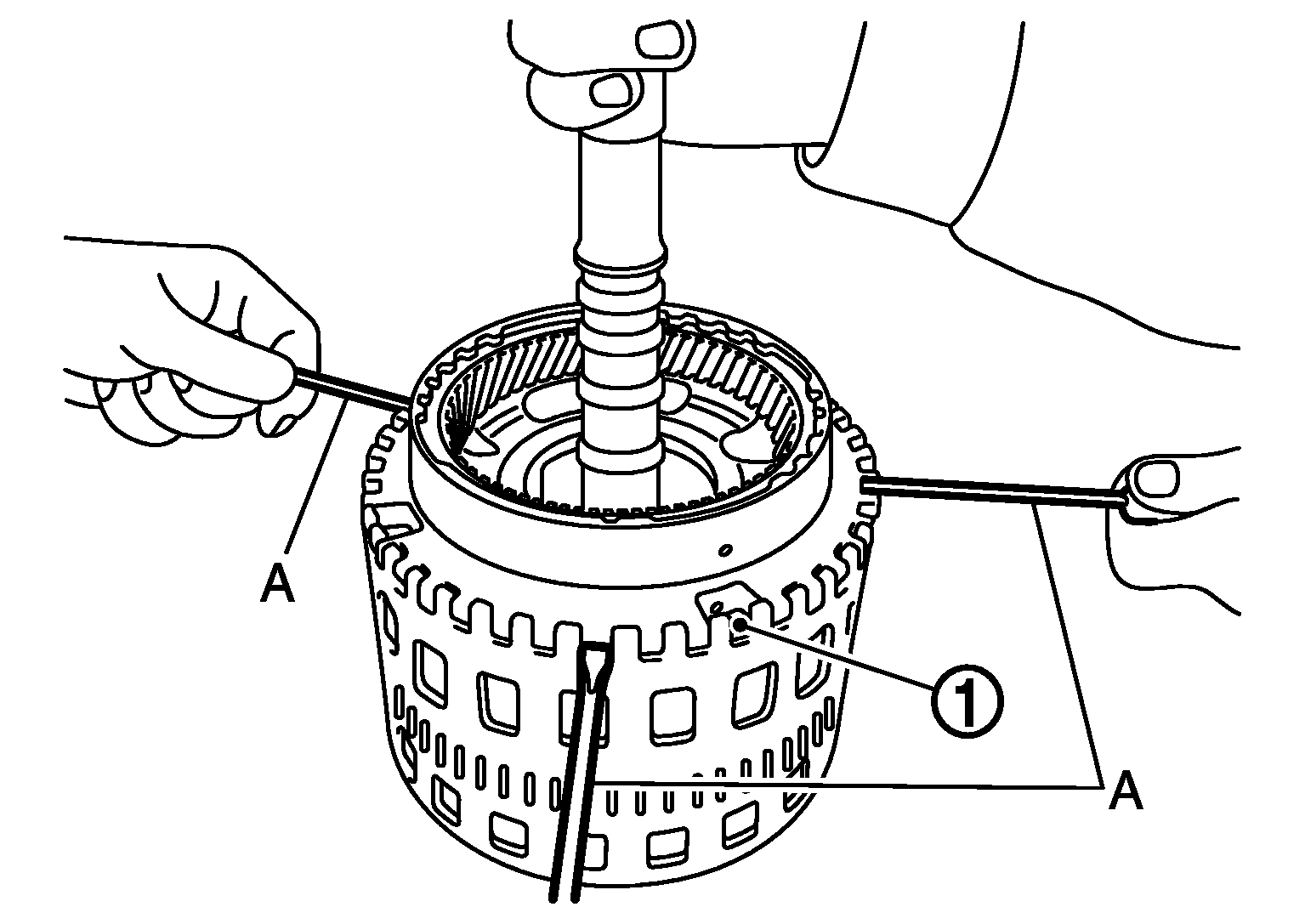

Compress snap ring (1) using flat-bladed screwdrivers (A).
CAUTION:
- Be careful not to scratch rear internal gear.
- Be careful not to damage snap ring.
Install front carrier assembly and input clutch assembly to rear internal gear.

Fig 6: Pressing Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing (1) to front carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 7: Locating Front Carrier Assembly Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
