Section 61 (Automatic Transmission -- G37 Coupe)
>>
System Description
>>
Shift Pattern Control
>>
Manual Mode
>>
MANUAL MODE : System Diagram
MANUAL MODE : System Diagram
WARNING:
This page is about a different variant/trim than selected.

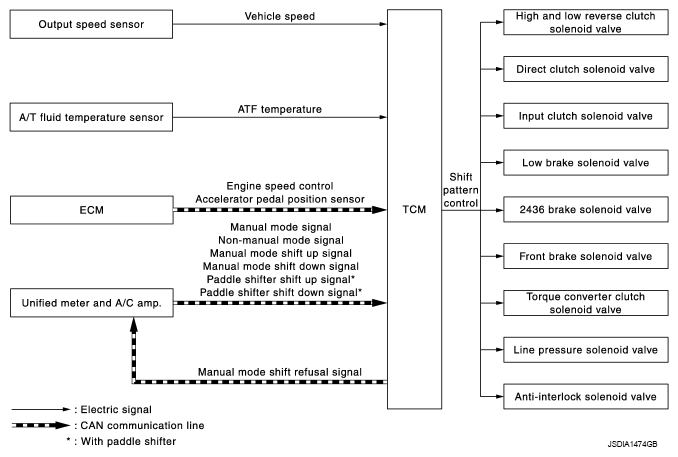

Fig 1: Adaptive Shift Control Manual Mode System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
