Section 61 (Automatic Transmission -- G37 Coupe)
>>
System Description
>>
Shift Mechanism
>>
Cross-Sectional View
>>
2WD Models
2WD Models
WARNING:
This page is about a different variant/trim than selected.

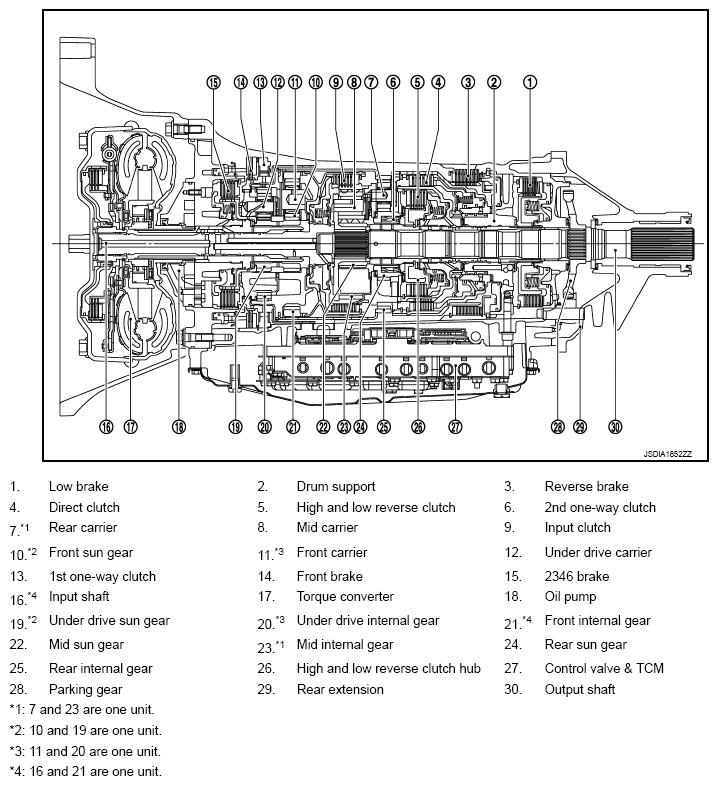

Fig 1: Identifying Shift Mechanism Cross-Sectional View (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
