Symptom Table 1

WARNING: This page is about a different variant/trim than selected.

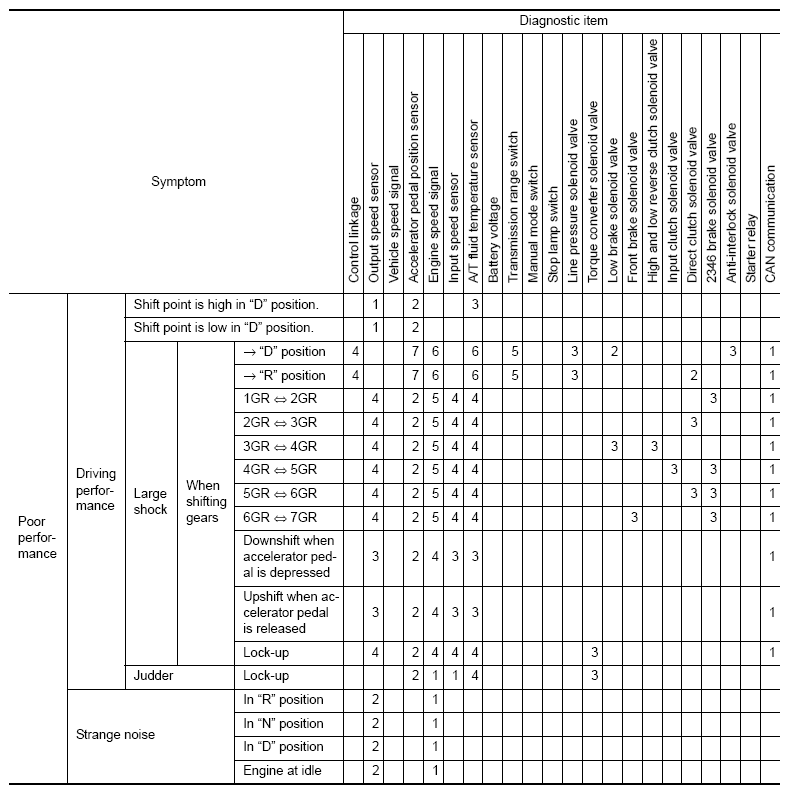

Fig 1: System Symptoms Chart - 1 (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

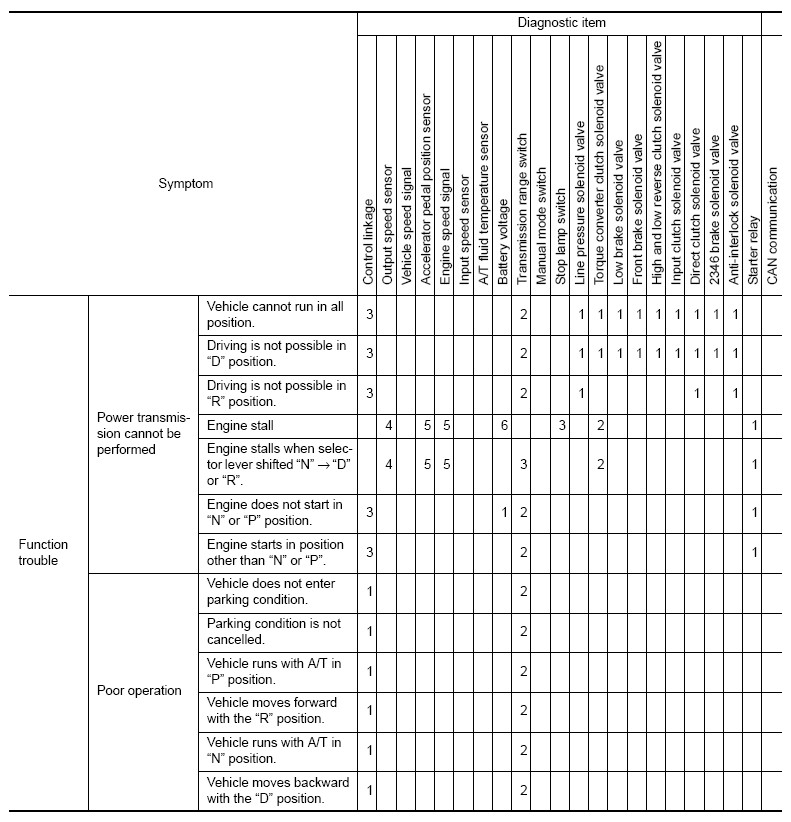

Fig 2: System Symptoms Chart - 1 (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

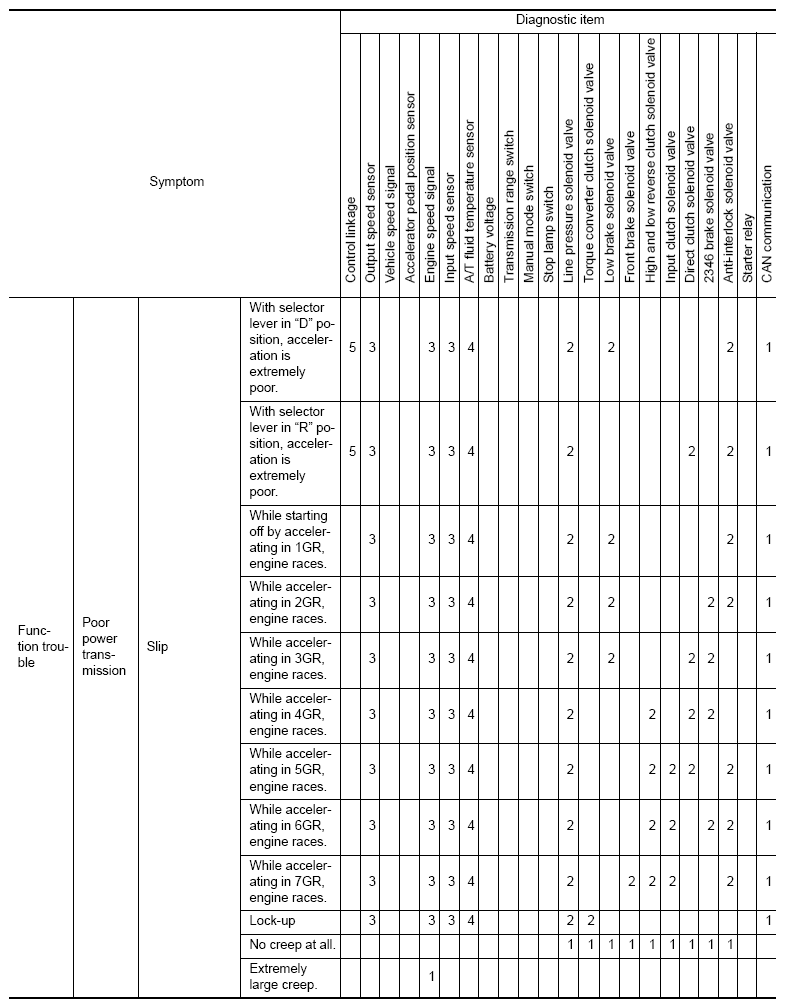

Fig 3: System Symptoms Chart - 1 (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

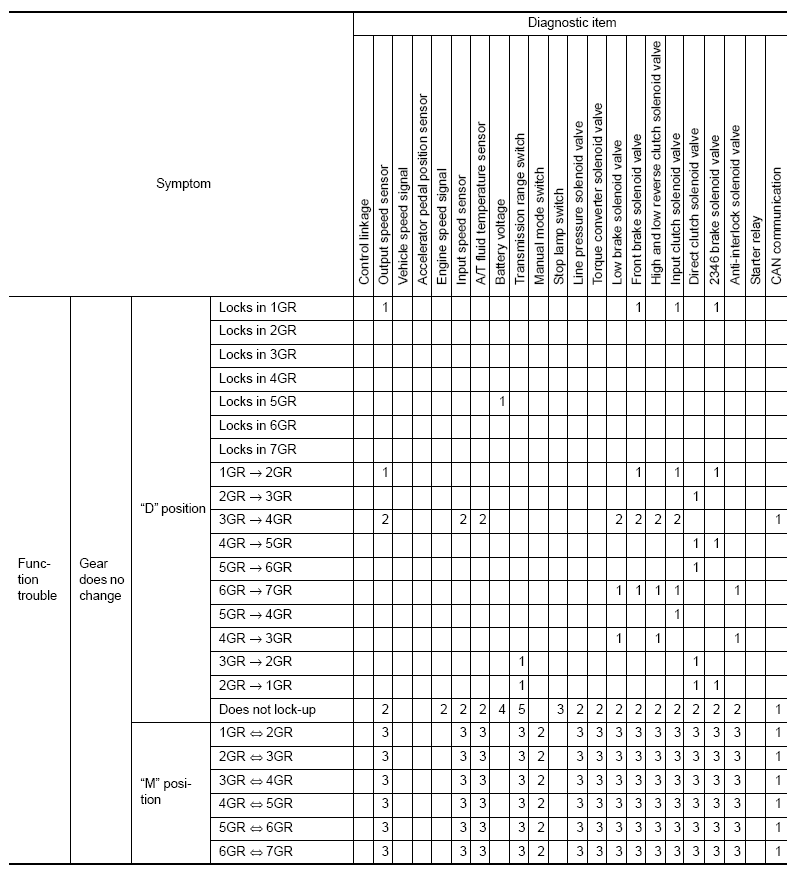

Fig 4: System Symptoms Chart - 1 (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

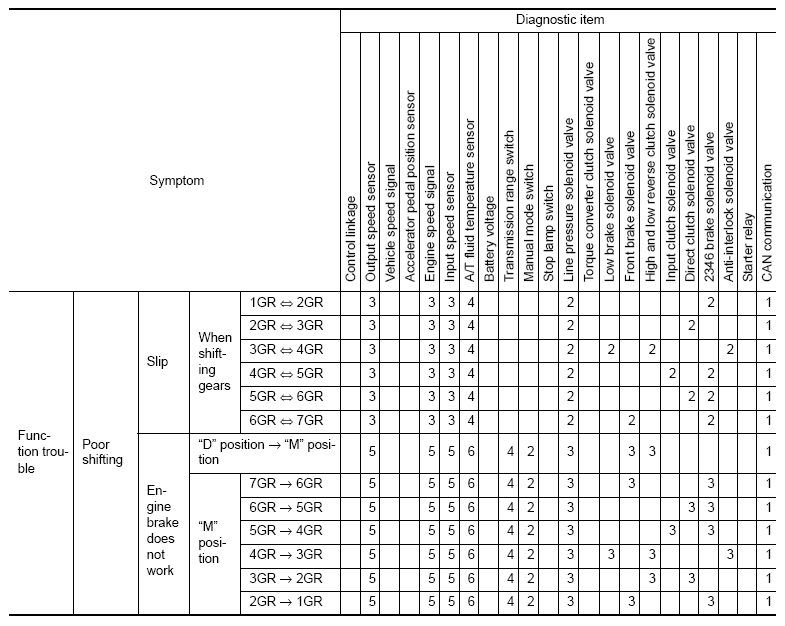

Fig 5: System Symptoms Chart - 1 (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
