2WD : Exploded View

WARNING: This page is about a different variant/trim than selected.

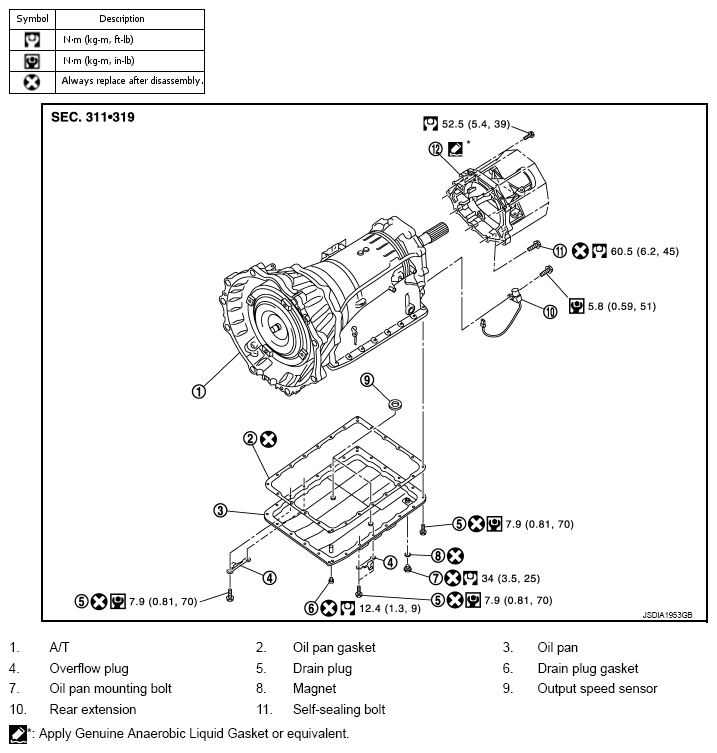

Fig 1: Exploded View Of Output Speed Sensor With Torque Specifications (2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
