AWD : Exploded View

WARNING: This page is about a different variant/trim than selected.

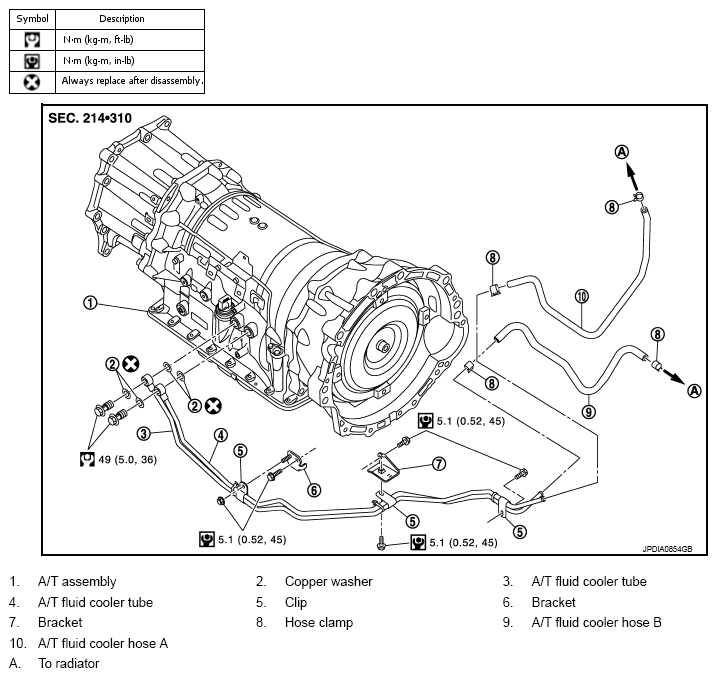

Fig 1: Exploded View Of Fluid Cooler System With Torque Specifications (AWD)
G07173960Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
