Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• Refer to the following when installing the control valve & TCM to transmission case.
  CAUTION:

  • Make sure that turbine revolution sensor securely installs input speed sensor holes (A).
  • Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve & TCM.
  • Adjust joint connector of the control valve & TCM to terminal hole of transmission case.
    Fig 1: Locating Speed Sensor Holes

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.
    Fig 2: Engaging Manual Plate Cut Out With Manual Plate Projection

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.

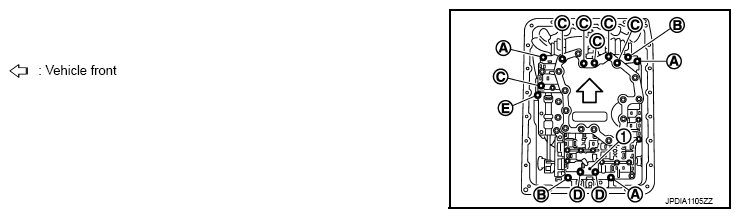

    Fig 3: Locating Control Valve And TCM Bolts And Clips

    Courtesy of NISSAN MOTOR CO., U.S.A.
    BOLT SYMBOL REFERENCE CHART



    Bolt symbol	Length mm (in)	Number of bolts
    A	43 (1.69)	3
    B	40 (1.57)	2
    C	54 (2.13)	6
    D	50 (1.97)	2
    E(1)	50 (1.97)	1
    (1) Reamer bolt

• Refer to the following when installing oil pan to transmission case.
  CAUTION:

  • Clean foreign materials (gear wear particles) that adhere on the inside of the oil pan and on the magnet, and then assembly.
  • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface of transmission case and oil pan.
  • Never reuse oil pan gasket and oil pan mounting bolts.
  • Install oil pan gasket in the direction to align hole position.
  • Tighten the oil pan mounting bolts to the specified torque in the numerical order as shown in the figure after temporarily tightening them.
    Fig 4: Oil Pan Mounting Bolts Tightening Sequence

    Courtesy of NISSAN MOTOR CO., U.S.A.
