Section 61 (Automatic Transmission -- G37 Coupe)
>>
Removal And Installation
>>
Air Breather Hose
>>
2WD
>>
2WD : Exploded View
2WD : Exploded View
WARNING:
This page is about a different variant/trim than selected.

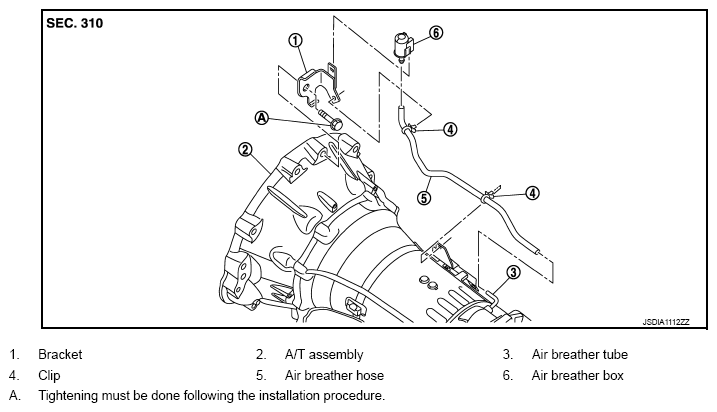

Fig 1: Exploded View Of Air Breather Hose (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
