Wiring Diagram - A/T CONTROL SYSTEM -

WARNING: This page is about a different variant/trim than selected.

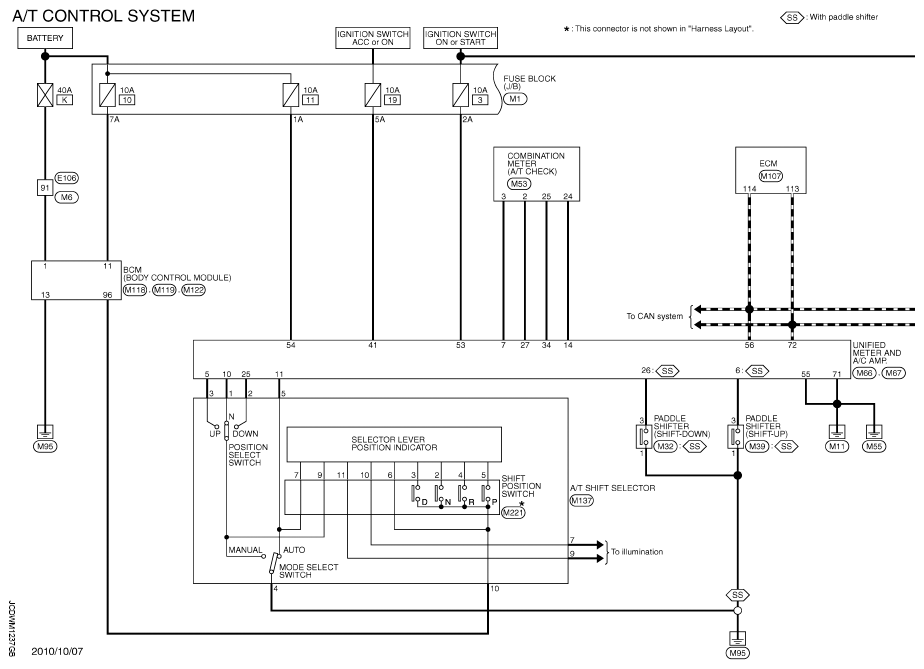

Fig 1: A/T Control System Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

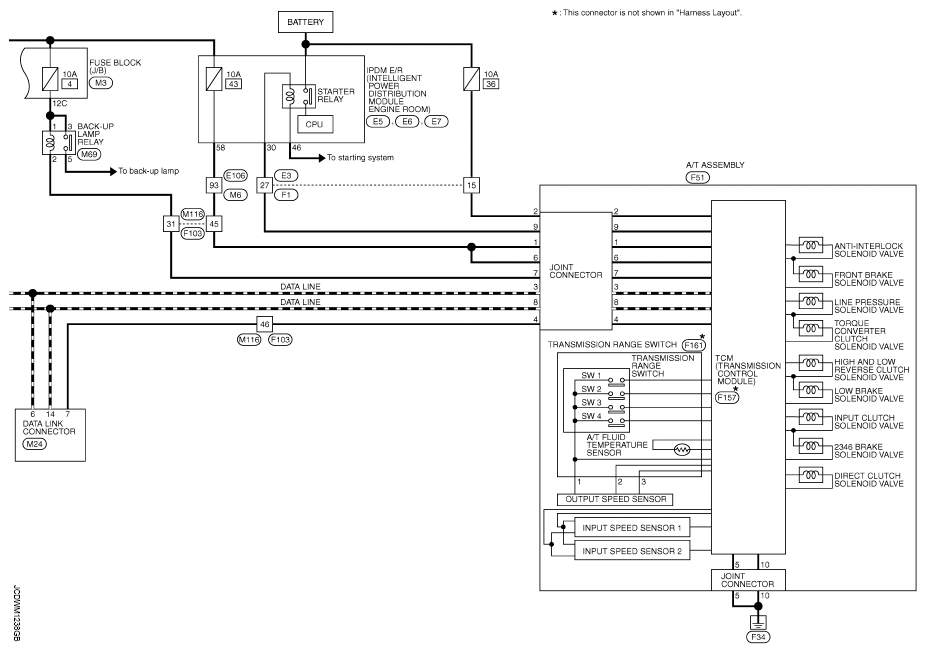

Fig 2: A/T Control System Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

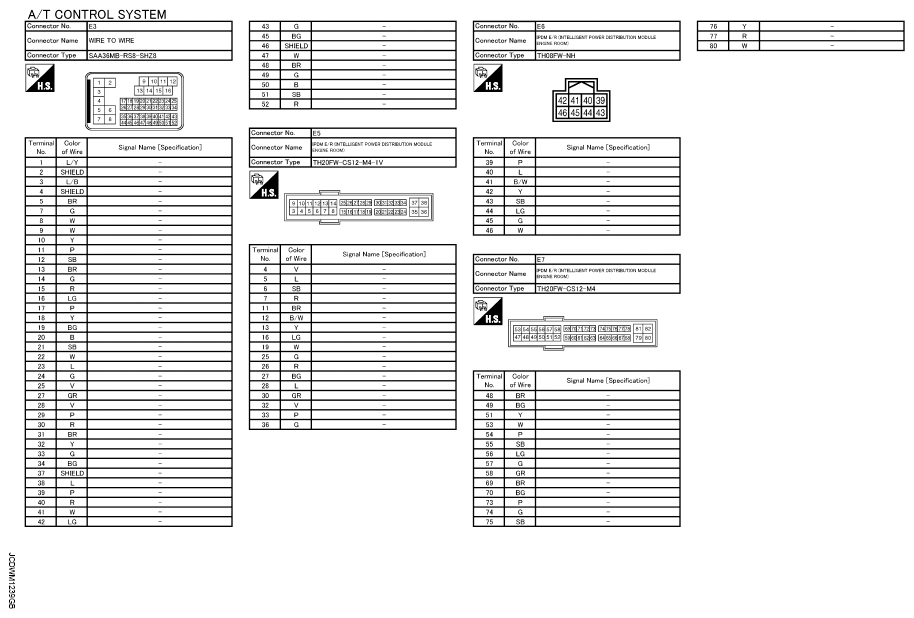

Fig 3: Identifying A/T Control System Connector End Views (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

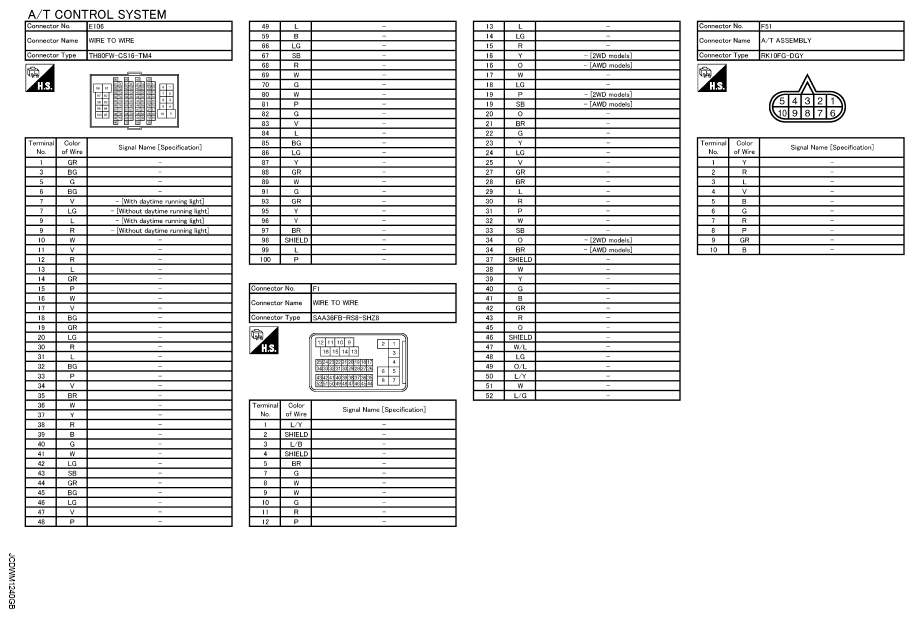

Fig 4: A/T Control System Connector End Views (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

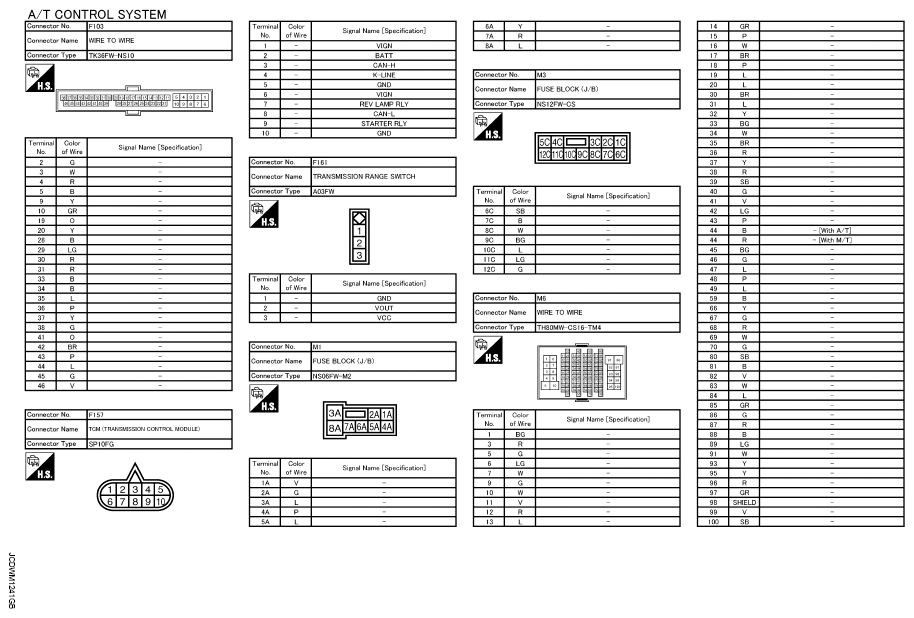

Fig 5: A/T Control System Connector End Views (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

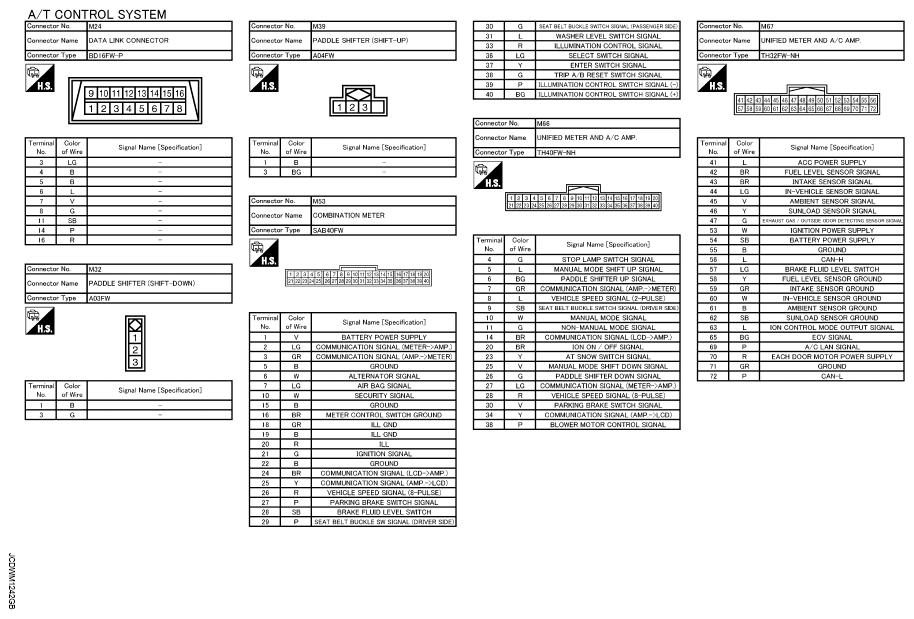

Fig 6: A/T Control System Connector End Views (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

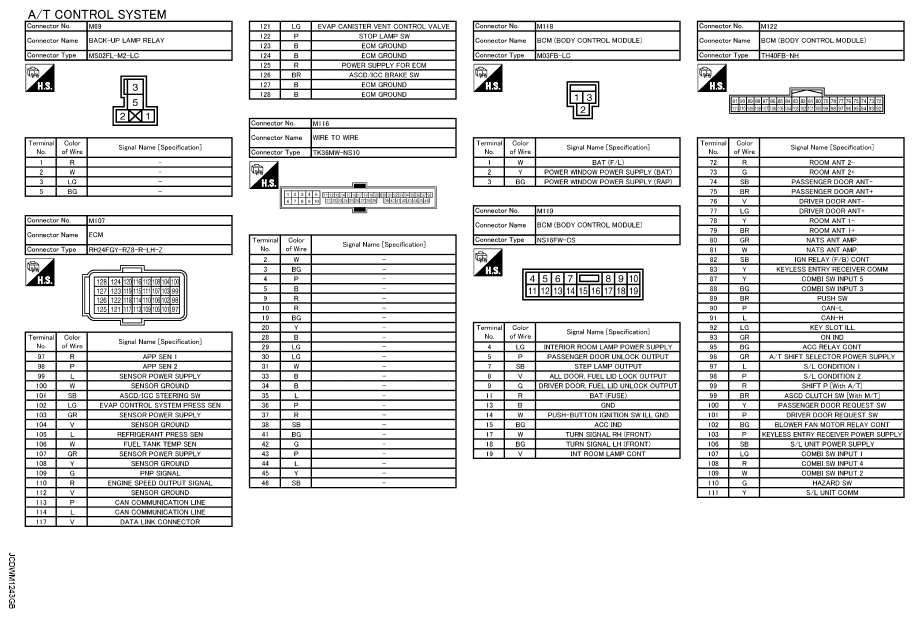

Fig 7: A/T Control System Connector End Views (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

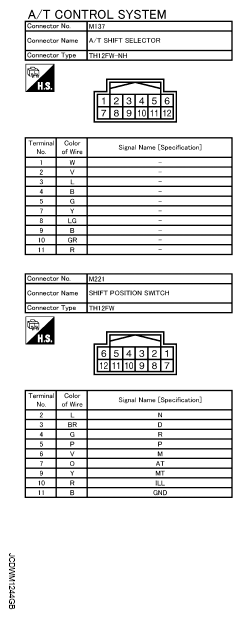

Fig 8: A/T Control System Connector End Views (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
