Wiring Diagram - A/T SHIFT LOCK SYSTEM -

WARNING: This page is about a different variant/trim than selected.

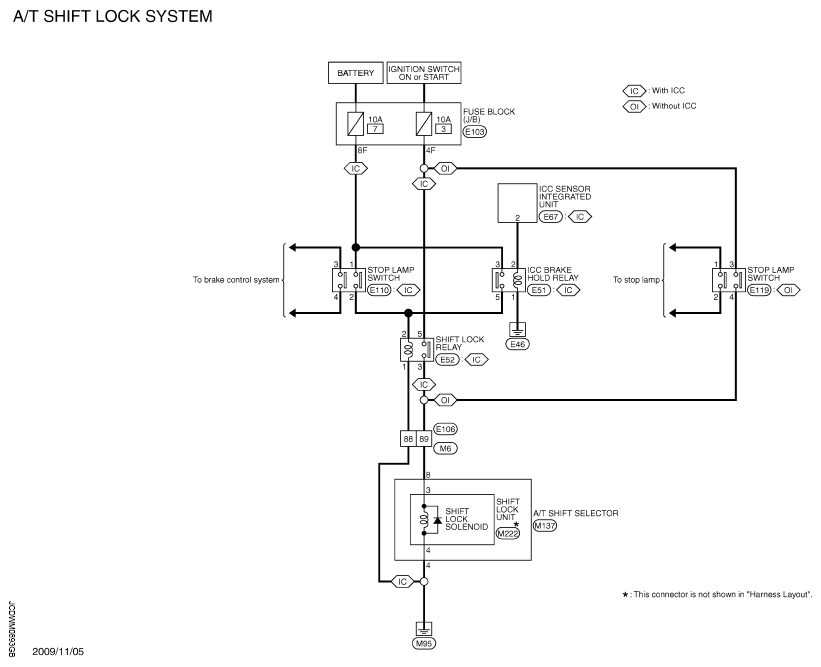

Fig 1: A/T Shift Lock System Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

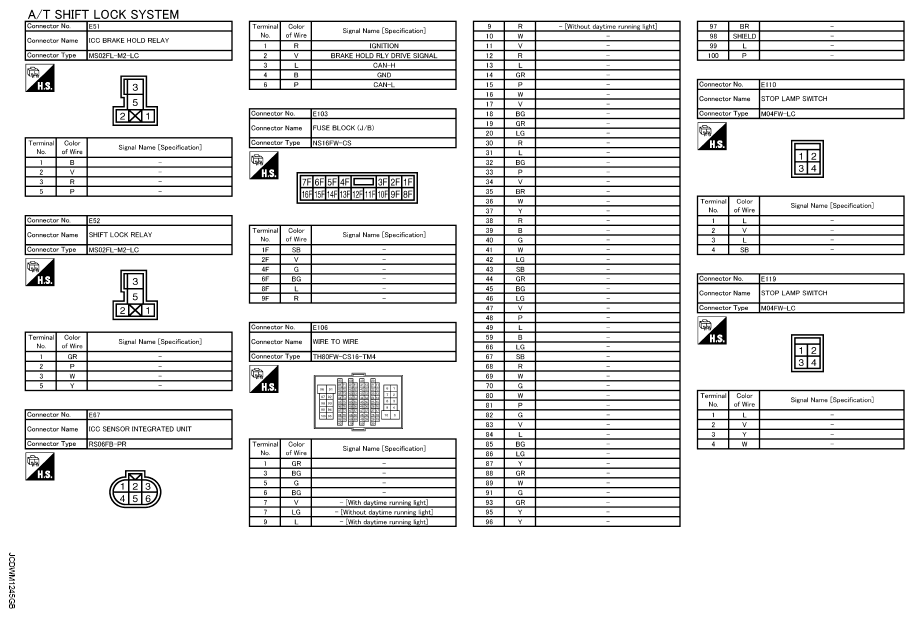

Fig 2: Identifying A/T Shift Lock System Connector End Views (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

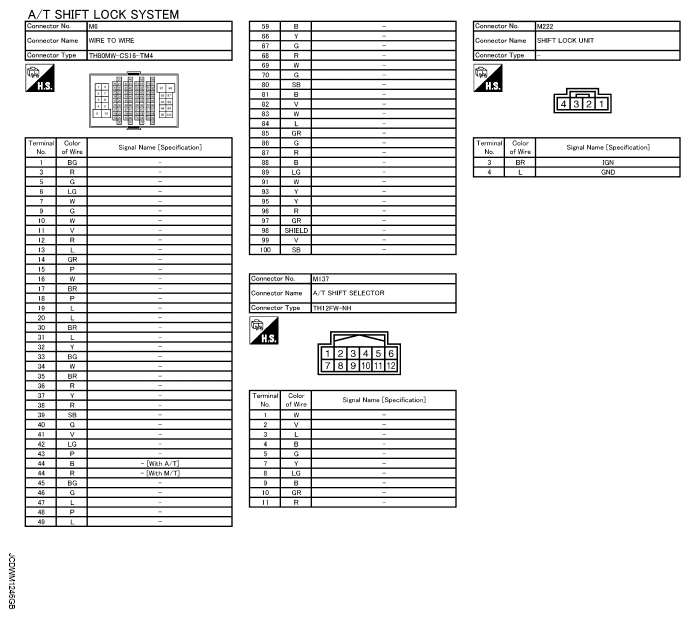

Fig 3: Identifying A/T Shift Lock System Connector End Views (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
