G37 IPL, Standard
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Starting System -- G37 Coupe
>>
DTC/Circuit Diagnosis
>>
Starting System
>>
Wiring Diagram - STARTING SYSTEM -
Wiring Diagram - STARTING SYSTEM -

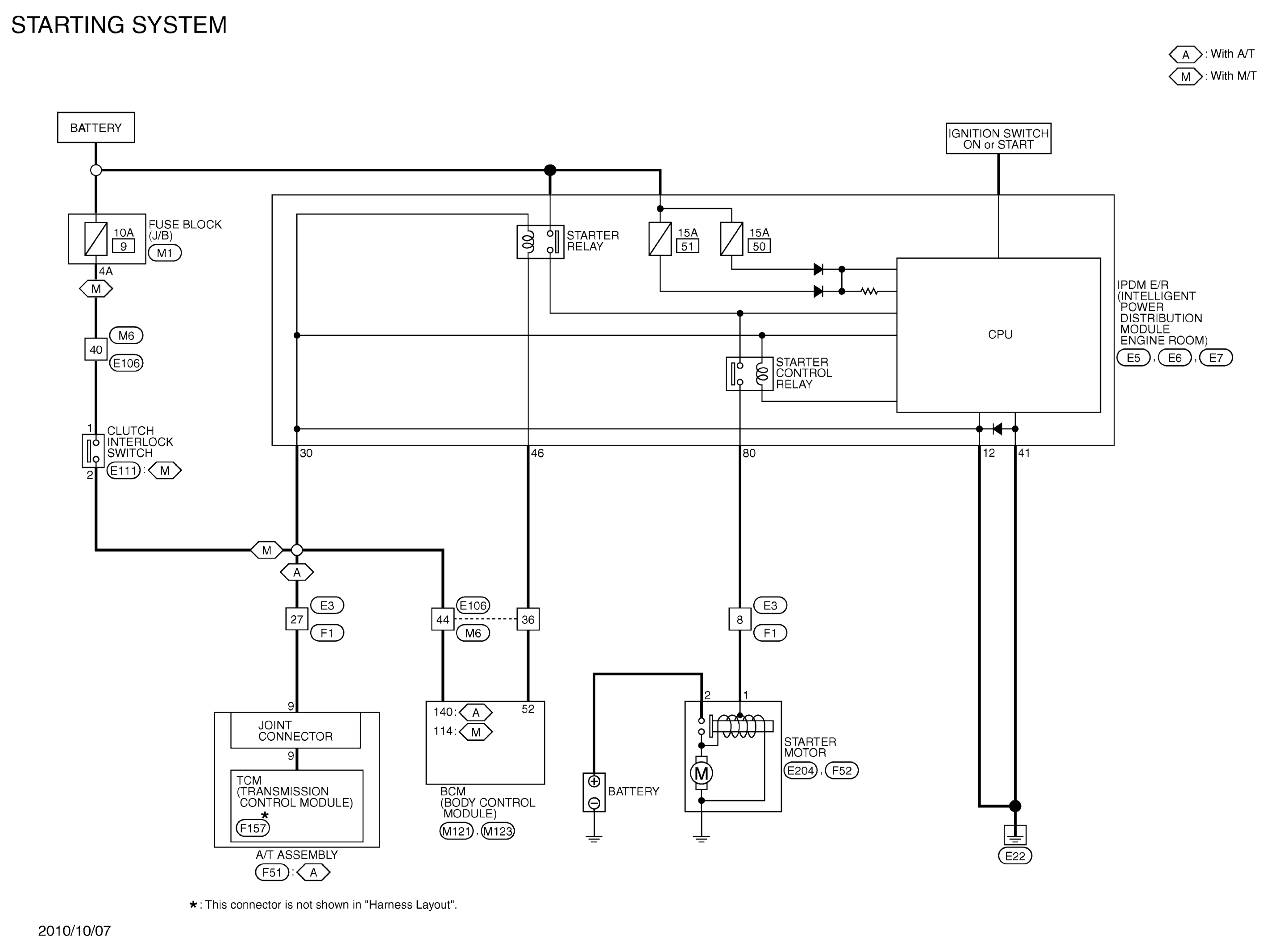

Fig 1: Starting System Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

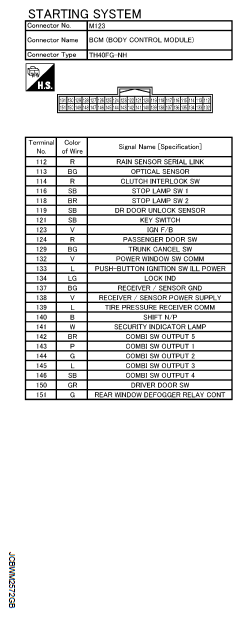

Fig 2: Identifying Starting System Connectors Terminal Identification (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

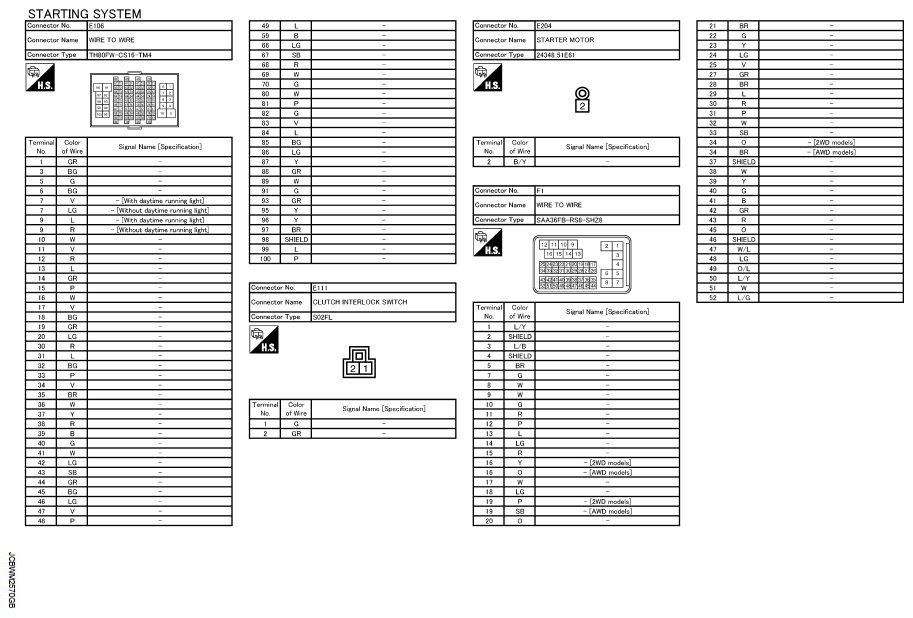

Fig 3: Identifying Starting System Connectors Terminal Identification (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

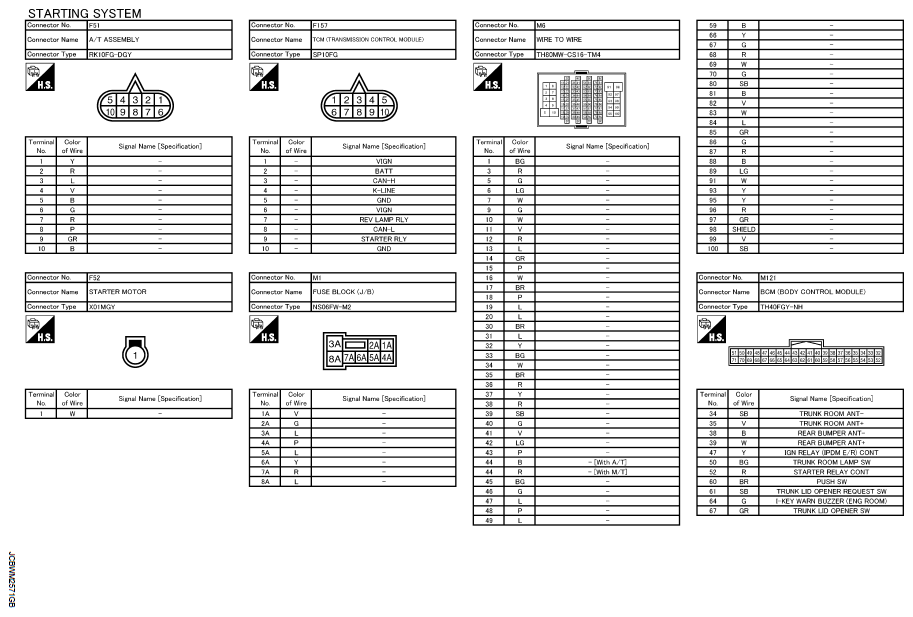

Fig 4: Identifying Starting System Connectors Terminal Identification (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

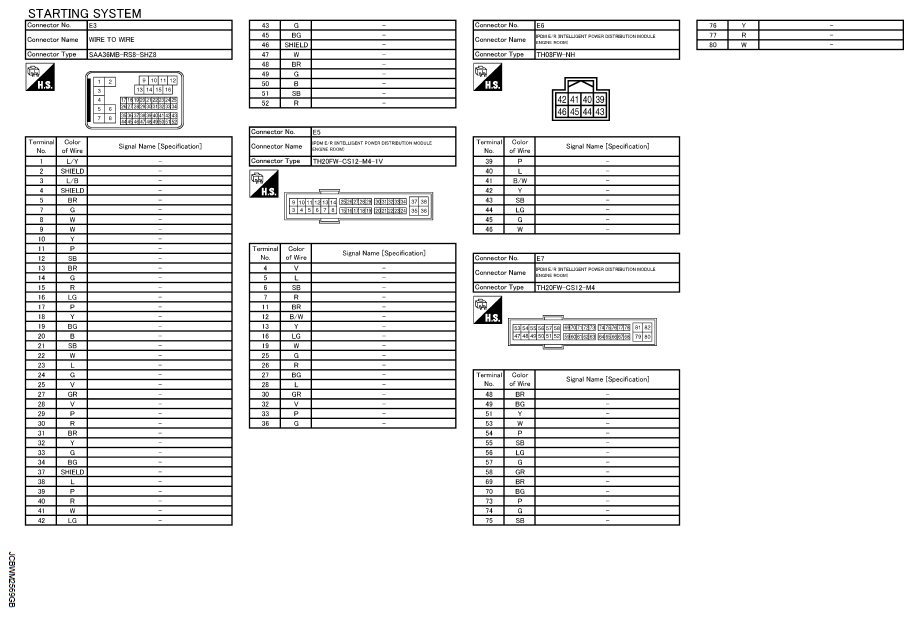

Fig 5: Identifying Starting System Connectors Terminal Identification (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
