AWD : Exploded View

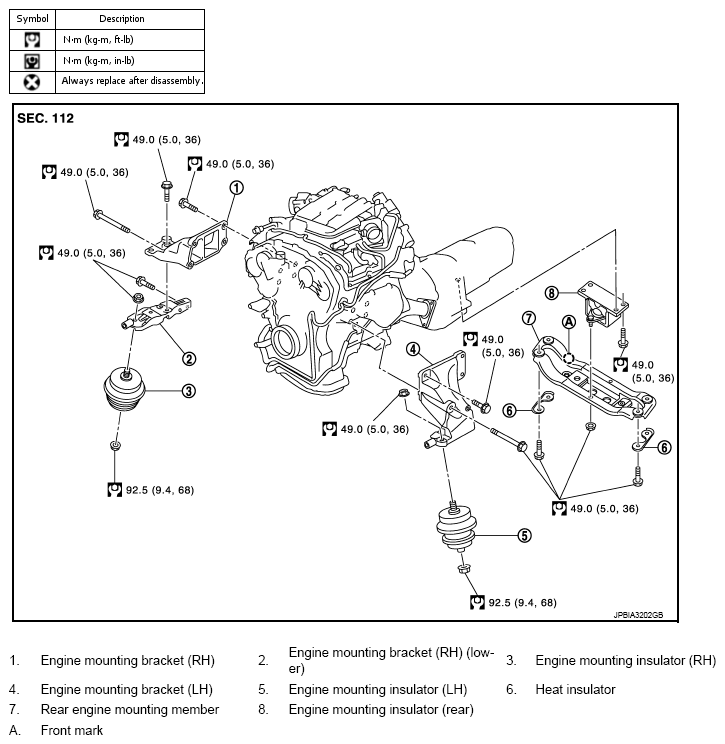

Fig 1: Exploded View Of Engine Assembly With Torque Specifications - AWD

G07171743

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in illustration.
