Exploded View (2WD)

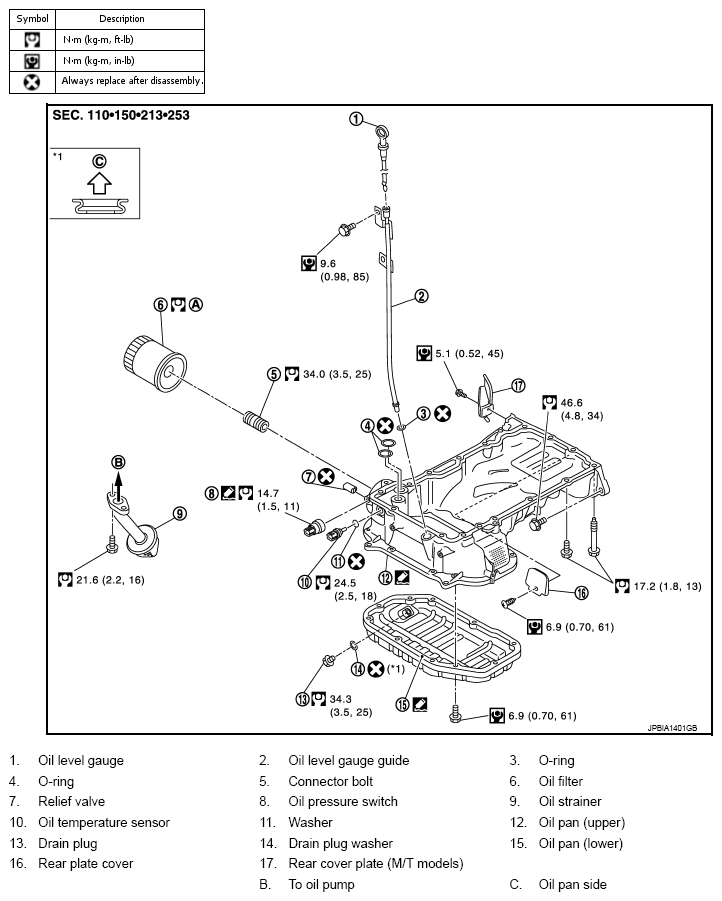

Fig 1: Exploded View Of Oil Pan (Lower) With Torque Specifications - 2WD

G07171673

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in illustration.
