Exploded View

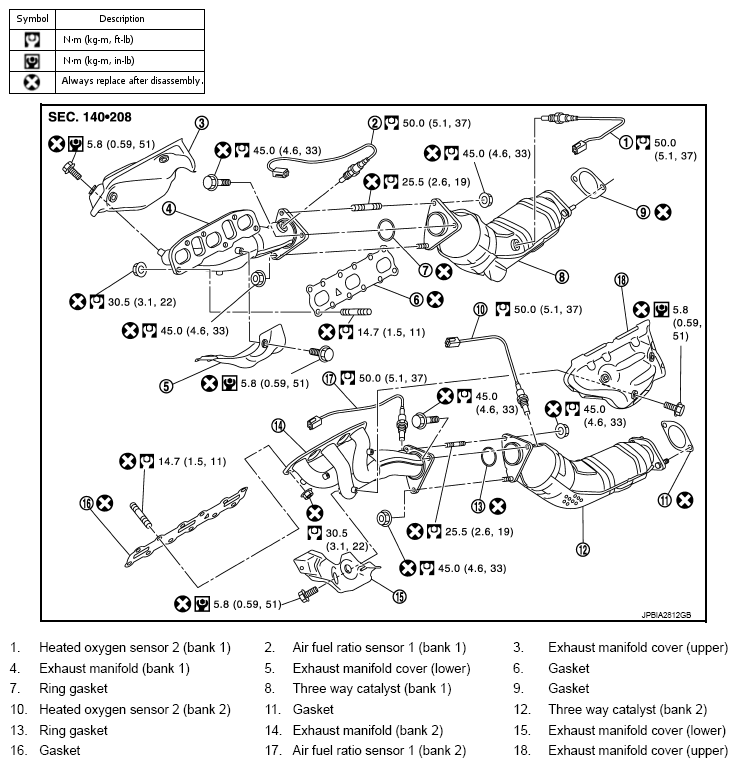

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications

G07171653

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in illustration.
