Engine Mechanical -- G37 Coupe
>>
Removal And Installation
>>
Air Cleaner And Air Duct
>>
Exploded View
Exploded View

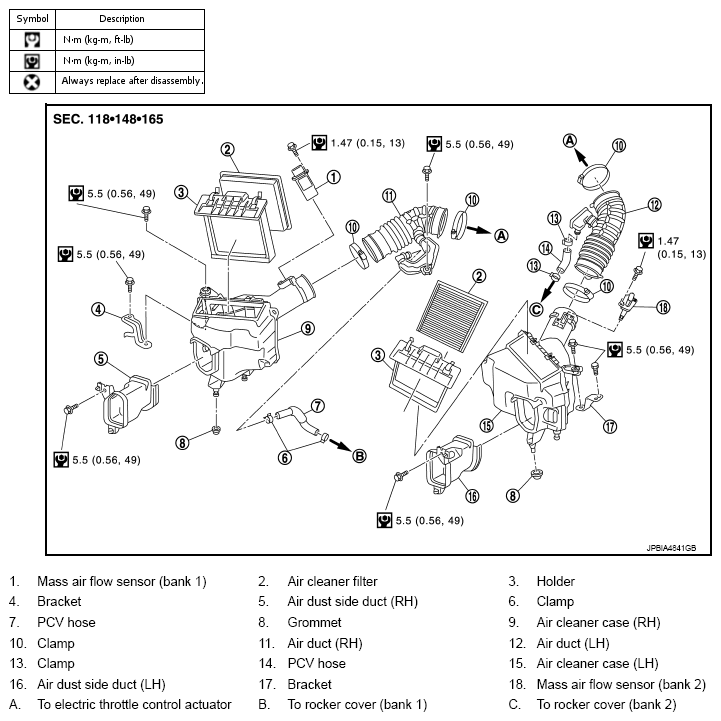

Fig 1: Exploded View Of Air Cleaner And Air Duct
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in illustration.
