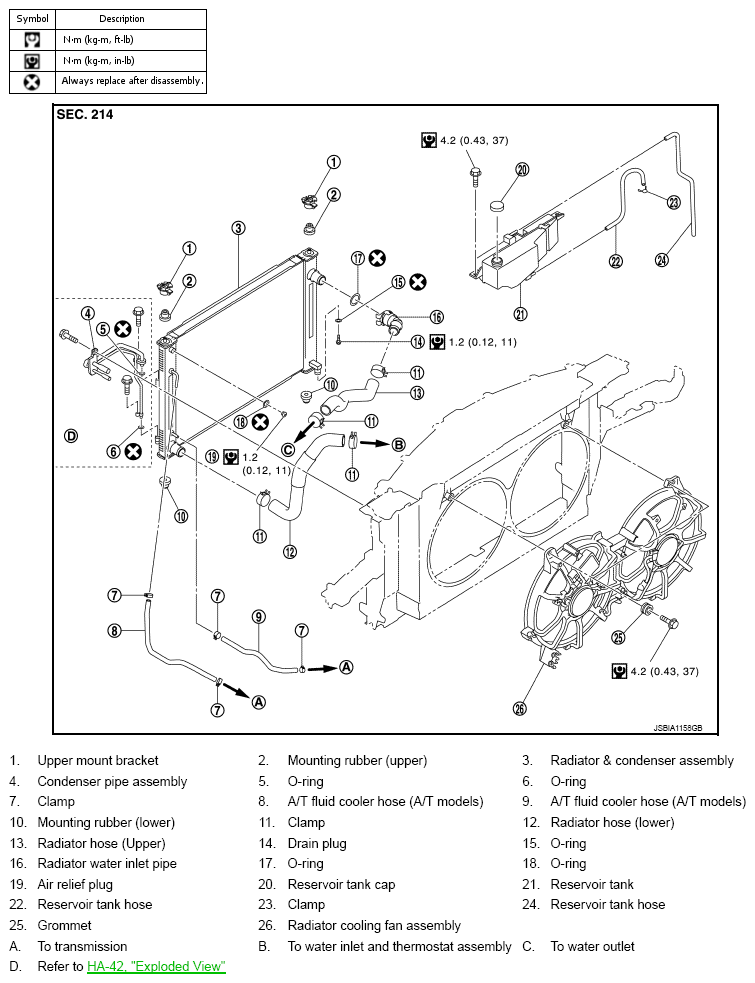

Home >> Infiniti >> 2011 >> G37 IPL, Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System -- G37 Coupe >> Removal And Installation >> Radiator >> Exploded View
