Removal And Installation: Battery: Location

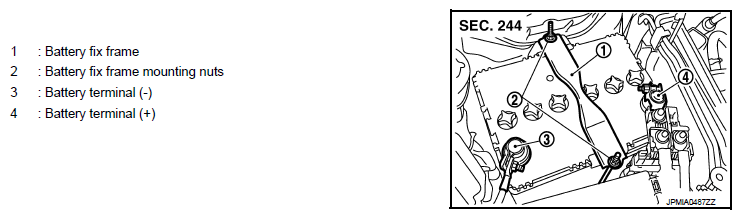

Fig 1: Locating Battery Fix Frame, And Battery Terminals With Mounting Bolts

G07172440

Courtesy of NISSAN MOTOR CO., U.S.A.
