Removal and Installation: Removal

  1. Remove battery cover.
  2. Disconnect the battery cable from the negative terminal.
  3. Remove cover of battery positive terminal.
  4. Remove harness mounting nuts (1) to disconnect harness connector (2).
  5. Remove fusible link holder mounting nut (3) to remove battery terminal with fusible link (4).

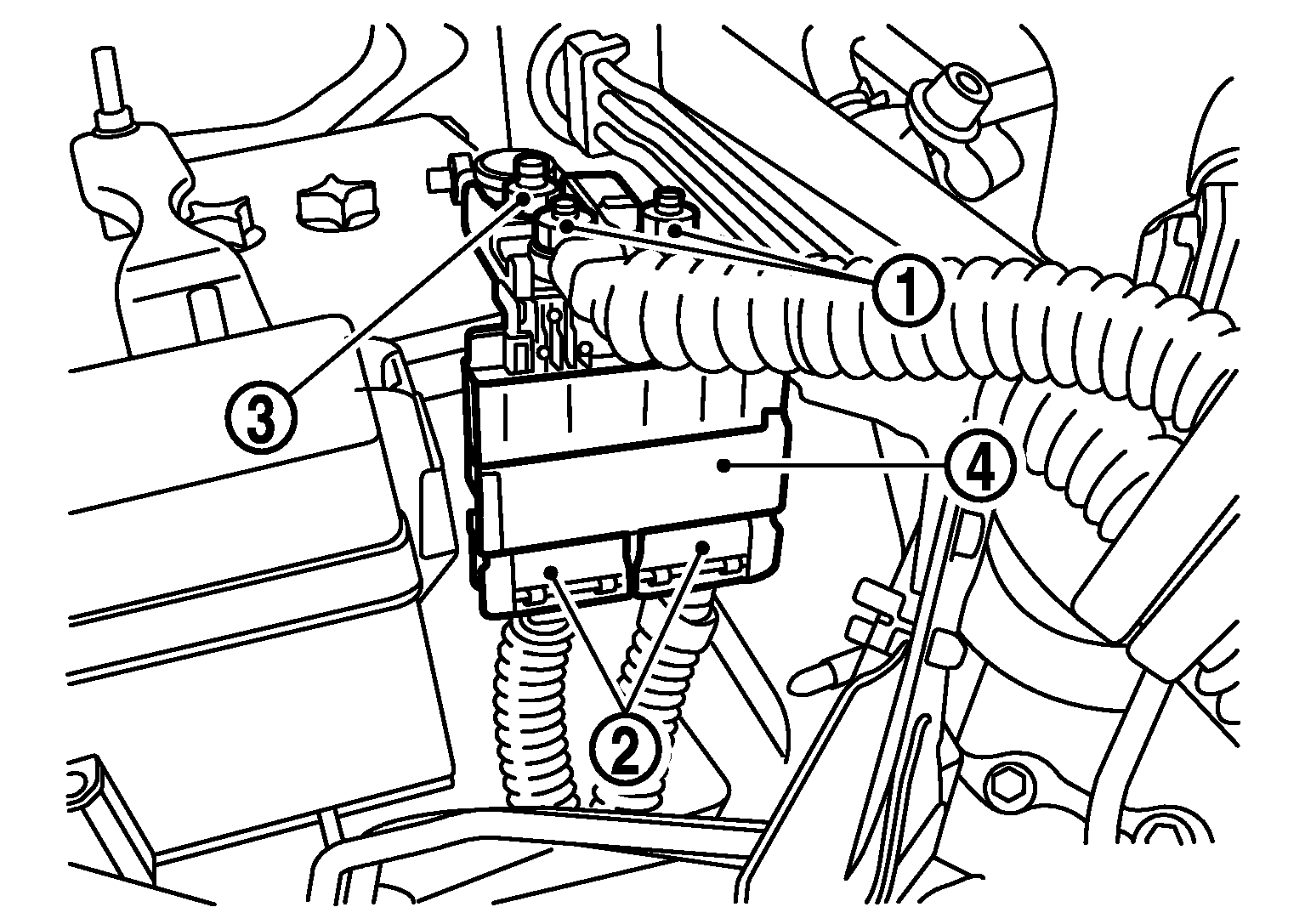

Fig 1: Locating Harness Mounting Nuts, Harness Connector And Fusible Link Holder With Mounting Nut
G05737748Courtesy of NISSAN MOTOR CO., U.S.A.
