Battery Terminal With Fusible Link: Location

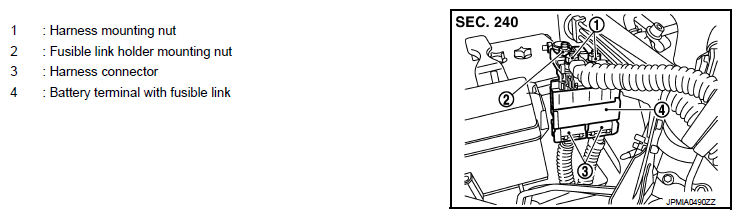

Fig 1: Locating Battery Terminal With Fusible Link, Harness Mounting Nut, Harness Connector And Fusible Link Holder Mounting Nut
G07172443Courtesy of NISSAN MOTOR CO., U.S.A.
