G37 IPL, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements -- Coupe
>>
DTC/Circuit Diagnosis
>>
Power Supply Routing Circuit
>>
Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 44 -
>>
IGNITION POWER SUPPLY FUSE No. 44
IGNITION POWER SUPPLY FUSE No. 44

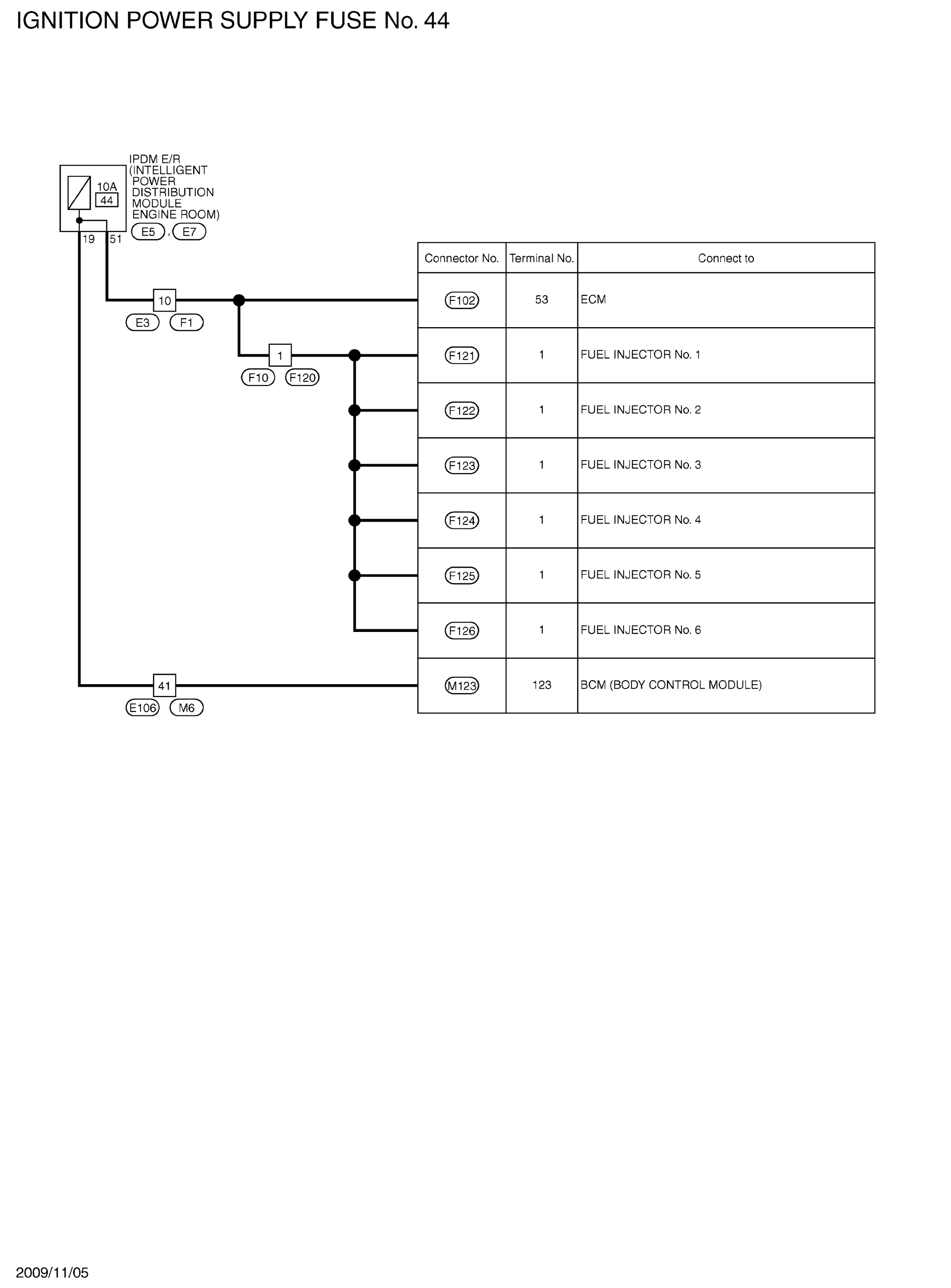

Fig 1: Ignition Power Supply Fuse No. 44 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

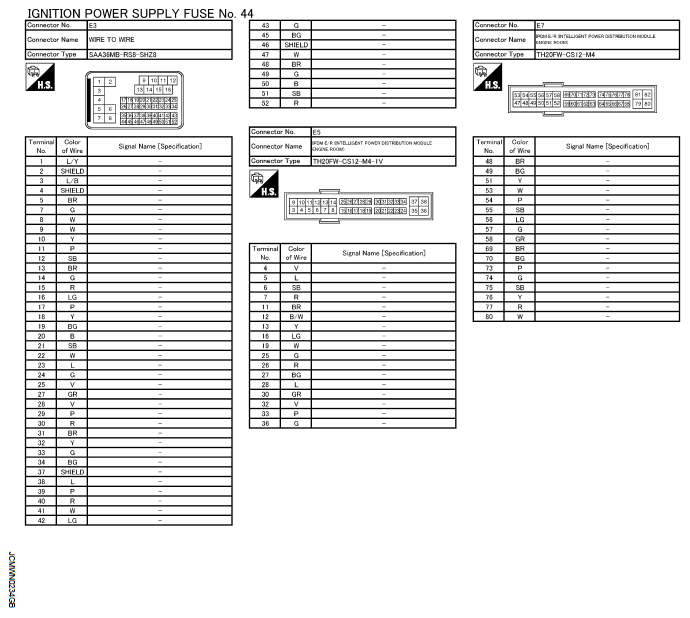

Fig 2: Identifying Ignition Power Supply Fuse No. 44 Connectors Terminal Identification (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

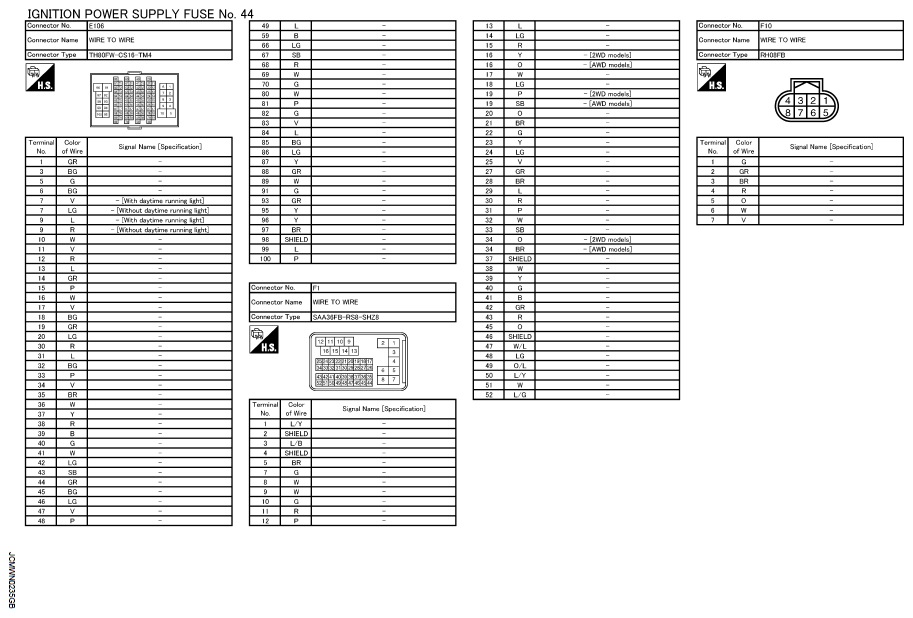

Fig 3: Identifying Ignition Power Supply Fuse No. 44 Connectors Terminal Identification (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

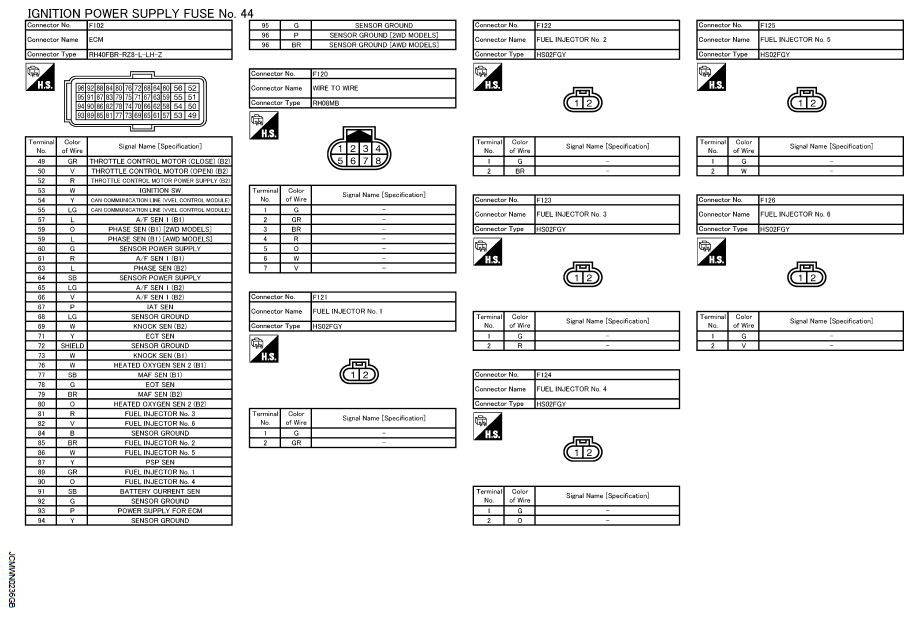

Fig 4: Identifying Ignition Power Supply Fuse No. 44 Connectors Terminal Identification (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

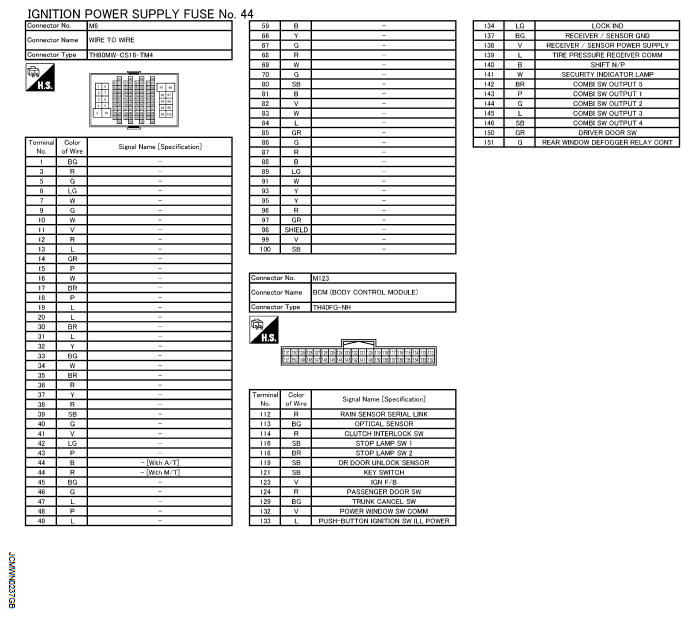

Fig 5: Identifying Ignition Power Supply Fuse No. 44 Connectors Terminal Identification (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
