G37 IPL, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements -- Coupe
>>
DTC/Circuit Diagnosis
>>
Power Supply Routing Circuit
>>
Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 4 -
>>
IGNITION POWER SUPPLY FUSE No. 4
IGNITION POWER SUPPLY FUSE No. 4

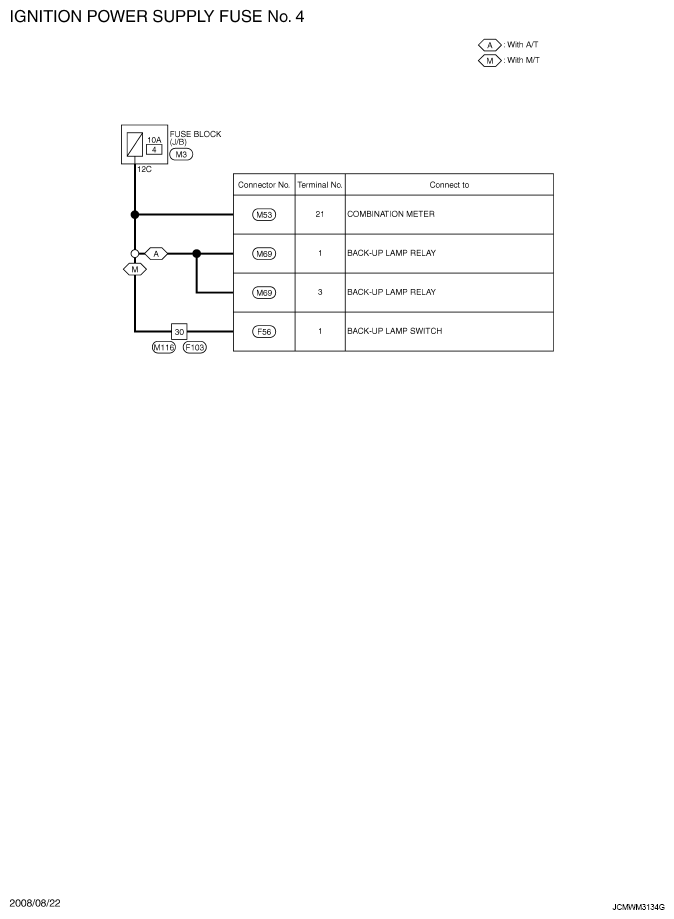

Fig 1: Ignition Power Supply Fuse No. 4 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

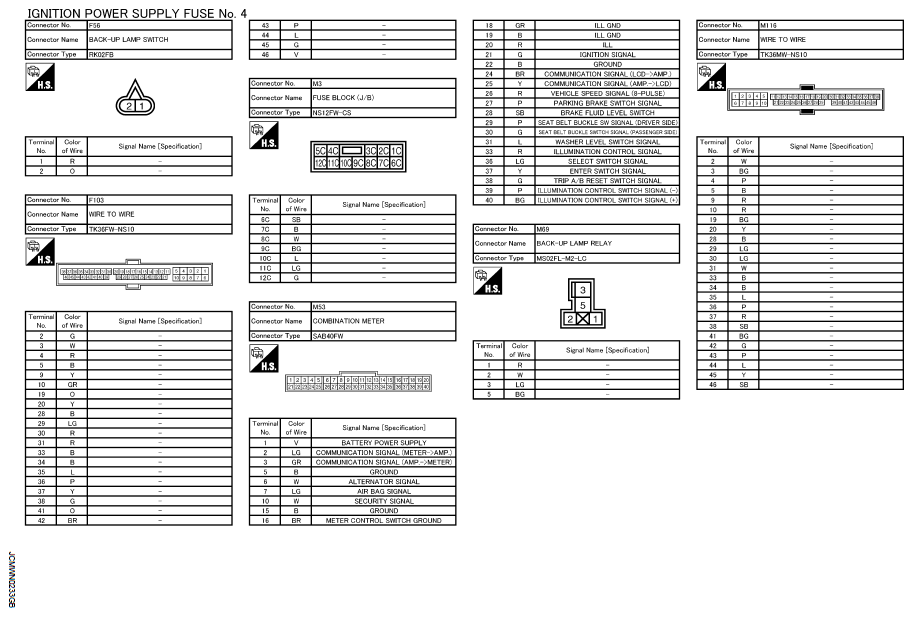

Fig 2: Identifying Ignition Power Supply Fuse No. 4 Connectors Terminal Identification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
